Exhaust System: Components

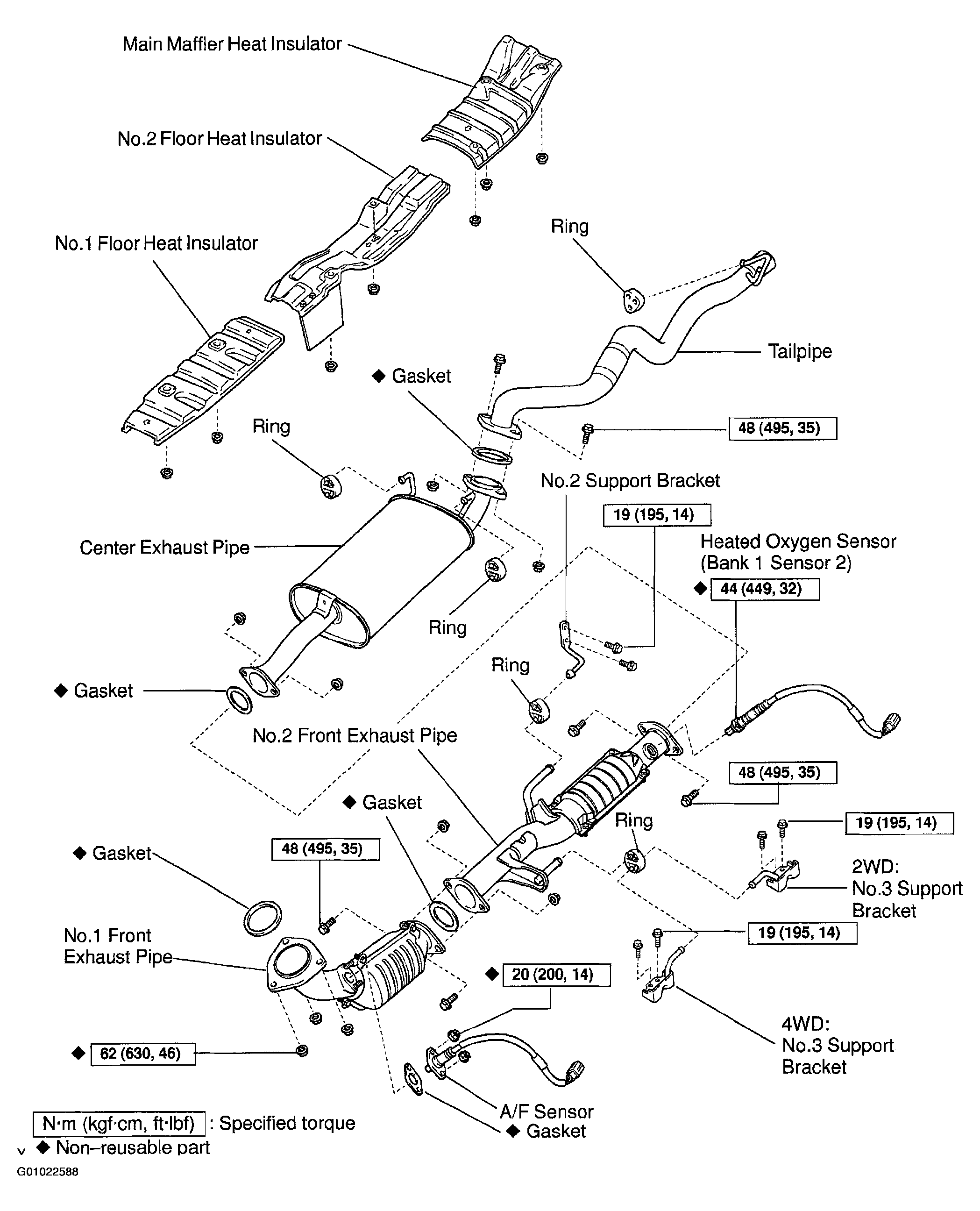

Fig 1: Displaying Exhaust System Components

G01022588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
