Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1.

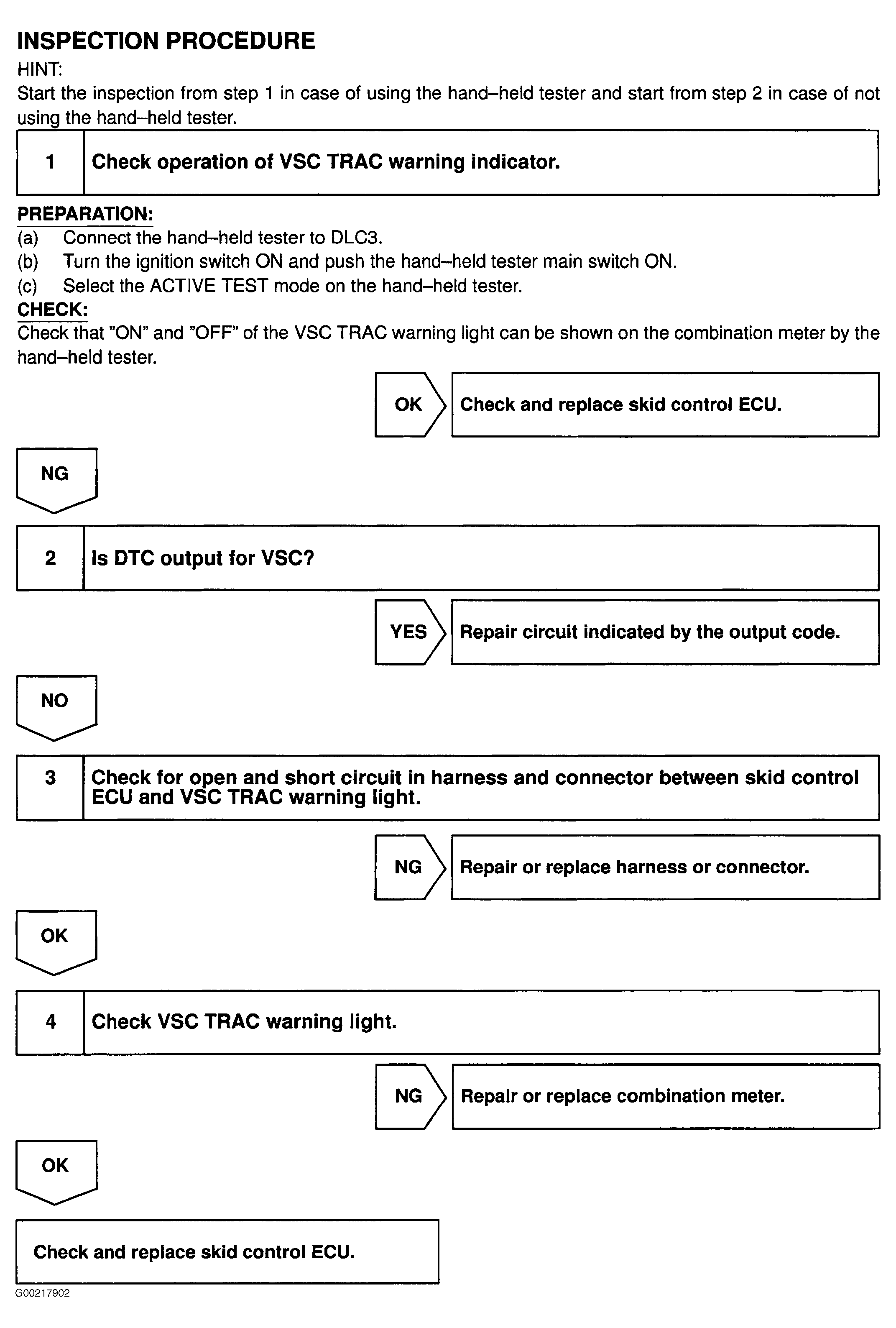

Fig 1: Testing Procedures VSC TRAC Warning Light Circuit

G00217902

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
