Front Shock Absorber: Components

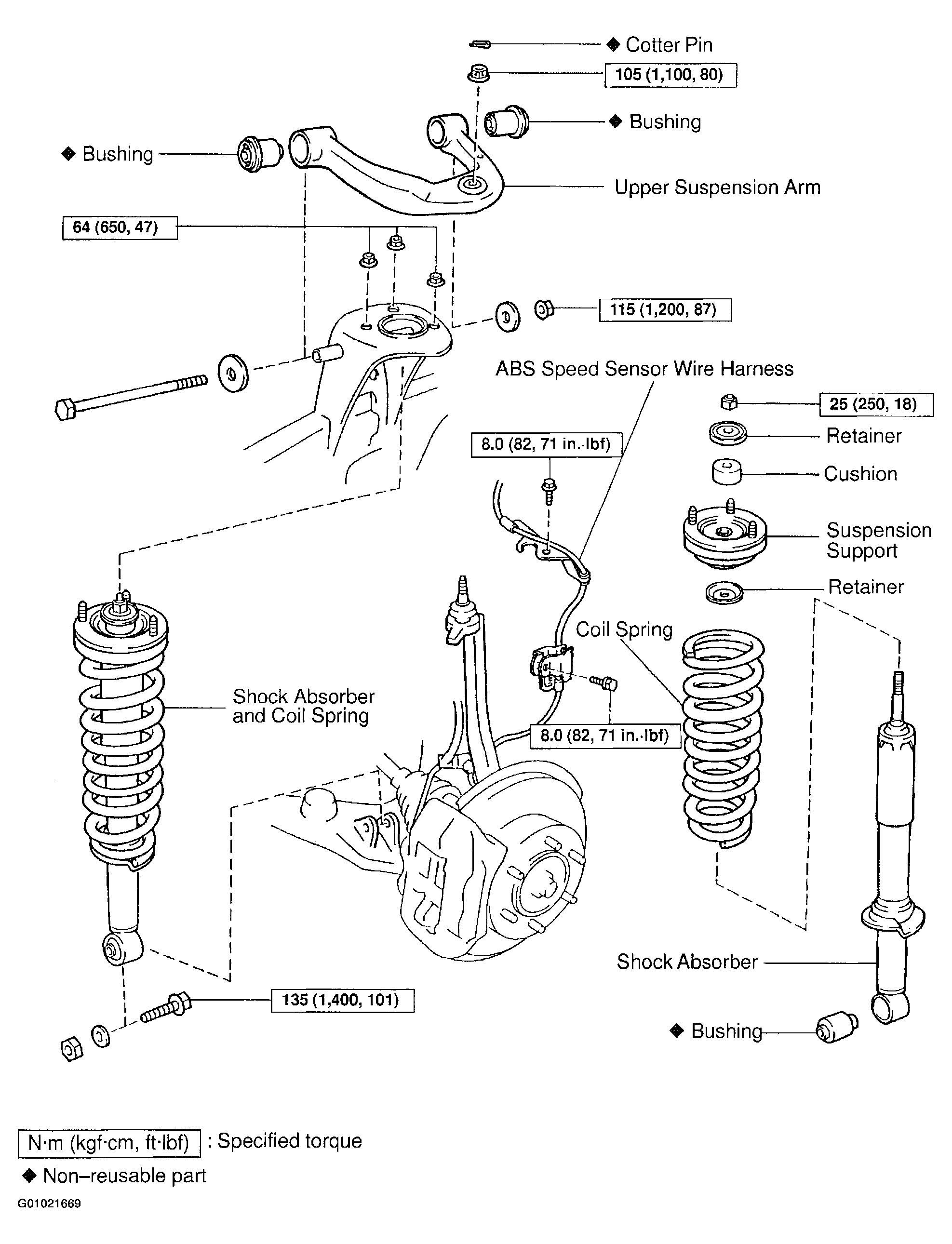

Fig 1: Locating Front Shock Absorber Components

G01021669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
