Home >> Toyota >> 2002 >> 4Runner Base >> Repair and Diagnosis >> Suspension >> Front Suspension >> Suspension Front >> Front Lower Ball Joint >> Components

Front Lower Ball Joint: Components

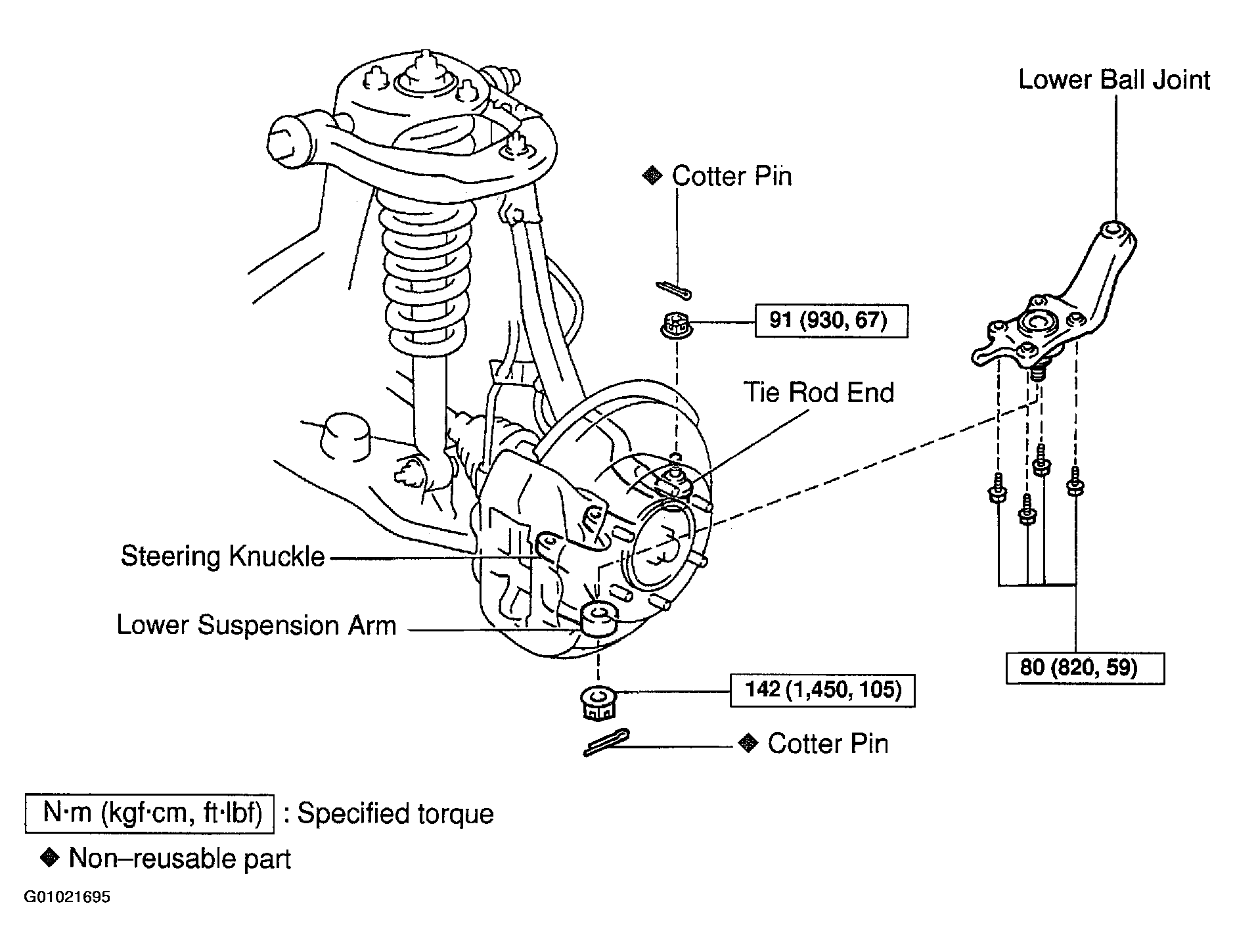

Fig 1: Locating Front Lower Ball Joint Components

G01021695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
