Front Axle Hub: Components

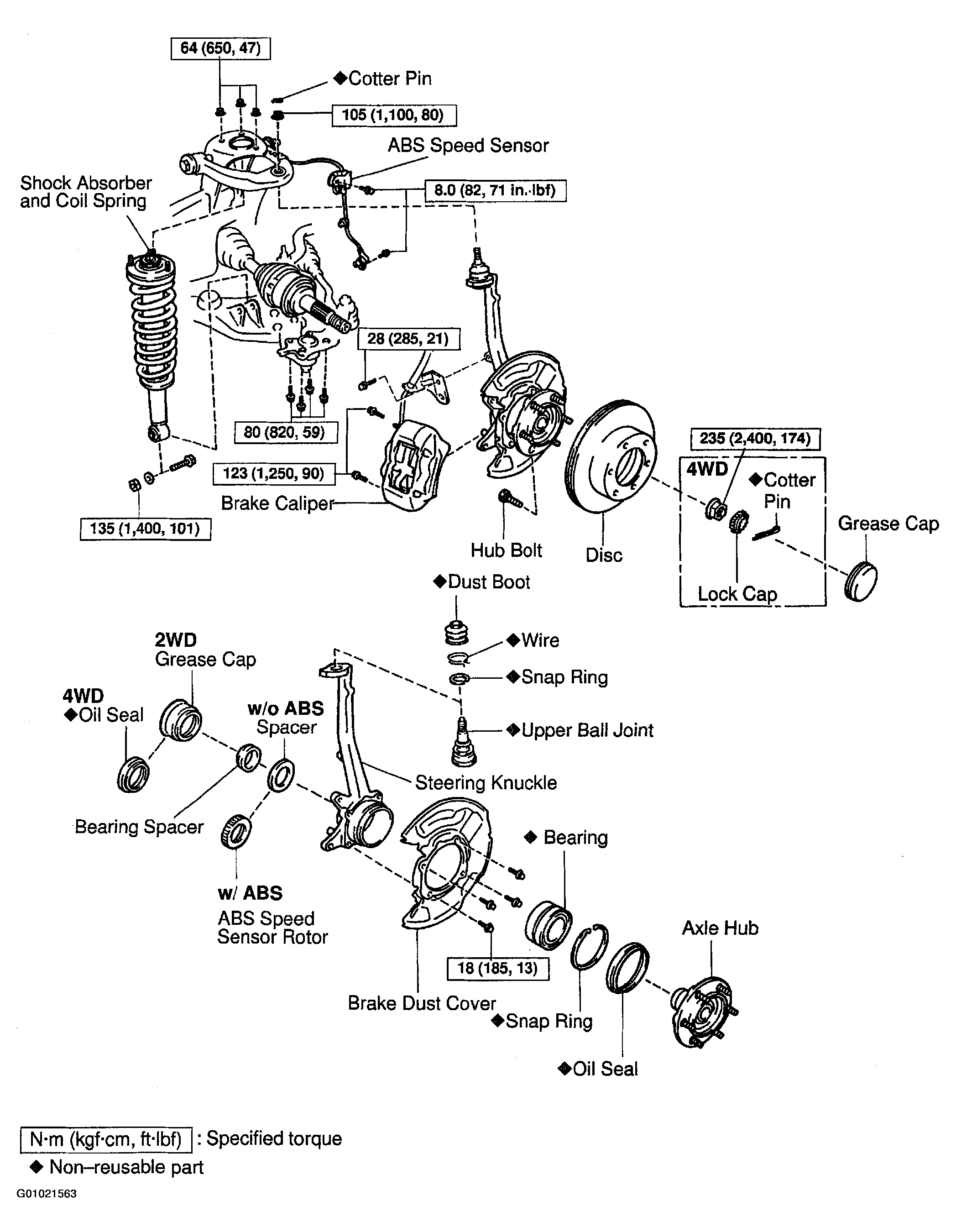

Fig 1: Locating Front Axle Hub Components

G01021563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
