Circuit Description

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

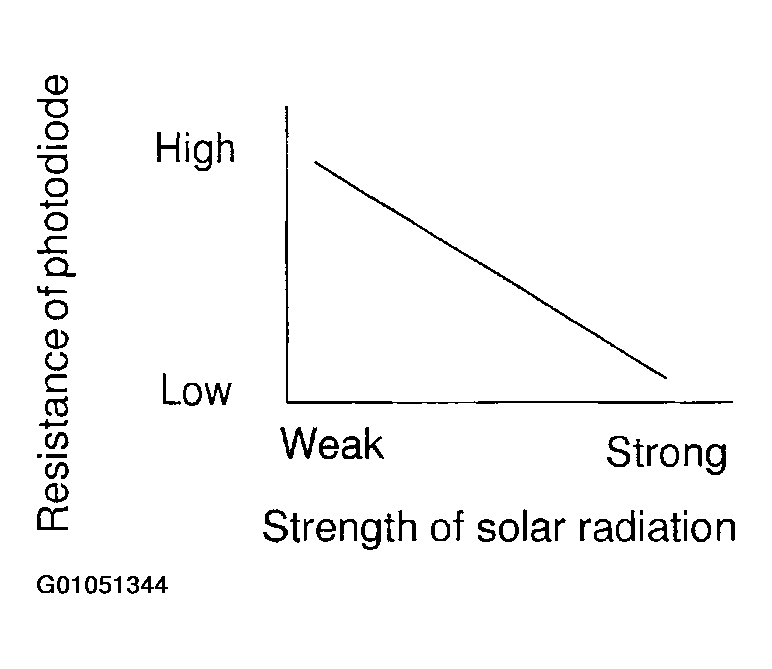

Fig 1: Detecting Solar Radiation & Sending Signals To A/C Control Assembly
G01051344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

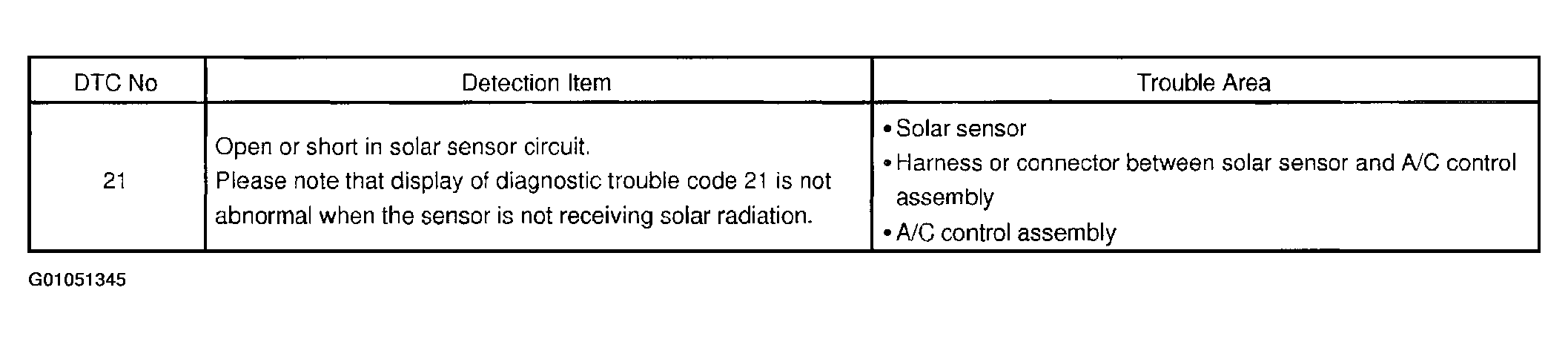

Fig 2: Defining DTC 21 Solar Sensor Circuit
G01051345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
