Water Valve: Installation

Installation is in the reverse order of removal (See REMOVAL ).

After Installation, Adjust Water Valve Control Cable

Ignition switch ON.
Set the temperature control door to "COOL" position and connect the control cable and lock the clamp.

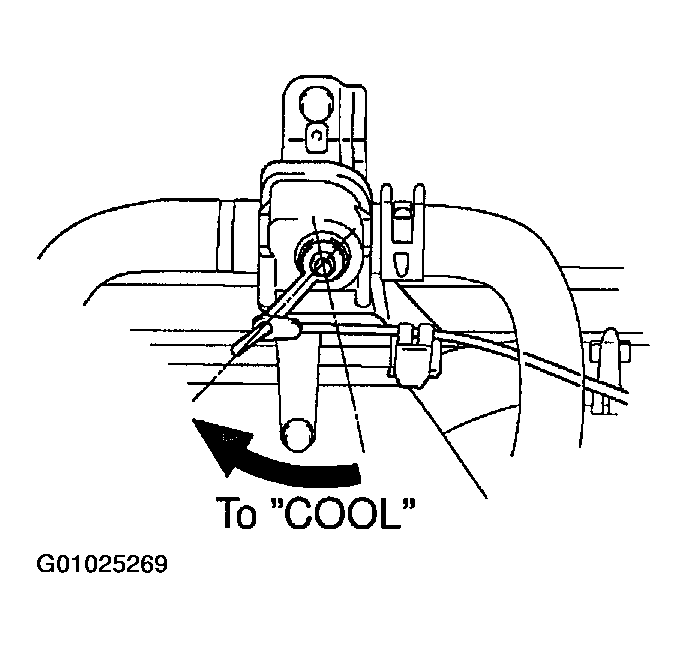

Fig 1: Setting Temperature Control Door to "COOL"
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Lock the clamp by lightly pushing the outer cable in the direction of the arrow, as shown in Fig 1 .
