Solar Sensor (Auto A/C): Inspection

Remove Solar Sensor
Using a screwdriver, pull out the sensor with the holder, then disconnect the connector.

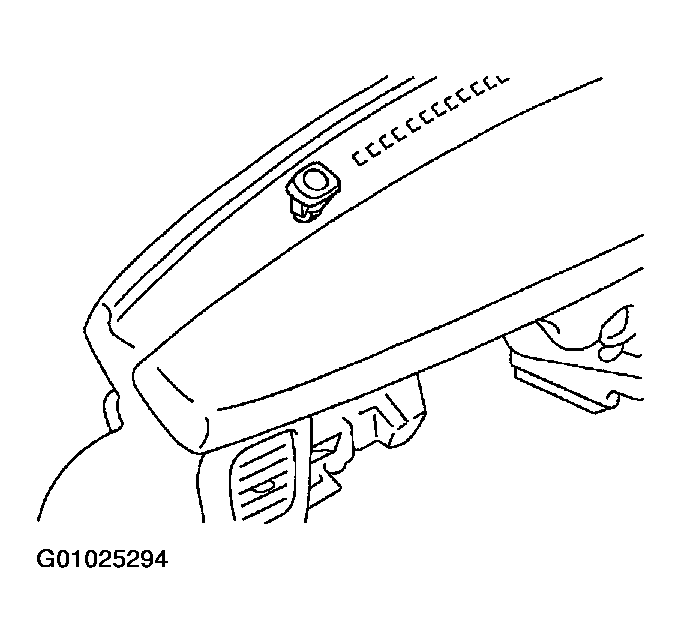

Fig 1: Displaying Solar Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Tape the screwdriver tip before use.
Inspect Solar Sensor Circuit. See DTC 21 SOLAR SENSOR CIRCUIT .
Install Solar Sensor
1. Install the sensor to the holder.

  Fig 2: Displaying Solar Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor with holder to instrument panel, then connect the connector.
  NOTE: Assemble the holder with the triangular cut-out facing forward.
