Room Temperature Sensor (Auto A/C): Inspection

  1. Remove Lower Finish Panel LH.  See Figure.
  2. Remove Room Temperature Sensor
    1. Disconnect the connector and aspirator hose.
      Fig 1: Locating Connector & Aspirator Hose
      G01025296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the sensor from lower finish panel.
  3. Inspect Room Temperature Sensor Circuit.  See DTC 11 ROOM TEMPERATURE SENSOR CIRCUIT .
  4. Install Room Temperature Sensor
    1. Install the sensor to lower finish panel.
    2. Connect the connector and aspirator hose.

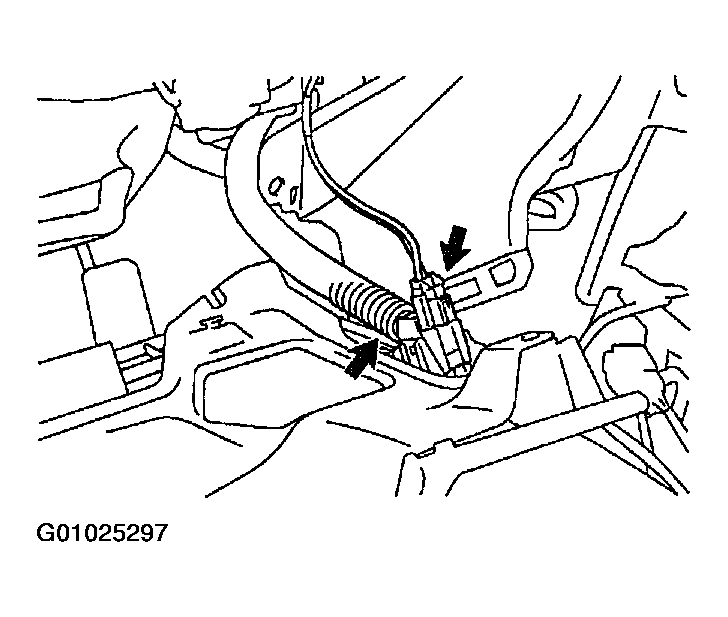

      Fig 2: Locating Connector & Aspirator Hose
      G01025297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Install Lower Finish Panel LH.  See Figure.
