Rear Heater Unit: Inspection

  1. Inspect Fins For Blockage

    If the fins are clogged, clean them with compressed air.

  2. Inspect Blower Motor Operation

    Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the motor operates smoothly.

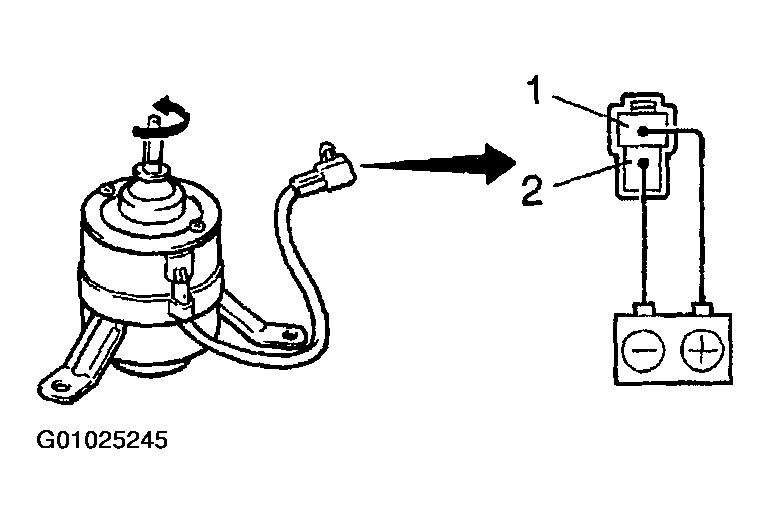

    Fig 1: Inspecting Blower Motor Operation
    G01025245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the motor.
