Rear Heater Control Assembly: Removal

  1. Remove Rear Console Box.  See Figure and Instrument Panel .
  2. Remove Heater Control Assembly
    1. Disconnect the control cable.

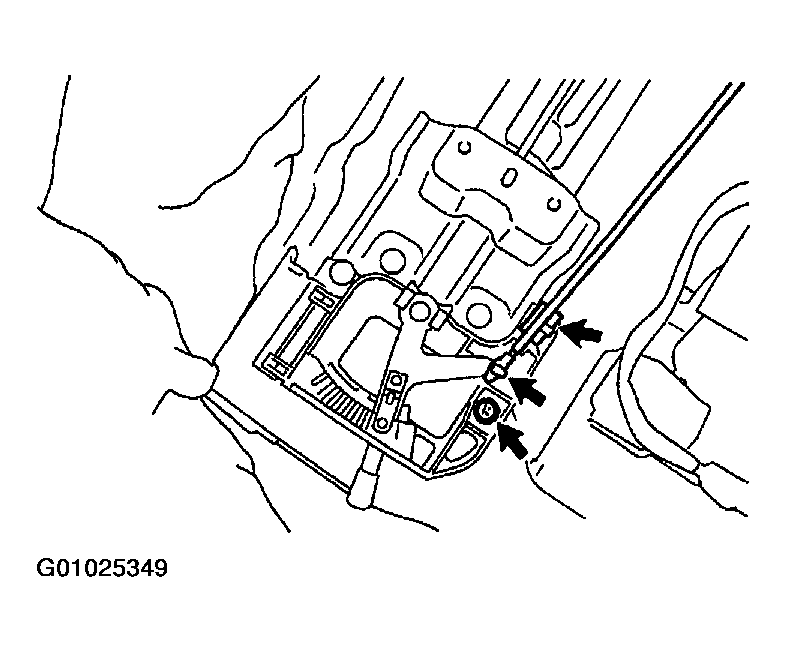

      Fig 1: Locating Screws To Remove Heater Control Assembly
      G01025349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: At the time of installation, please refer to the following item. For installing the control cable refer to "INSTALLATION".
    2. Remove the screw and heater control assembly.
