Rear Blower Switch: Inspection

Remove Rear Blower Switch
Using a screwdriver, pry out the switch, then disconnect the connector.

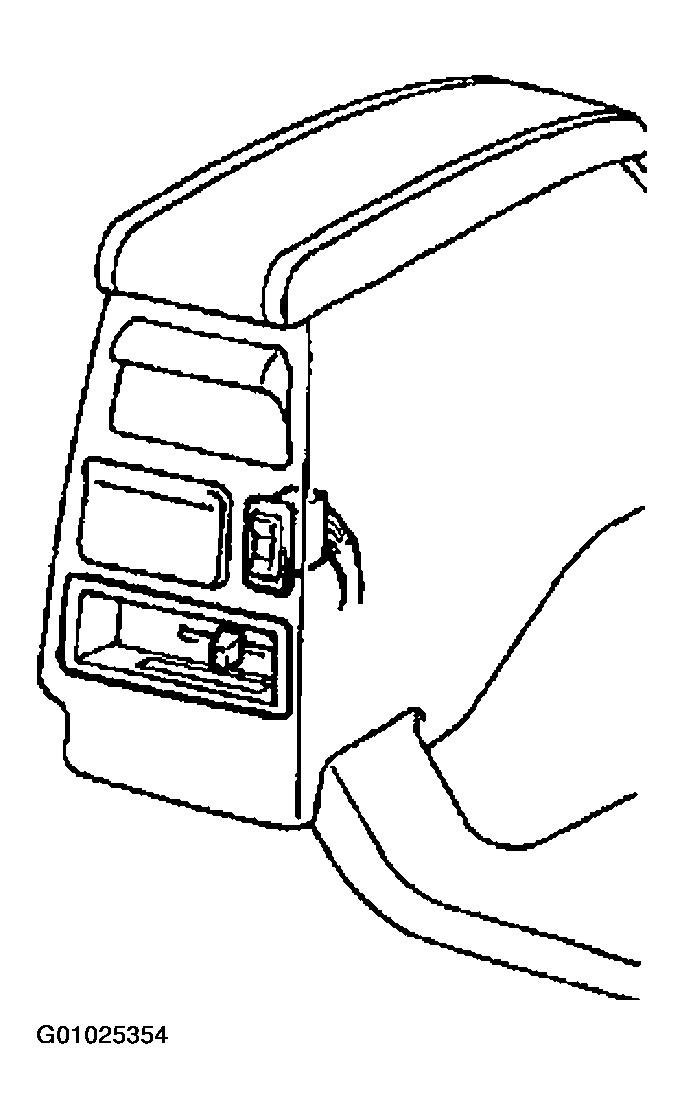

Fig 1: Displaying Rear Blower Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Tape the screwdriver tip before use.
Inspect Switch Continuity

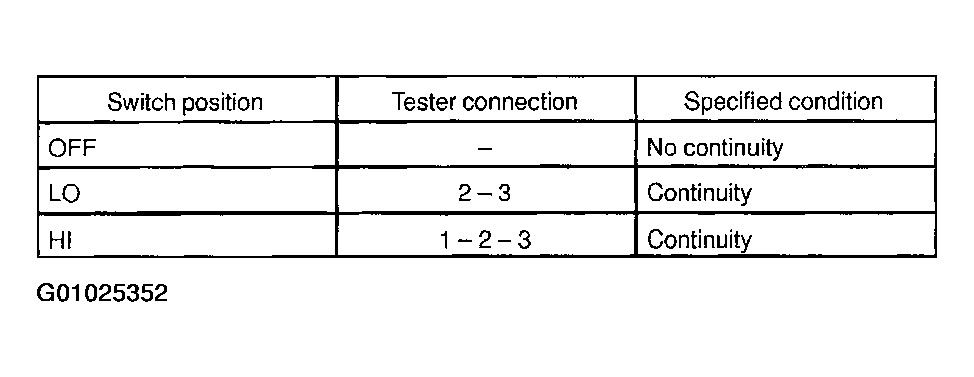

Fig 2: Inspecting Switch Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

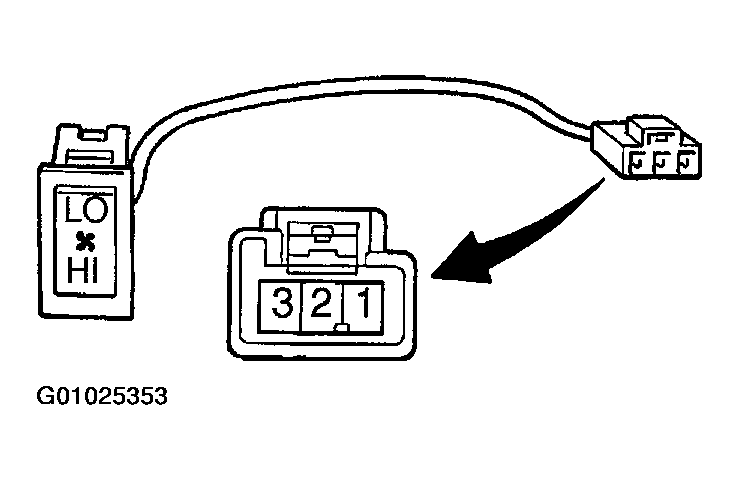

Fig 3: Displaying Switch Connection Based On Conditions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Install Rear Blower Resistor
Install the switch, then connect the connector.

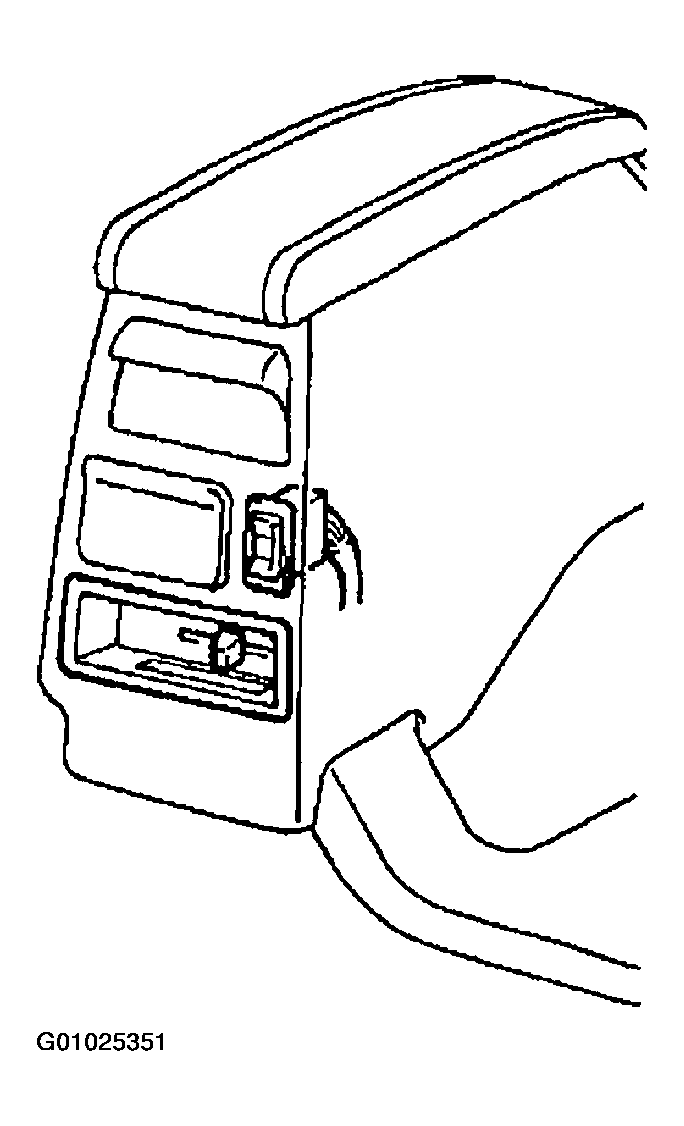

Fig 4: Displaying Rear Blower Switch
