Pressure Switch: Removal

Discharge Refrigerant From Refrigeration System
NOTE:
At the time of installation, please refer to the following item. Evacuate air from refrigeration system. Charge system with refrigerant and inspect for leakage of refrigerant.
1. Specified amount: 650 +/- 50 g (22.92 +/- 1.76 oz.)
Remove Pressure Switch From Liquid Tube

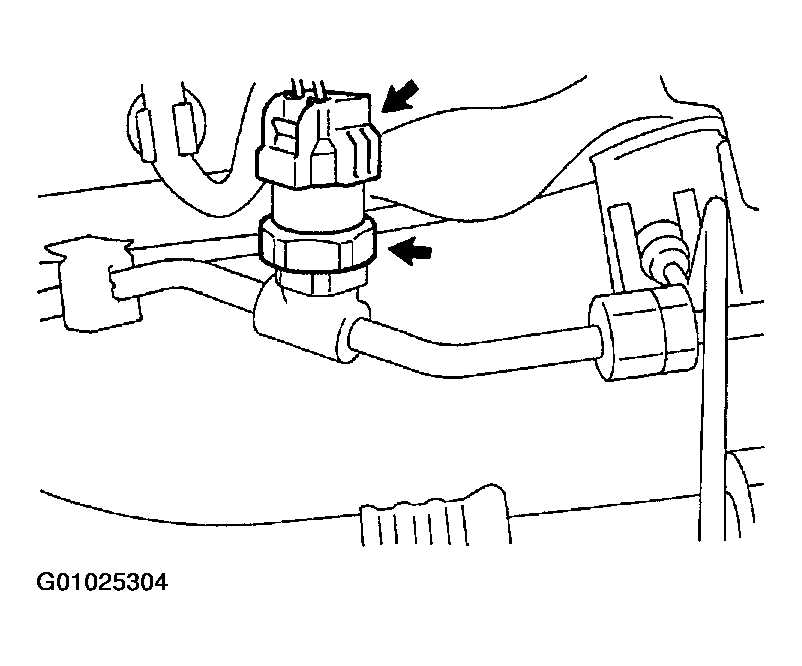

Fig 1: Locating Pressure Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the connector and remove the pressure switch.
1. Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)
  NOTE:
  - Lock the switch mount on the tube with an open end wrench, being careful not to deform the tube, and remove the switch.
  - Lubricate a new O-ring with the compressor oil and install them to the switch.
