On-Vehicle Inspection

Set On Manifold Gauge Set (See MANIFOLD GAUGE SET )
Disconnect Connector
Run Engine At Approx. 2,000 Rpm
Set Blower Speed Control Switch To "HI" Position
Set Temperature Control Lever To "MAX. COOL" Position
A/C Switch On
Inspect Pressure Switch Operation
1. Connect the positive (+) lead from the ohmmeter to terminal 1 and negative (-) lead to terminal 2.

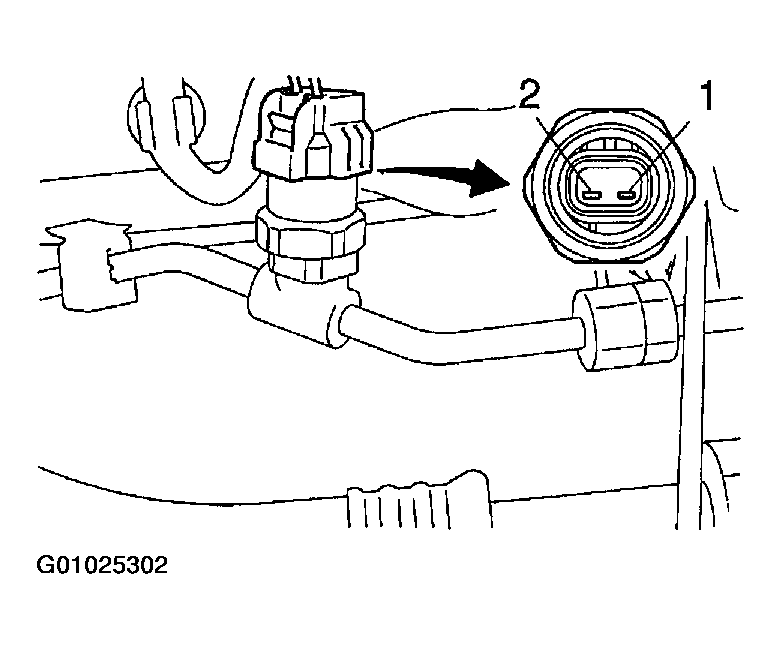

  Fig 1: Displaying Connection Of Ohmmeter To Pressure Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check continuity between terminals when refrigerant pressure is changed, as shown in the illustration.

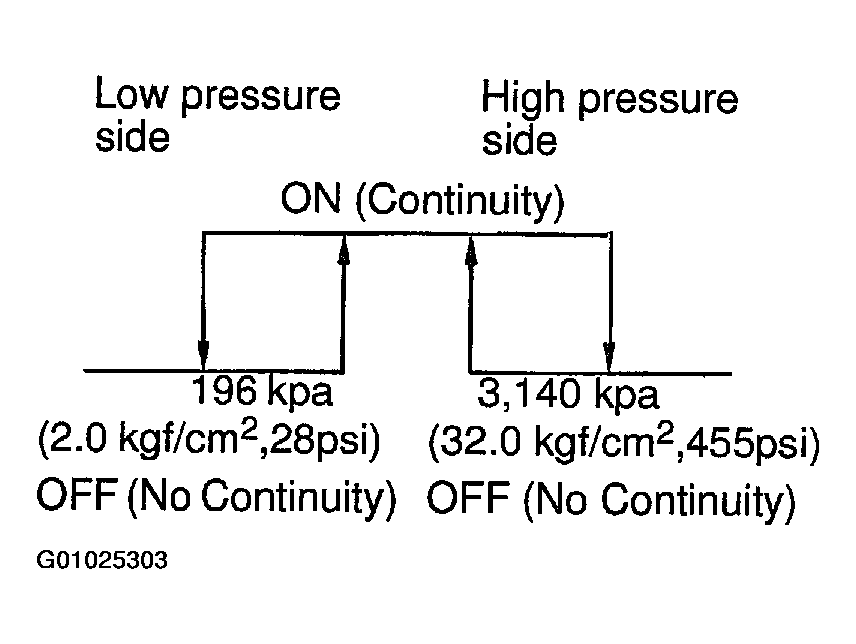

  Fig 2: Displaying Terminal Continuity When Refrigerant Pressure Changes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If operation is not as specified, replace the pressure switch.
