Set On

  1. Connect Charge Hose To Manifold Gauge Set

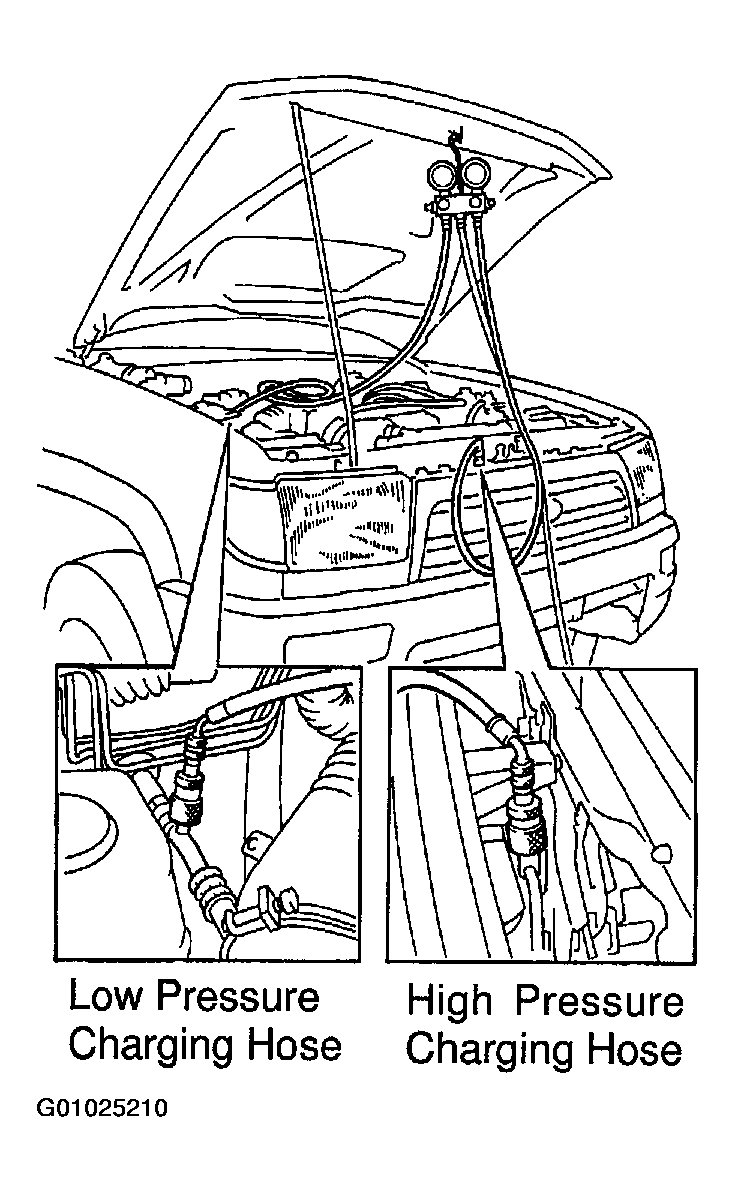

    Fig 1: Displaying Low & High Pressure Charging Hoses
    G01025210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Tighten the nuts by hand.

    CAUTION: Do not connect the wrong hoses.
  2. Connect Quick Disconnect Adapters To Charging Hoses

    Tighten the nuts by hand.

  3. Close Both Hand Valves Of Manifold Gauge Set
  4. Remove Caps From Service Valves On Refrigerant Line
  5. Connect Quick Disconnect Adapters To Service Valves

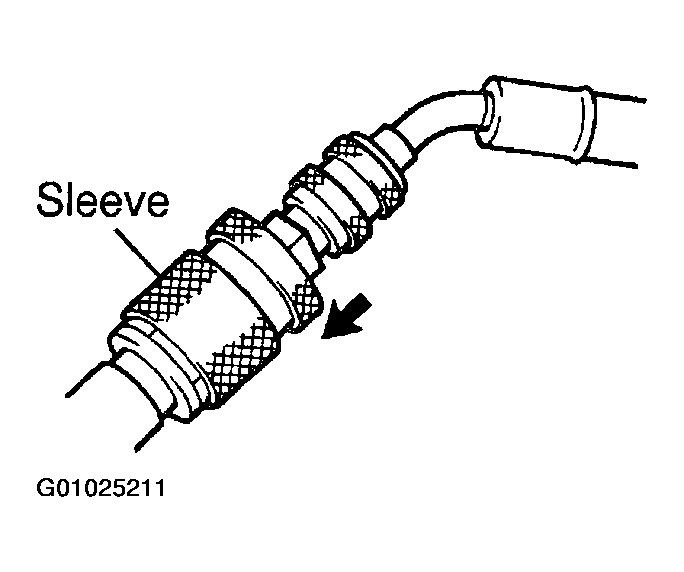

    Fig 2: Displaying Quick Disconnect Sleeve Locking
    G01025211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Push the quick disconnect adapter onto the service valve, then slide the sleeve of the quick disconnect adapter downward to lock it.
