Set Off

  1. Close Both Hand Valves Of Manifold Gauge Set
  2. Disconnect Quick Disconnect Adapters From Service Valves On Refrigerant Line

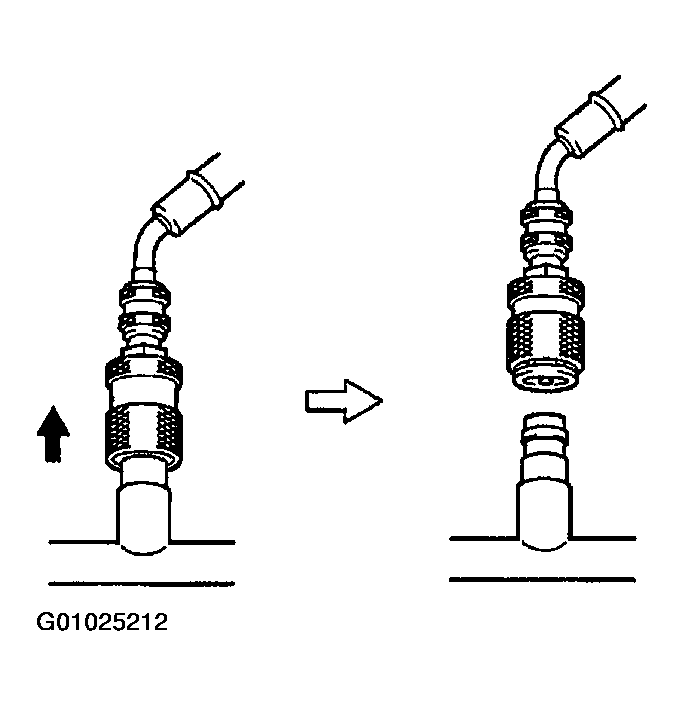

    Fig 1: Disconnecting Quick Disconnect Adapters
    G01025212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Slide the sleeve of the quick disconnect adapter upward to unlock the adapter and remove it from the service valve.
  3. Install Caps To Service Valves On Refrigerant Line
