Heater Control Assembly (Manual A/C): Disassembly

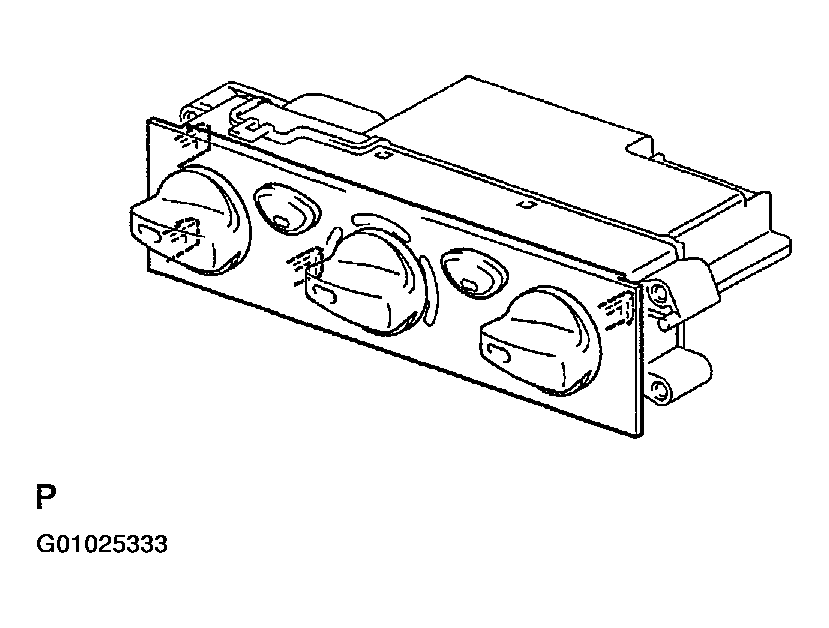

Fig 1: Displaying A/C Control Panel
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the 3 knobs and 2 switch.
2. Remove the A/C control panel.

1. Remove the 5 screws.

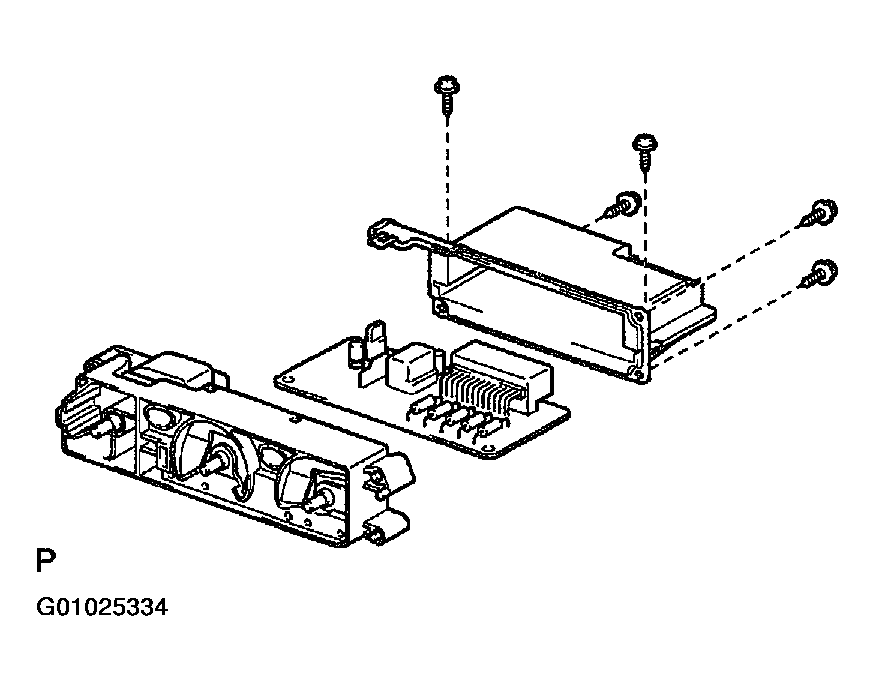

   Fig 2: Removing A/C Amplifier

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the A/C control panel case and amplifier.

Using a screwdriver, turn the bulb to the left and pull out the bulb.

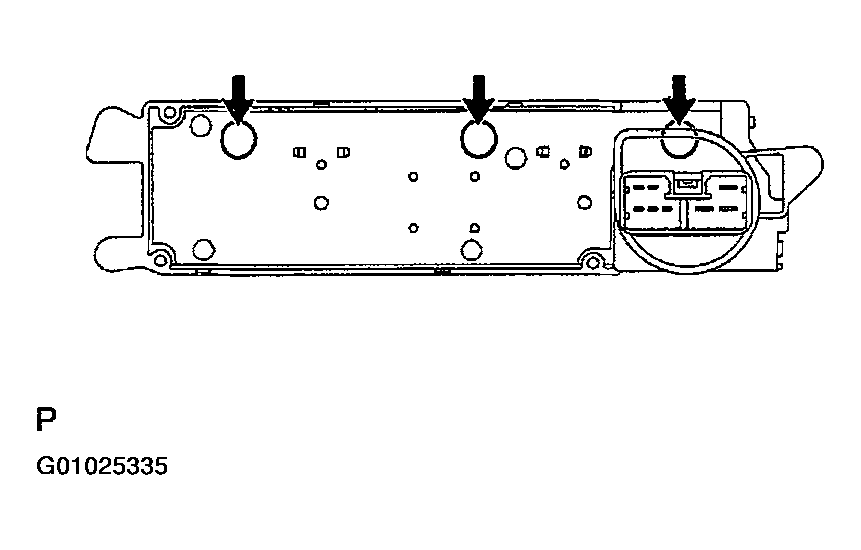

Fig 3: Removing Bulbs

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
