Heater Control Assembly (Manual A/C): Components

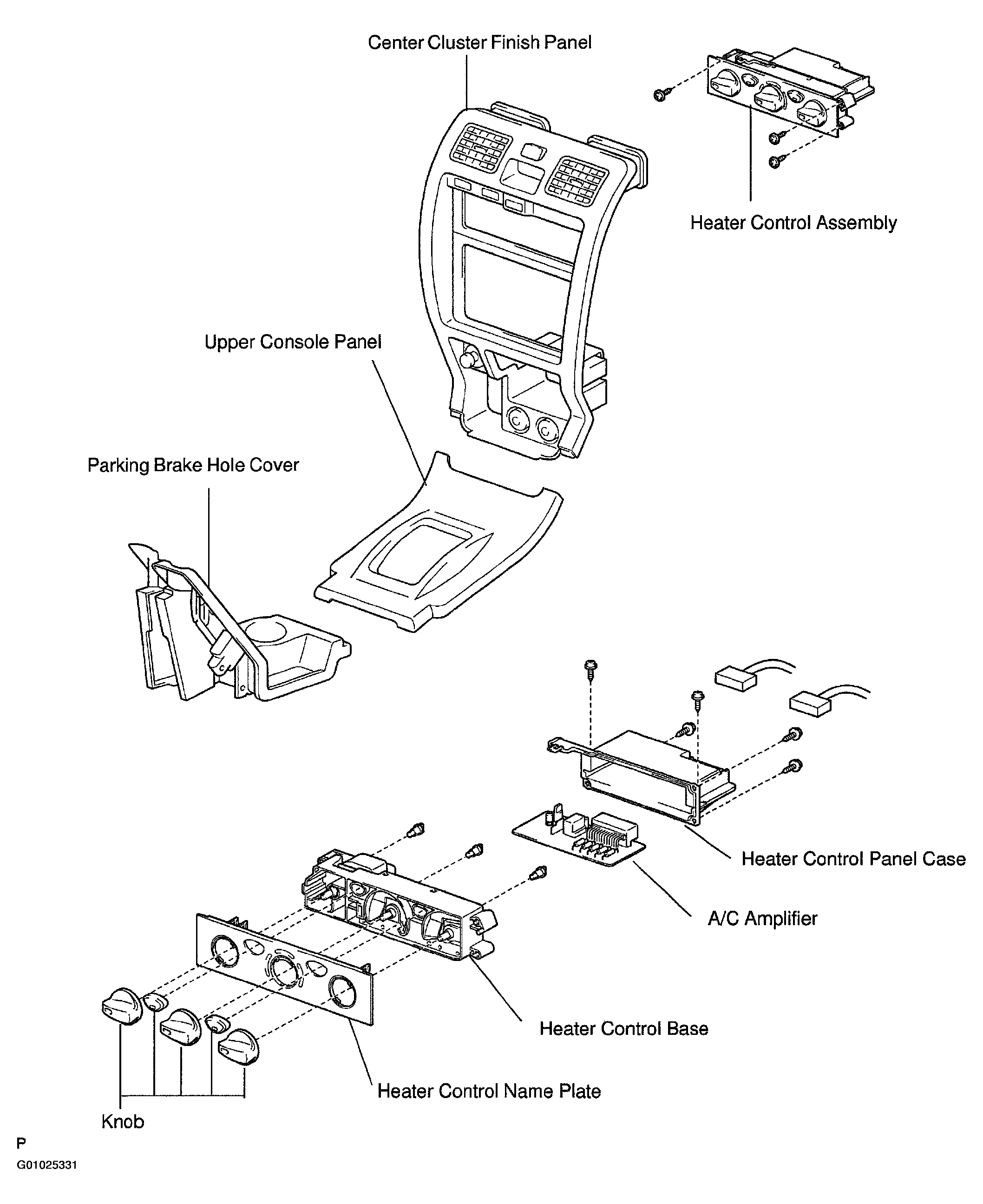

Fig 1: Displaying Heater Control Assembly Components

G01025331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
