Drive Belt: Installation

  1. Tighten Idle Pulley Lock Nut Temporarily

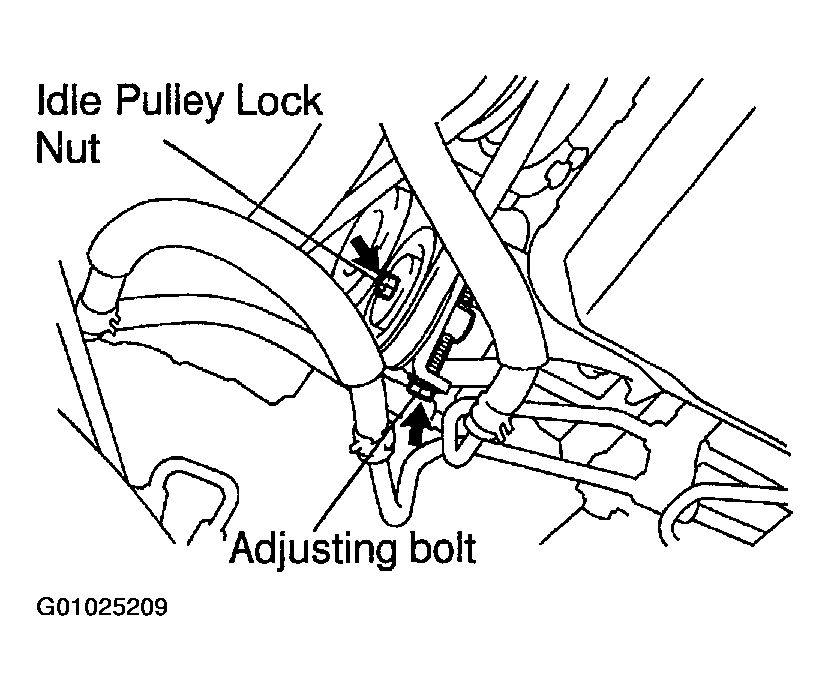

      Fig 1: Displaying Idle Pulley Lock Nut & Adjusting Bolt
      G01025209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Torque: 2.5 N.m (25 kgf.cm, 22 in..lbf)
  2. Install Drive Belt
  3. Using Adjusting Bolt, Adjust Drive Belt Tension
    1. Drive belt tension:
      1. New belt: 160 +/- 25 lbf
      2. Used belt: 100 +/- 25 lbf
  4. Tighten Idle Pulley Lock Nut
    1. Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
  5. Install PS Pump Drive Belt
  6. Install Engine Under Cover
