Compressor And Magnetic Clutch: Disassembly

Remove Pressure Plate

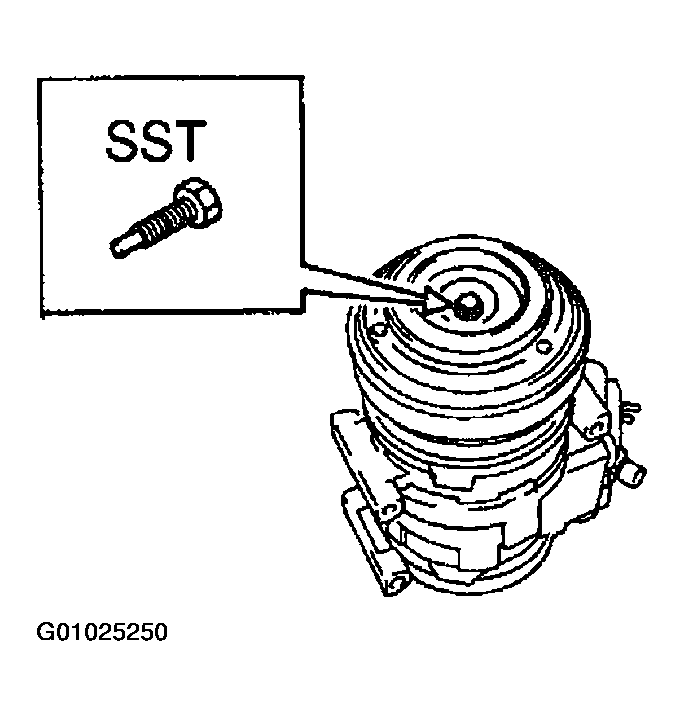

1. Using SST and a socket wrench, remove the shaft bolt.
  1. SST 07112-76060
  2. Torque: 13.2 N.m (135 kgf.cm, 9 ft.lbf)
2. Install SST on the pressure palate.
  1. SST 07112-66040

    Fig 2: Installing SST On Pressure Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

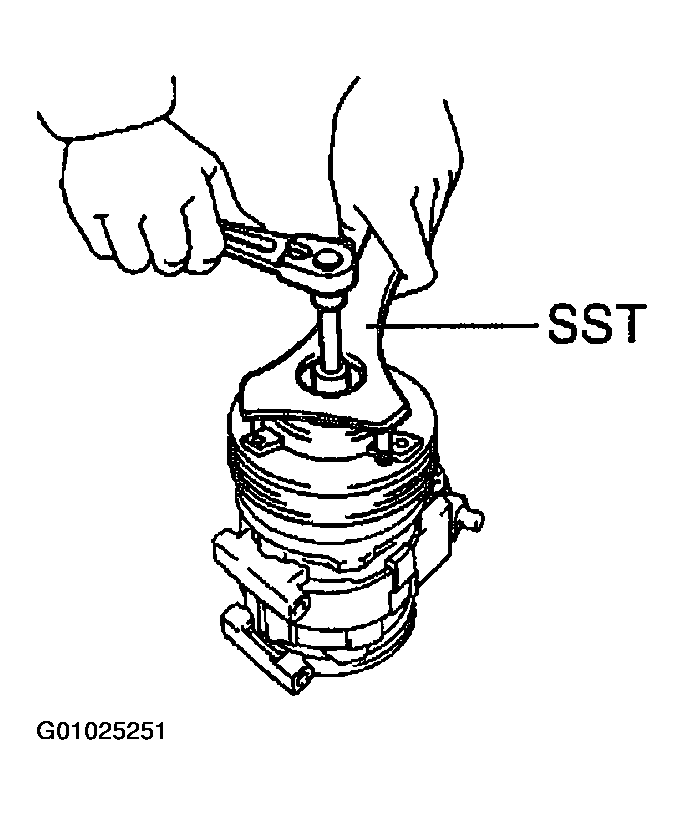

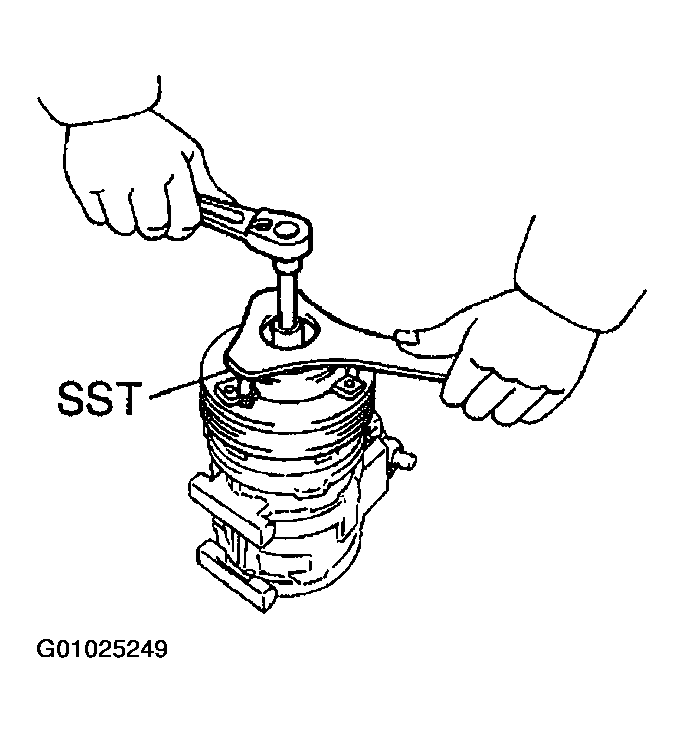

3. Using SST and socket wrench, remove the pressure plate.
  1. SST 07112-66040, 07112-76060,

    Fig 3: Removing Pressure Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

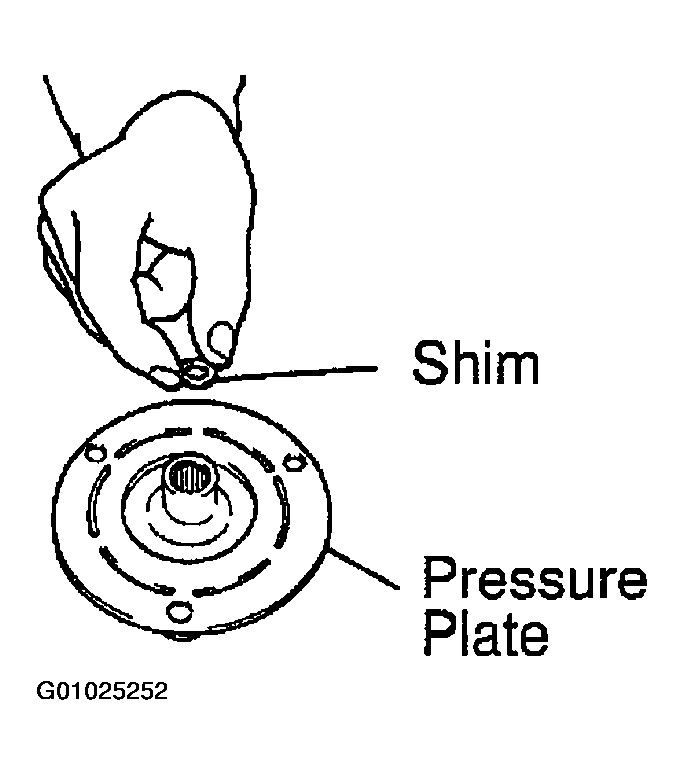

4. Remove the shims from the pressure palate.

  Fig 4: Removing Shims From Pressure Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Rotor

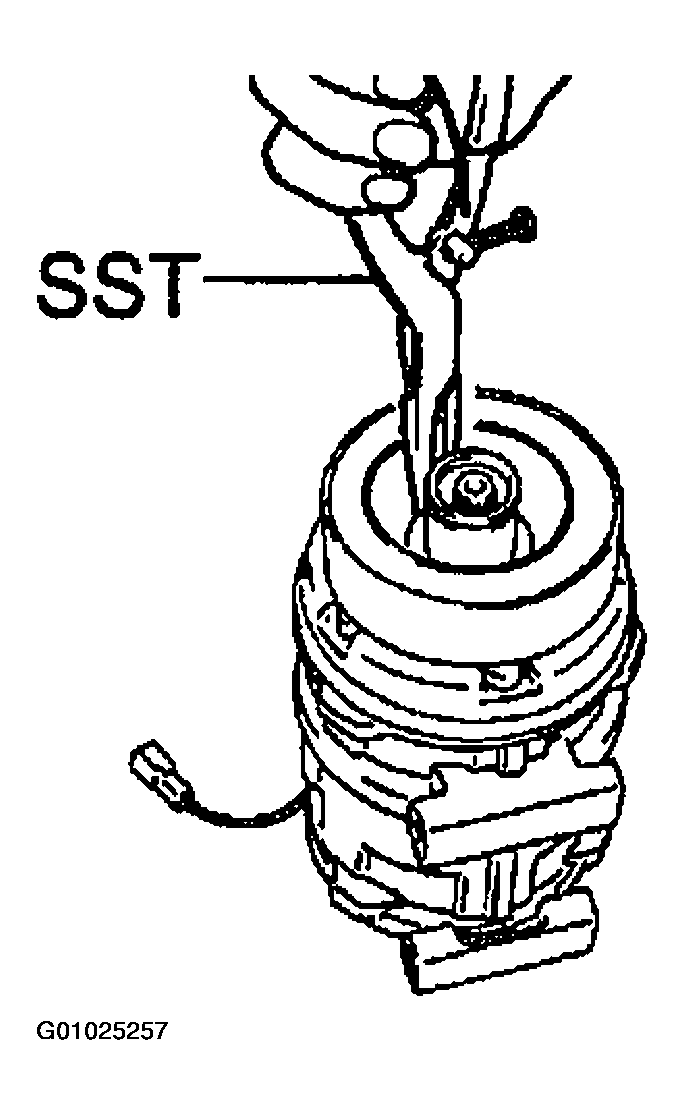

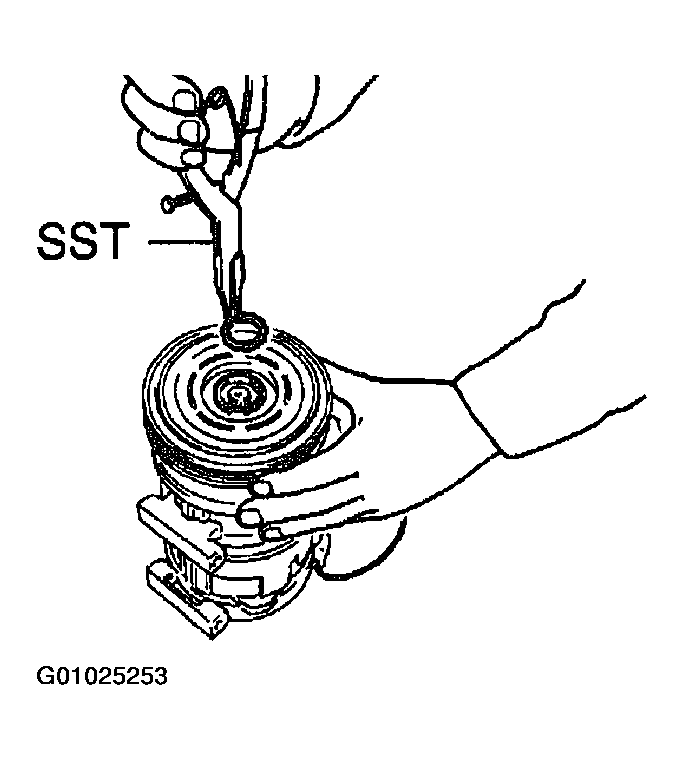

1. Using SST, remove the snap ring.
  1. SST 95994-10020

    Fig 5: Removing Snap Ring
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

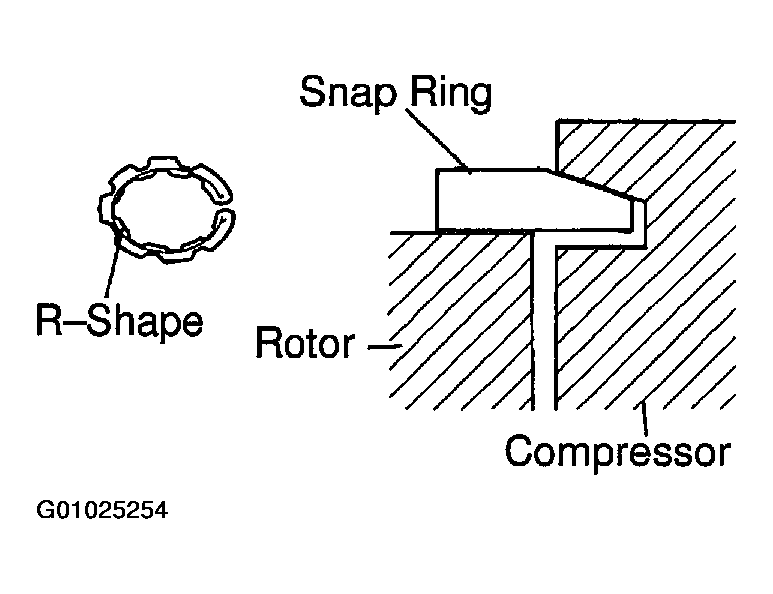

  NOTE: The snap ring should be installed so that beveled side faces up.

  Fig 6: Displaying Installation Of Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

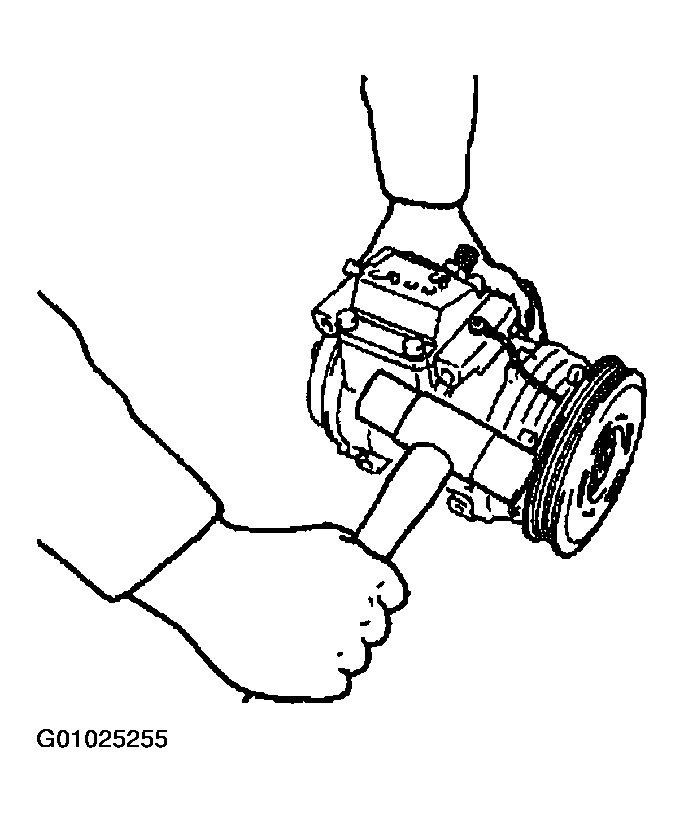

2. Using a plastic hammer, tap the rotor off the shaft.

  Fig 7: Removing Rotor From Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful not to damage the pulley when tapping on the rotor.
Remove Stator

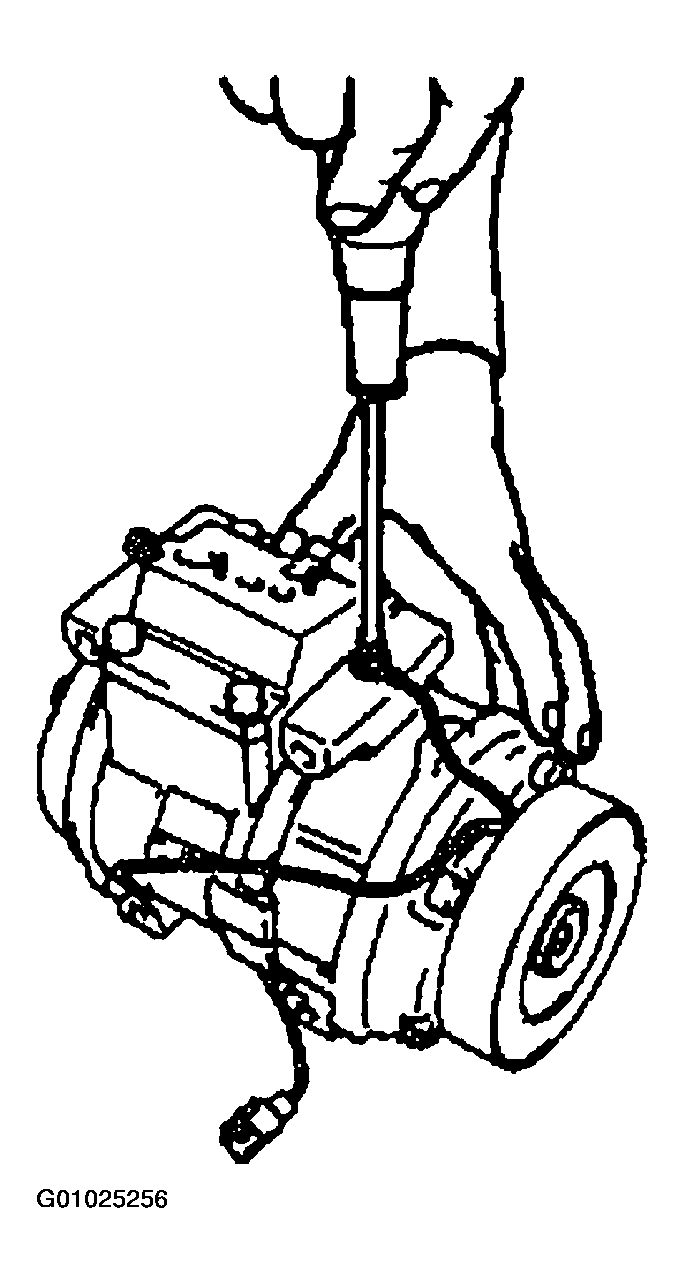

1. Disconnect the stator lead wire from the compressor housing.

  Fig 8: Removing Stator Lead Wire From Compressor Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the snap ring.
  1. SST 95994-10020

    Fig 9: Removing Snap Ring
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

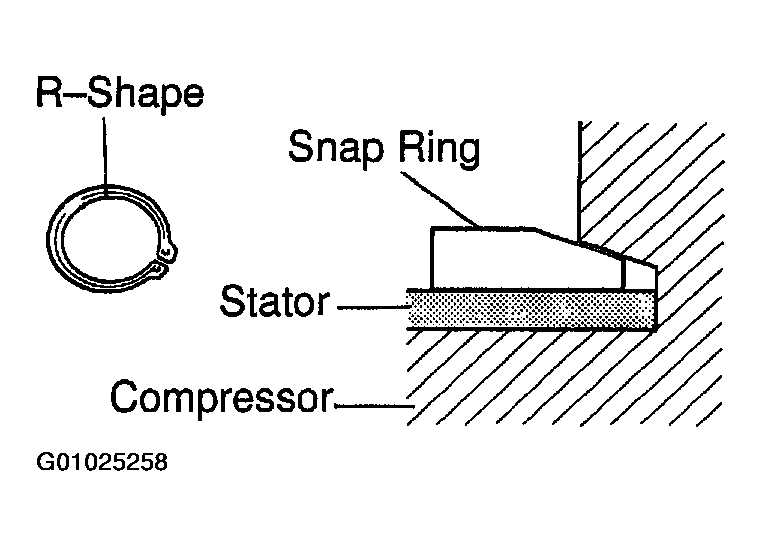

  NOTE: The snap ring should be installed so that its beveled side faces up.

  Fig 10: Displaying Installation Of Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

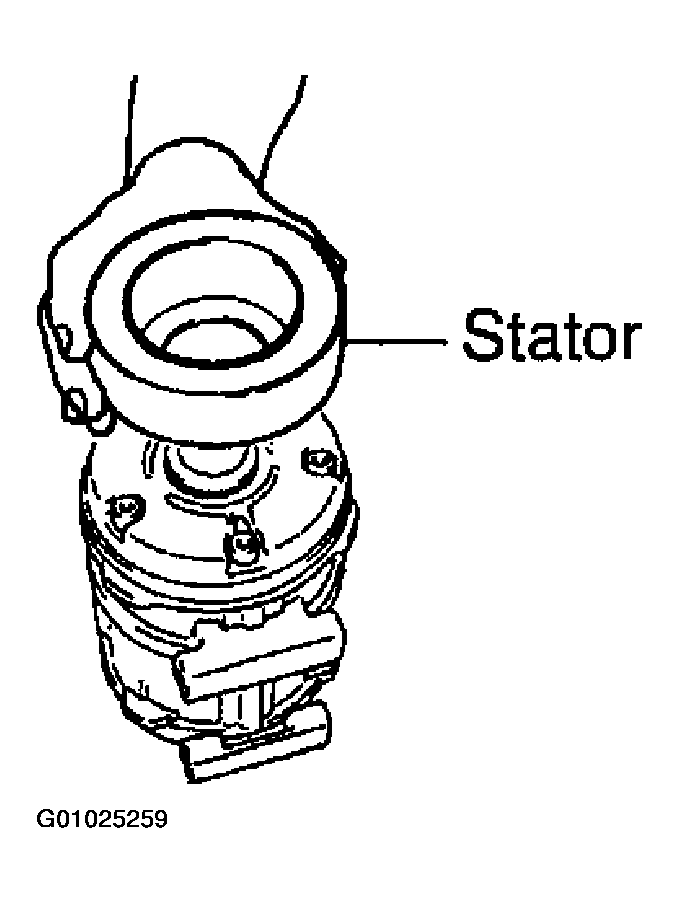

3. Remove the stator.

  Fig 11: Removing Stator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
