Compressor And Magnetic Clutch: Components

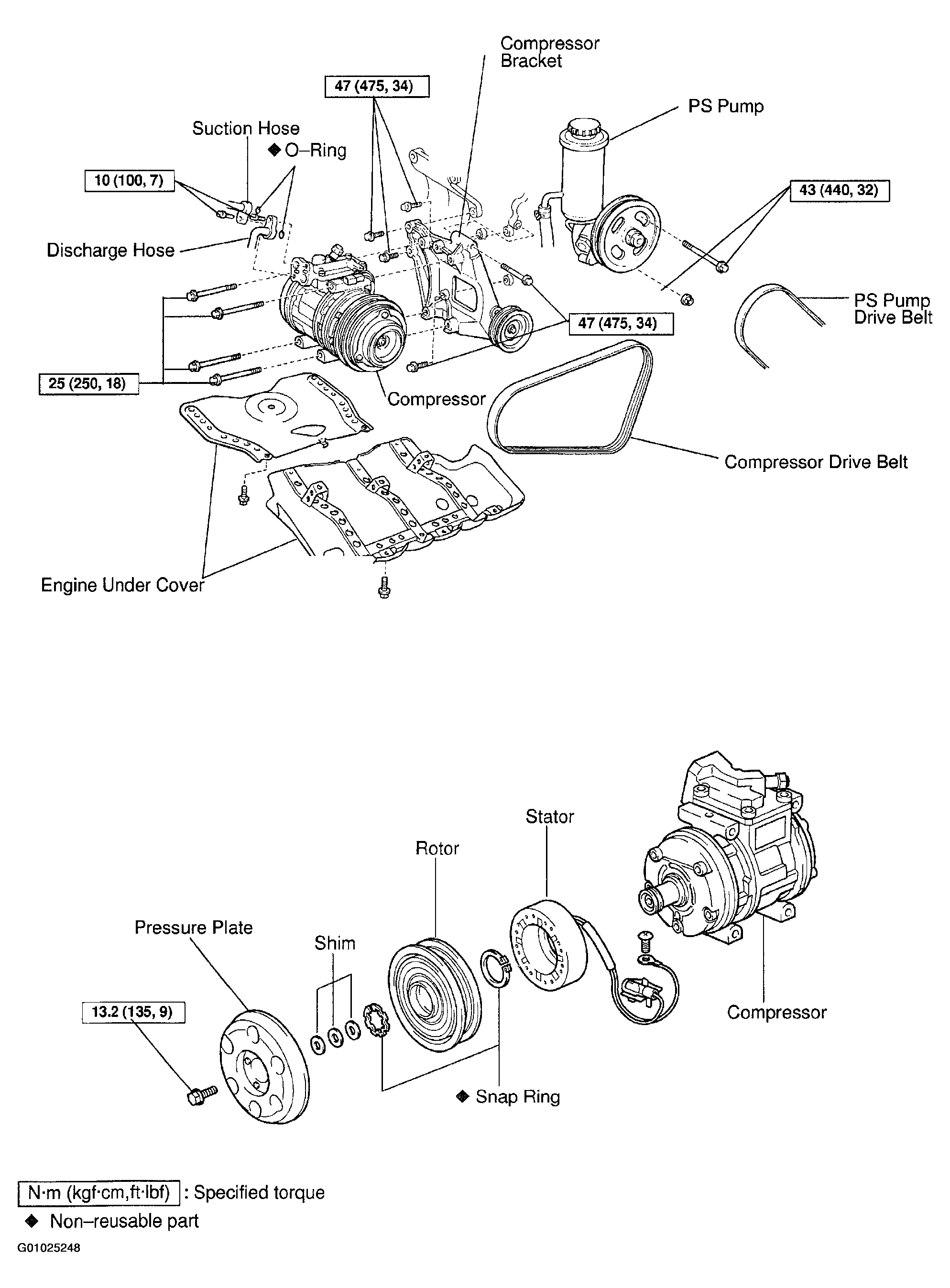

Fig 1: Displaying Compressor & Magnetic Clutch Components

G01025248

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
