Blower Motor: Inspection

Remove Glove Compartment Door. See Figure.
Remove Blower Motor
1. Disconnect the connector.
2. Remove the 3 screws and motor.

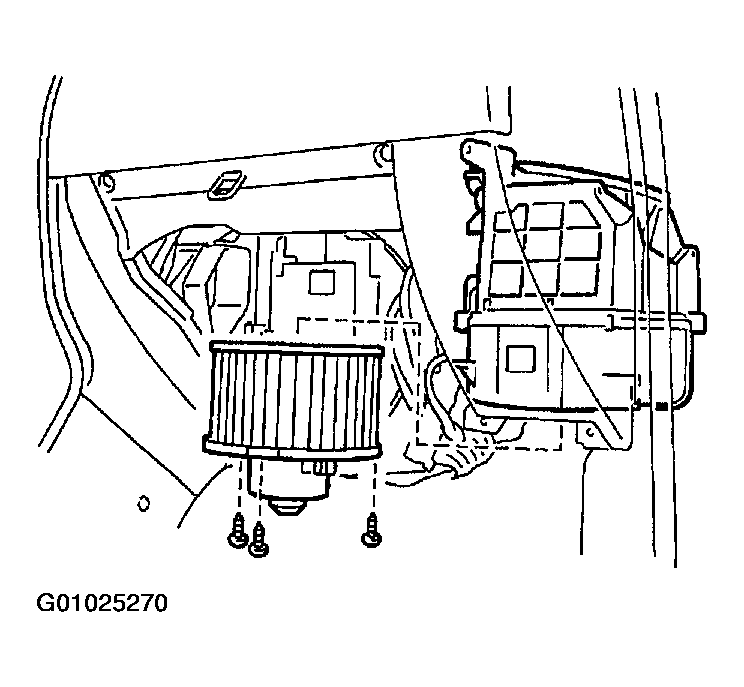

  Fig 1: Removing Three Screws & Motor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Inspect Blower Motor Operation
Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the motor operates smoothly.

If operation is not as specified, replace the blower motor.

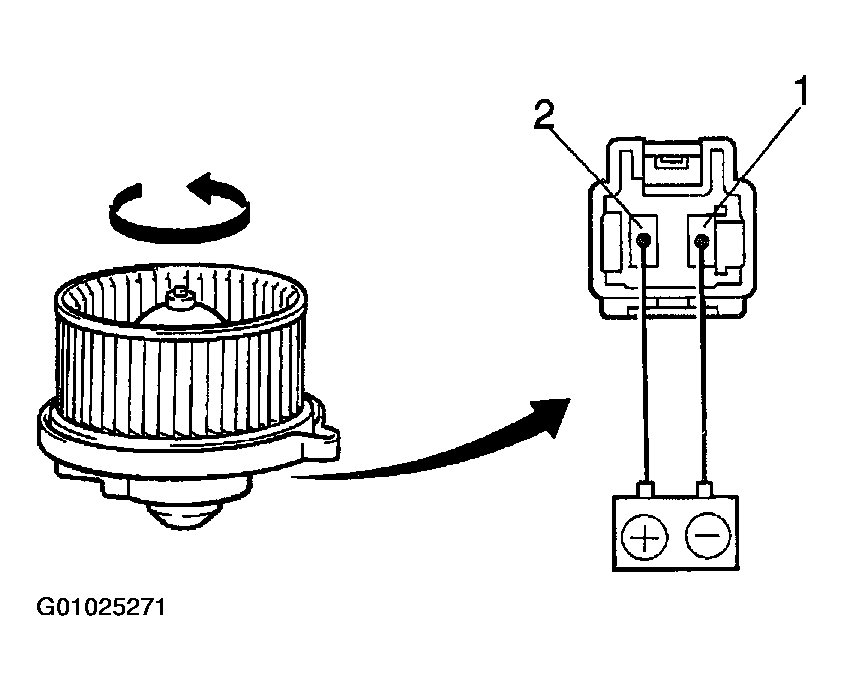

Fig 2: Inspecting Blower Motor Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Blower Motor
1. Install the motor with the 3 screws.
2. Connect the connector.

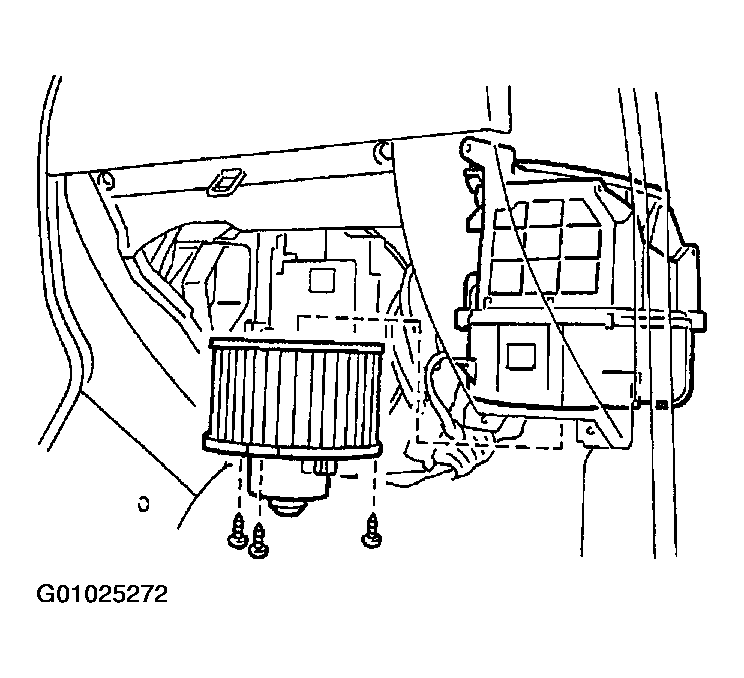

Fig 3: Installing Motor With Three Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Glove Compartment Door. See Figure.
