Air Conditioning Control Assembly (Auto A/C): Removal

  1. Remove Parking Brake Hole Cover
  2. Remove Upper Console Panel
  3. Remove Center Cluster Finish Panel.  See Figure and Instrument Panel .
  4. Remove A/C Control Assembly
    1. Remove the A/C control name plate.
    2. Remove the 3 screws and A/C control assembly, then disconnect the connector.

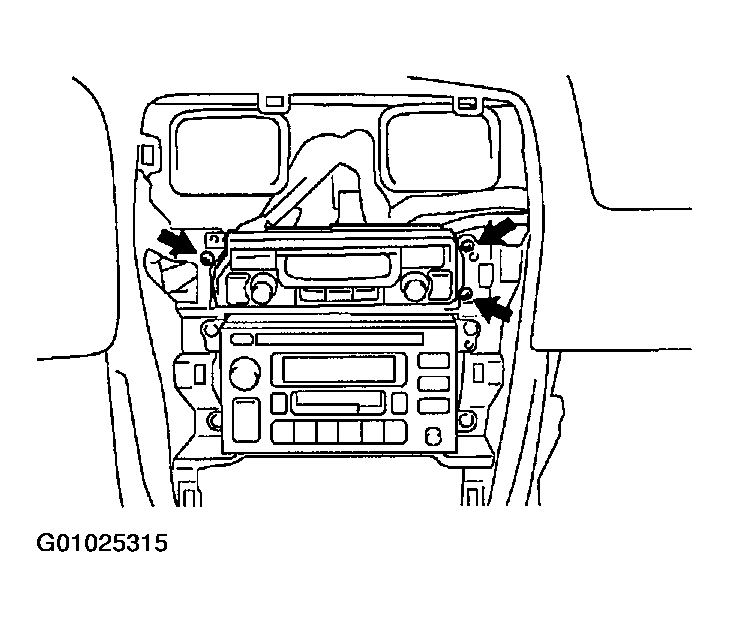

      Fig 1: Locating Screws For Removal Of A/C Control Assembly
      G01025315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
