Air Conditioning Control Assembly (Auto A/C): Reassembly

  1. Install Bulb
    1. Install bulb in the A/C control panel.

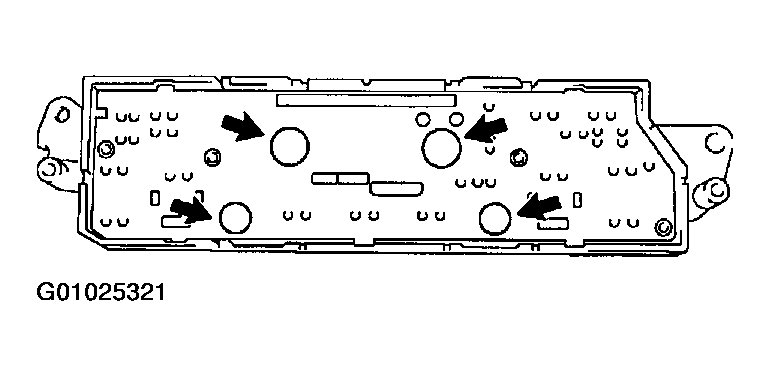

      Fig 1: Displaying Areas To Install Bulbs
      G01025321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, turn the bulb to the right and lock the bulb.
  2. Install A/C Amplifier
    1. Hold the connector of supply parts amplifier and pull out the amplifier from electrostatic prevention bag.
    2. Hold the connector of amplifier and insert the amplifier to the A/C control panel case.
    3. Install the holder.

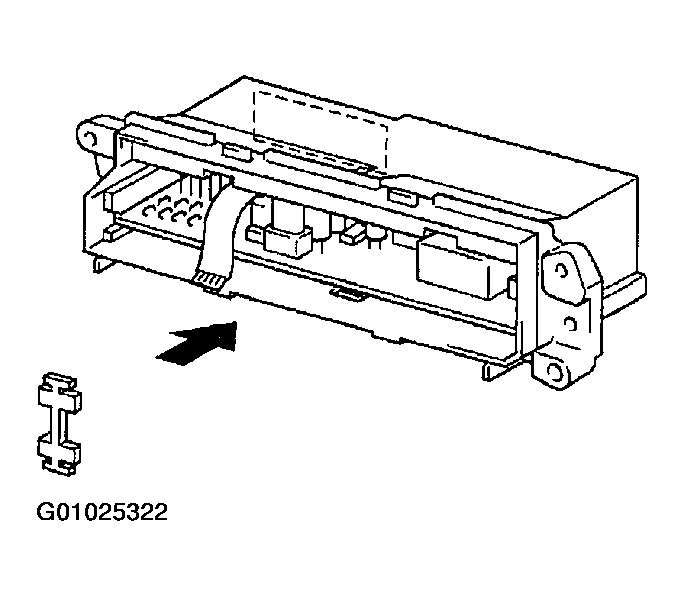

      Fig 2: Installing A/C Amplifier & Holder
      G01025322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the fitting for connector of amplifier.
  3. Install A/C Control Panel

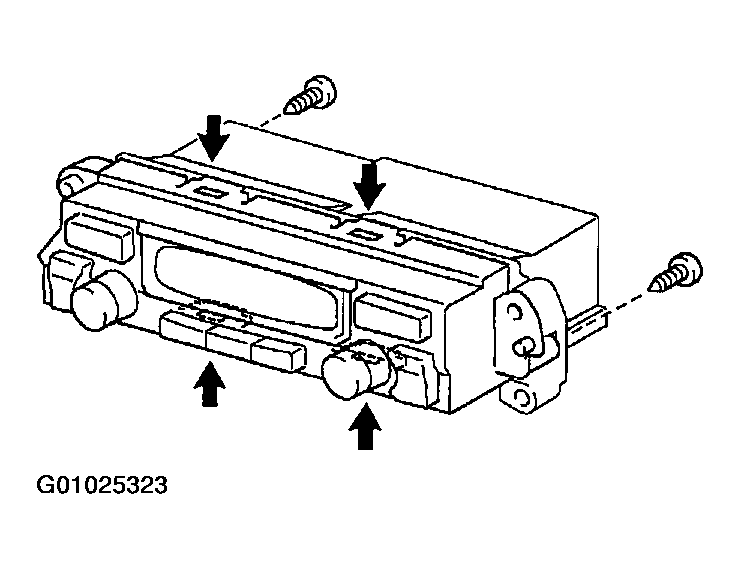

      Fig 3: Installing A/C Control Panel
      G01025323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Unlock the connector's lock and push into the flat cable.
    2. Install the A/C control panel.
    3. Check the fitting for 4 claws.
    4. Install the 2 screws.
