Air Conditioning Control Assembly (Auto A/C): Installation

  1. Install A/C Control Assembly

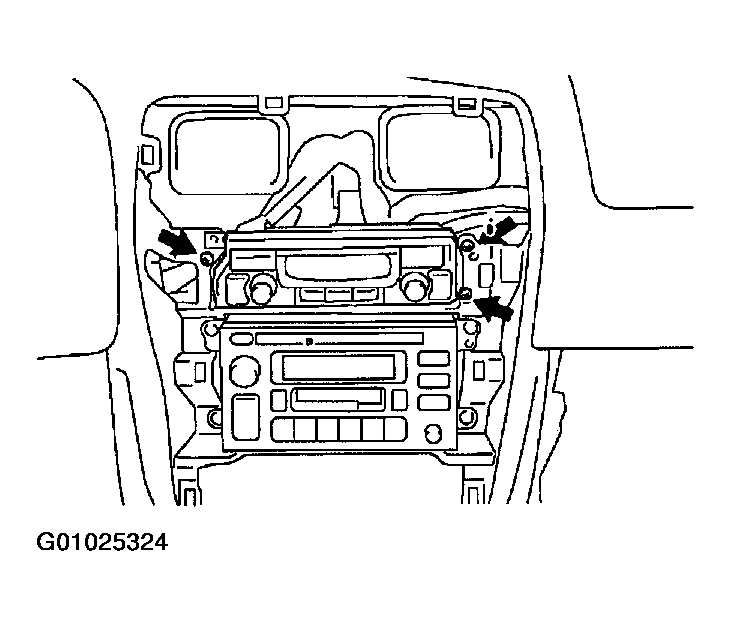

      Fig 1: Installing A/C Control Assembly
      G01025324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the A/C control assembly with the 3 screws, then connect the connector.
    2. Install the A/C control name plate.
  2. Install Center Cluster Finish Panel
  3. Install Upper Console Panel
  4. Install Parking Brake Hole Cover.  See Figure and Instrument Panel .
