Air Conditioning Control Assembly (Auto A/C): Disassembly

1. Remove the 2 screws.

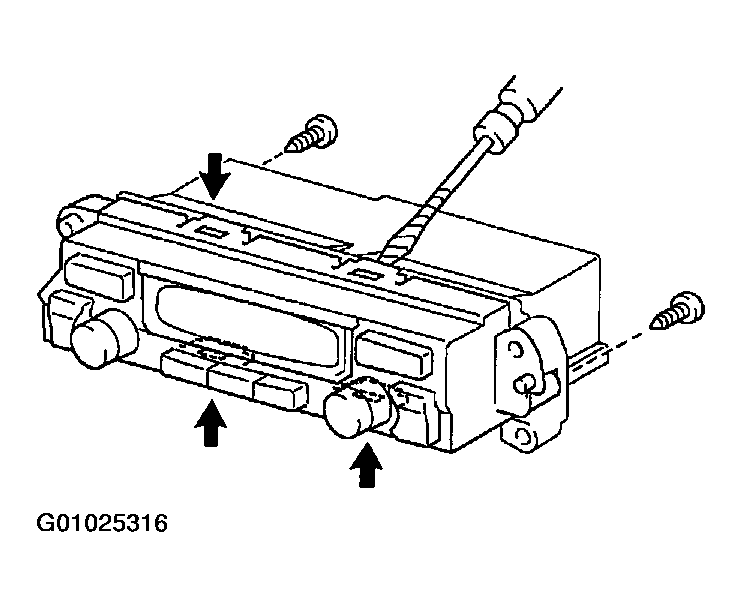

   Fig 1: Removing A/C Control Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the 4 claws.
   NOTE: Tape the screwdriver tip before use.
3. Unlock the connector's lock and pull out the flat harness from the A/C control panel.

1. Release the 4 claws and remove the holder.

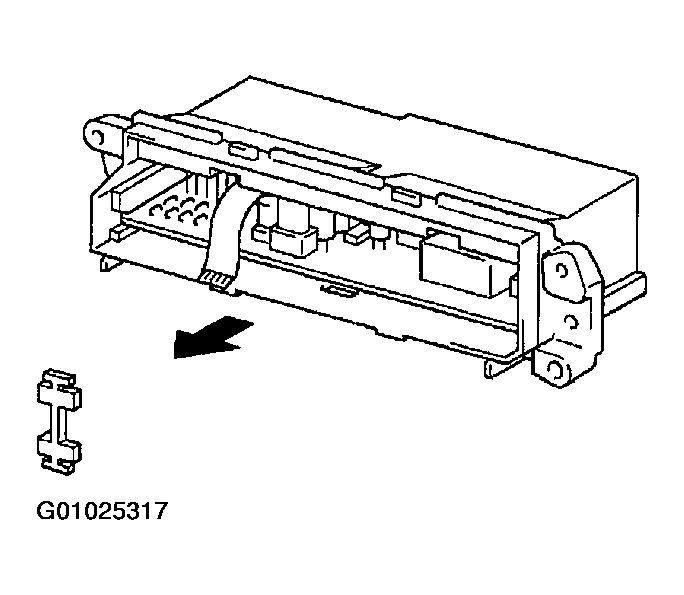

   Fig 2: Removing A/C Amplifier

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Hold the connector of amplifier and pull out the amplifier.

Using a screwdriver, turn the bulb to the left and pull out the bulb.

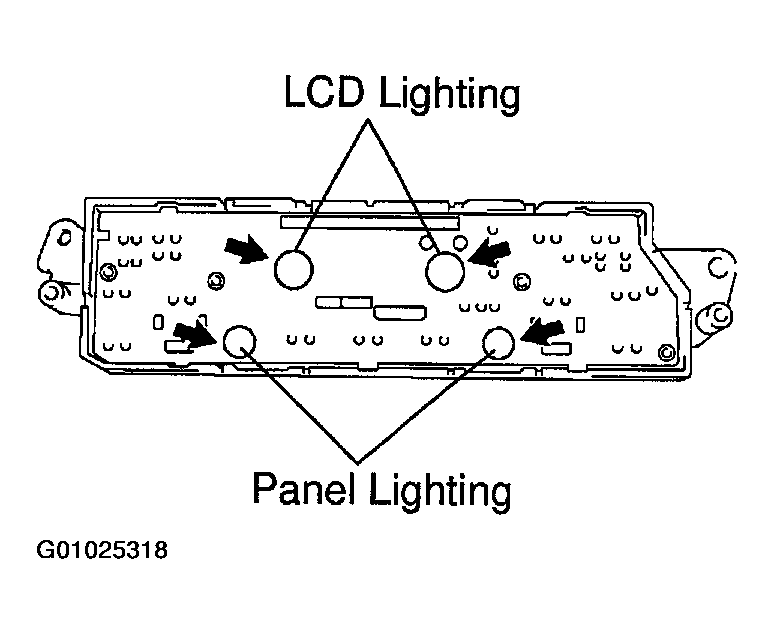

Fig 3: Displaying LCD & Panel Lighting

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
