Section 374 (Air Conditioning System): Condenser: Removal

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
REMOVE RECEIVER. SEE REMOVAL .
REMOVE LIQUID TUBE
Loosen the nut and remove the liquid tube.

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

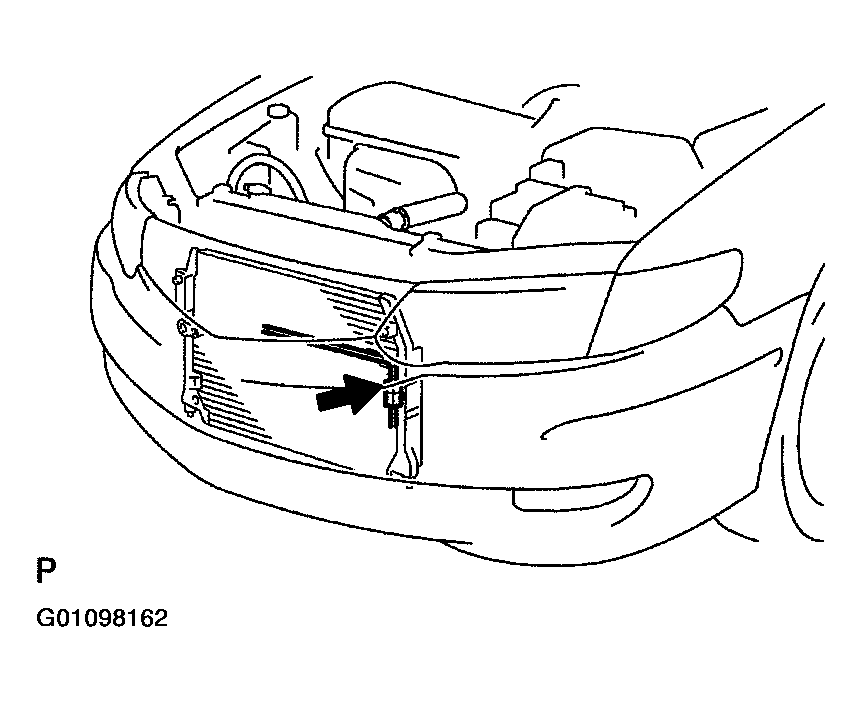

Fig 1: Removal (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT DISCHARGE HOSE
1. Remove the nut and disconnect the hose clamp.

  Fig 2: Removal (2 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and disconnect the discharge hose.
NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.
REMOVE ELECTRIC COOLING FANS
REMOVE CONDENSER
1. Remove the 2 bolts and relay block No. 3.

  Fig 3: Removal (3 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and 2 upper radiator supports.

  Fig 4: Removal (4 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 condenser set nuts.

  Fig 5: Removal (5 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Push the radiator toward engine.
5. Push the condenser toward radiator and pull it upward.
