Condenser Fan: Installation

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. 2AZ-FE: INSTALL CONDENSER FAN
    1. Install the condenser fan with the 3 bolts.

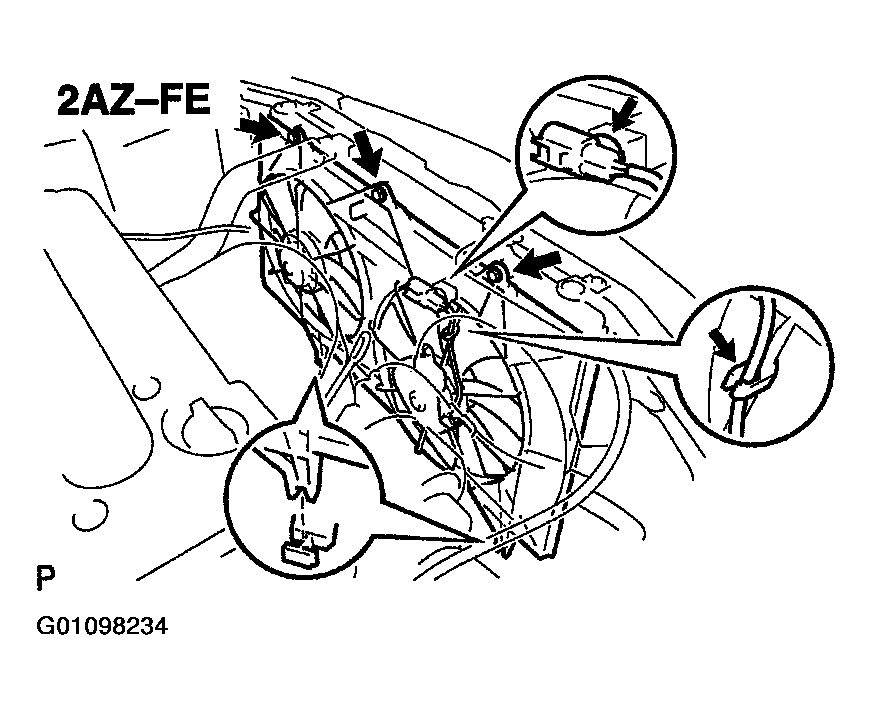

      Fig 1: Installing Condenser Fan (4-Cylinder)
      G01098234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N.m (50 kgf.Cm, 44 in.lbf)

    2. Connect the 2 connectors and reservoir tank hose.
  2. 1MZ-FE: INSTALL CONDENSER FAN
    1. Install the condenser fan with the 3 bolts.

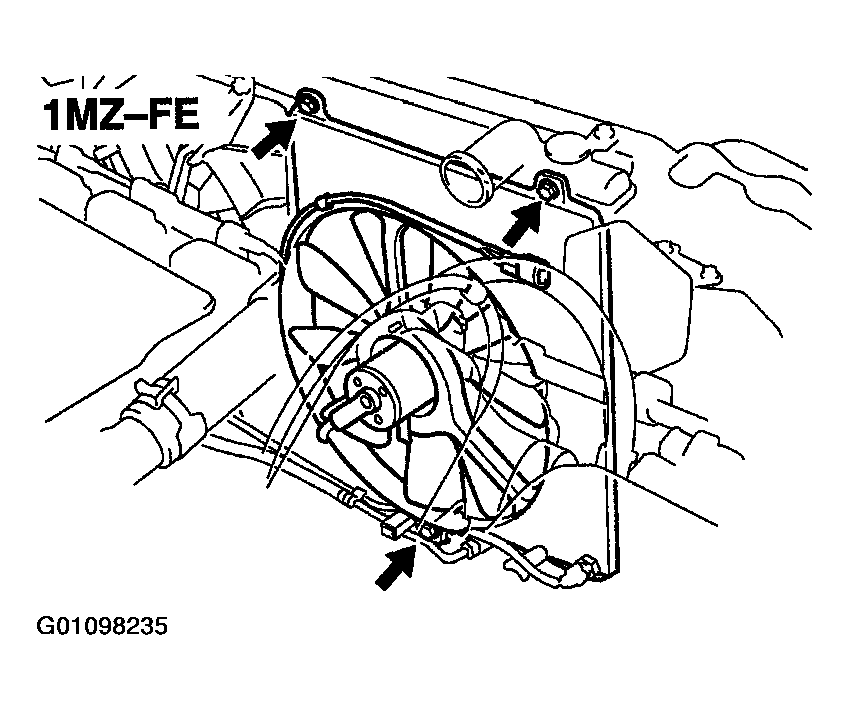

      Fig 2: Installing Condenser Fan (V6)
      G01098235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N.m (50 kgf.Cm, 44 in.lbf)

    2. Connect the connector.
  3. CONNECT RADIATOR UPPER HOSE
  4. FILL WITH ENGINE COOLANT
