Compressor And Magnetic Clutch: Components
WARNING:
This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

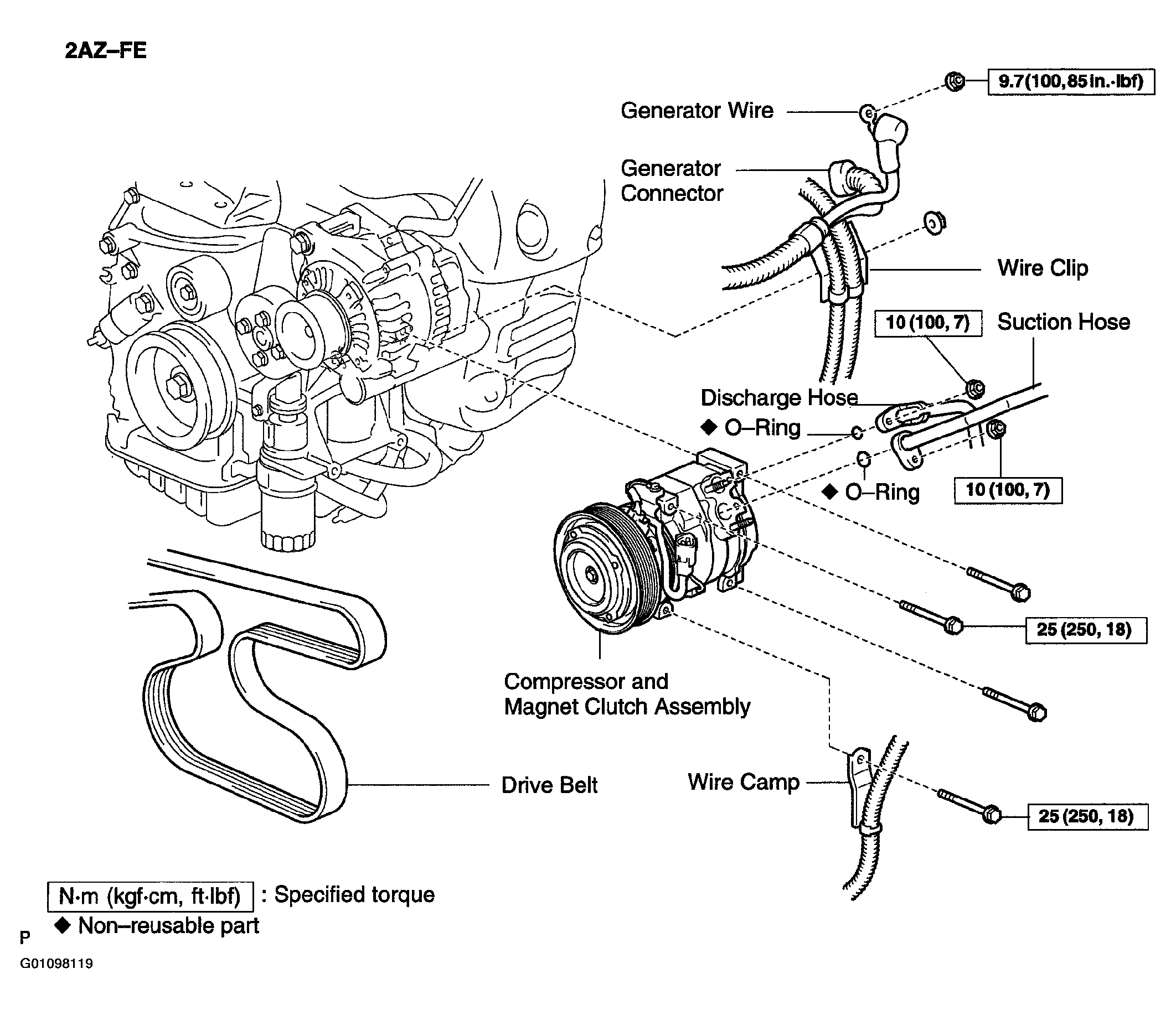

Fig 1: Compressor & Magnetic Clutch Components (4-Cylinder)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

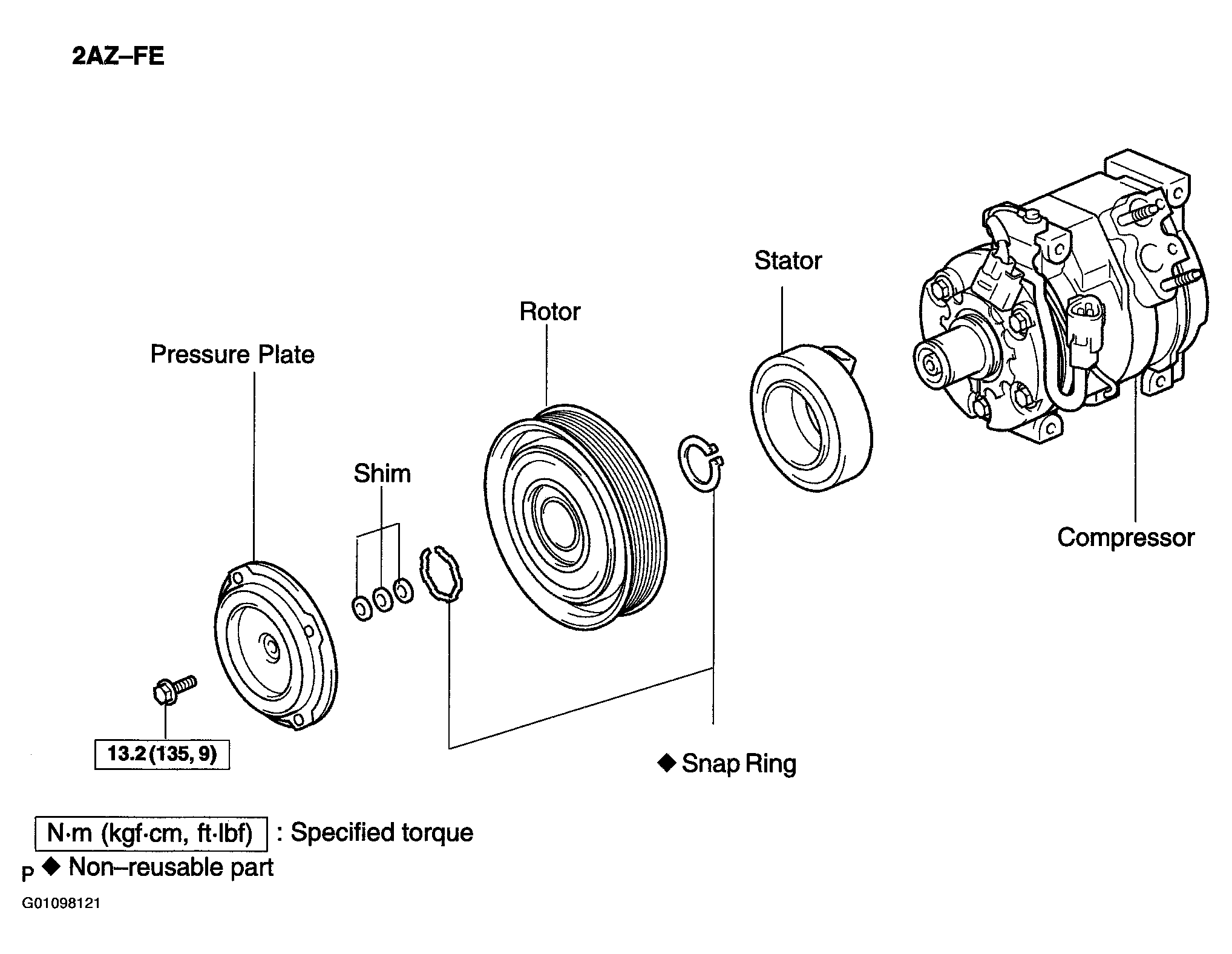

Fig 2: Compressor & Magnetic Clutch Components (V6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

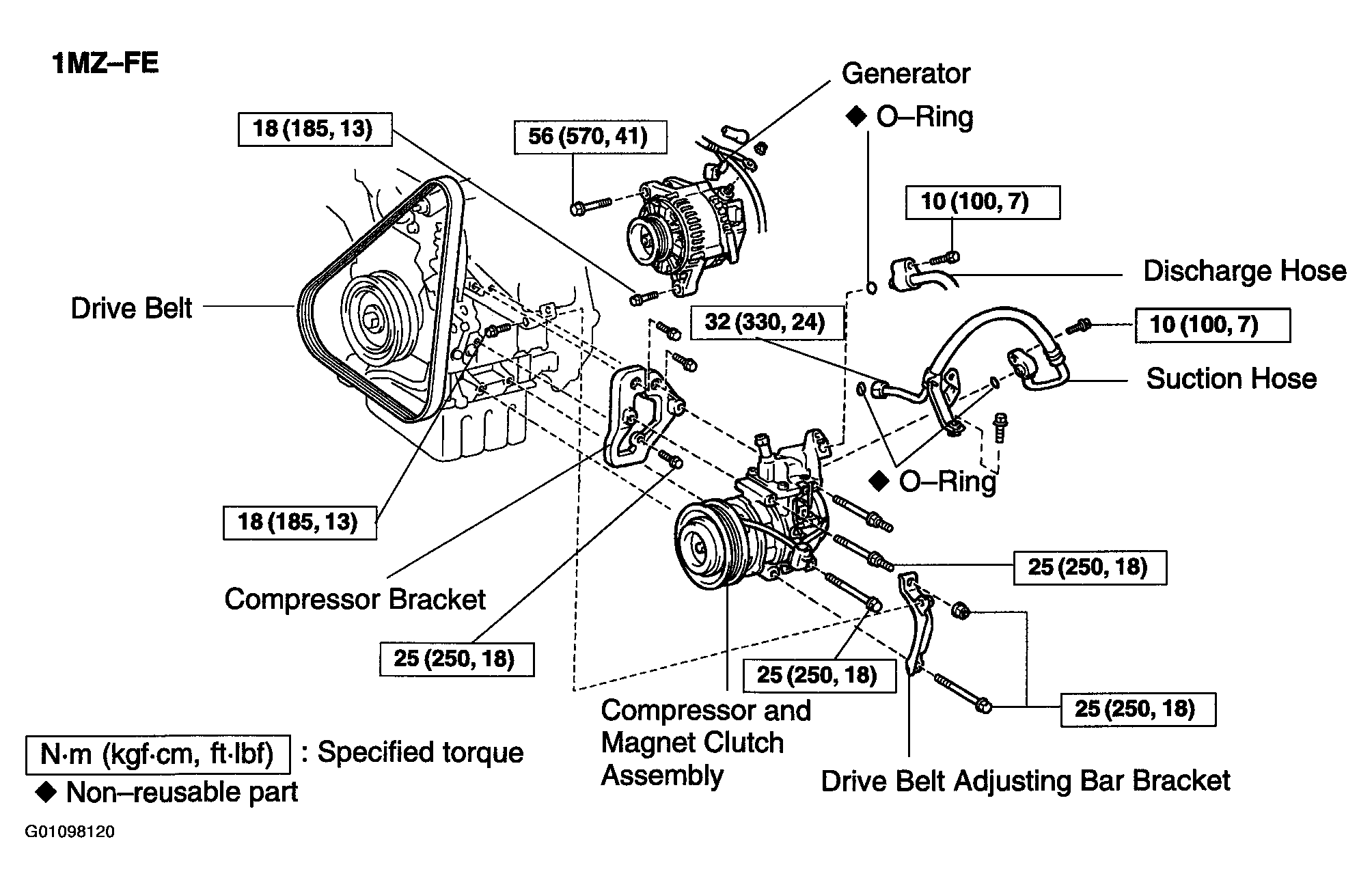

Fig 3: Compressor & Magnetic Clutch Components (4-Cylinder)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

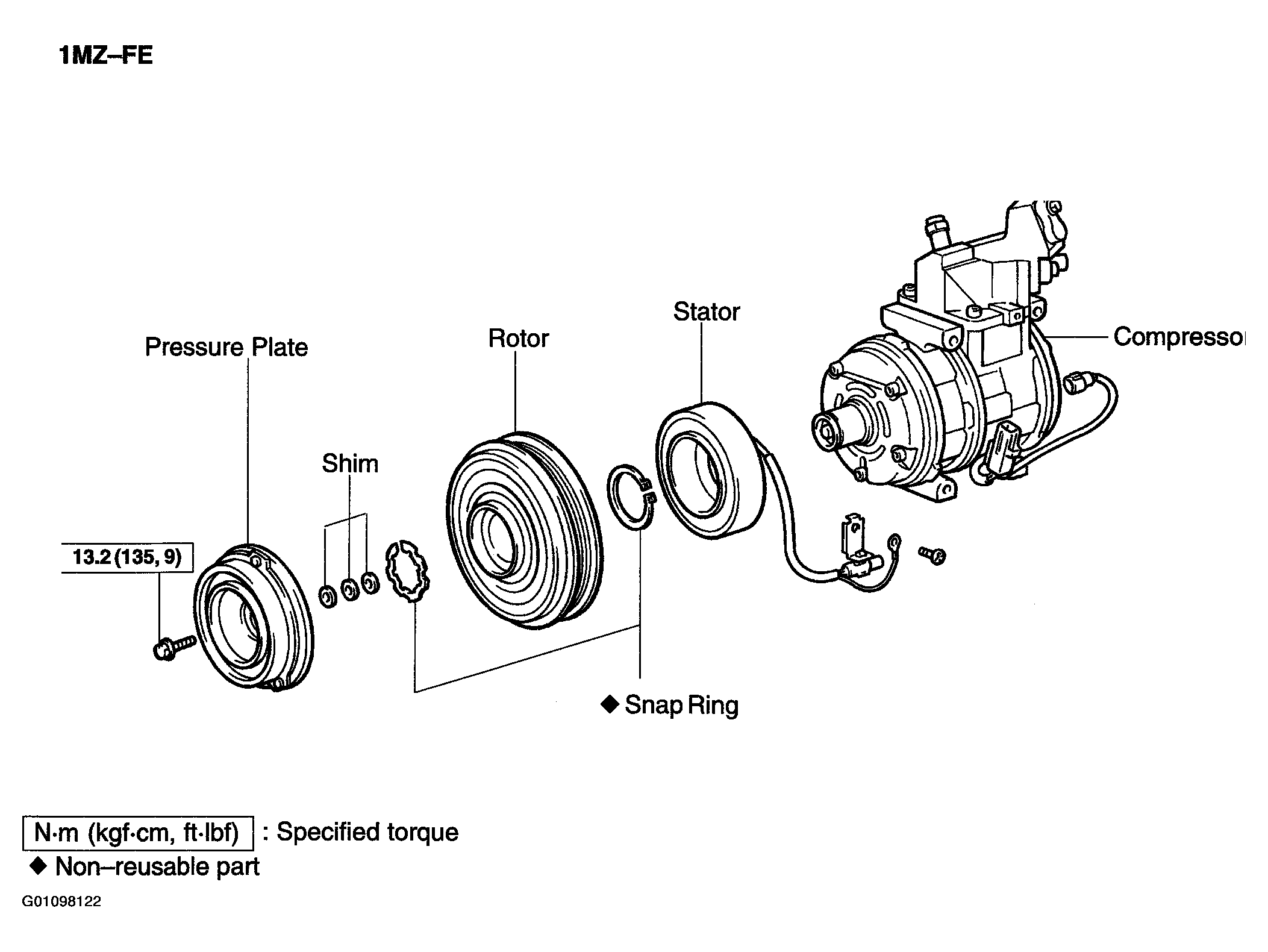

Fig 4: Compressor & Magnetic Clutch Components (V6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
