Blower Unit: Reassembly

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. MANUAL A/C: INSTALL BLOWER RESISTOR

    Install the blower resistor with the 2 screws.

  2. AUTO A/C: INSTALL BLOWER LO-RESISTOR

    Install the blower lo-resistor with the 2 screws.

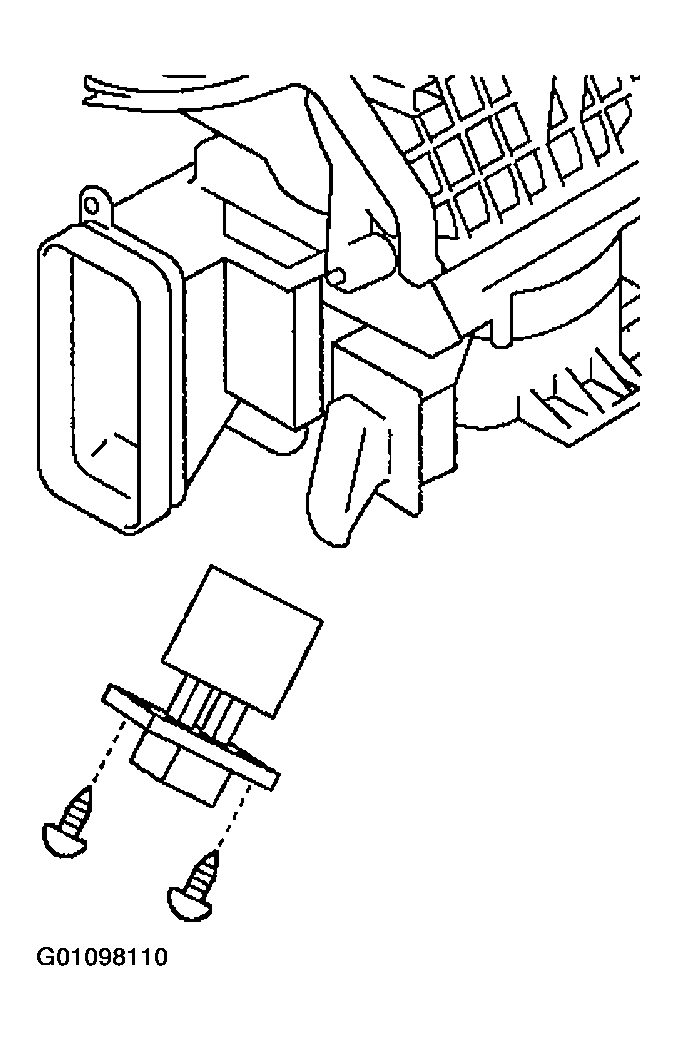

    Fig 1: Reassembly (1 Of 4)
    G01098110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BLOWER MOTOR

    Install the blower motor with the 3 screws.

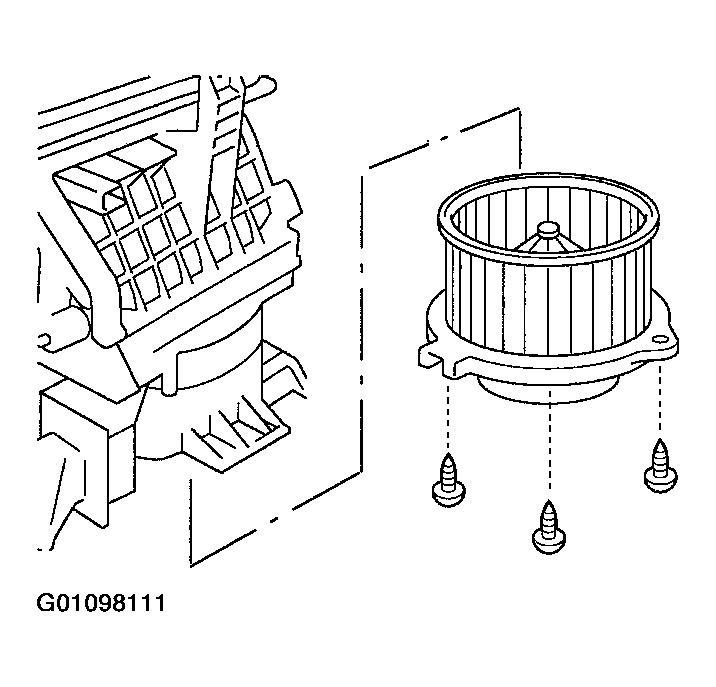

    Fig 2: Reassembly (2 Of 4)
    G01098111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. 1MZ-FE MANUAL A/C ONLY: INSTALL A/C AMPLIFIER

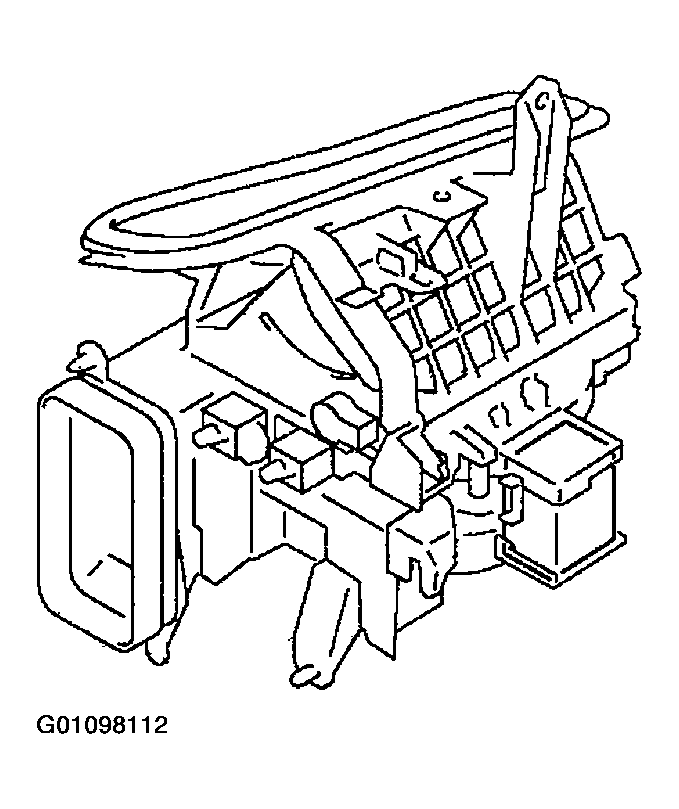

    Fig 3: Reassembly (3 Of 4)
    G01098112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL AIR INLET SERVOMOTOR
  1. Install the link to the servomotor.
  2. Install the servomotor with the 4 screws.

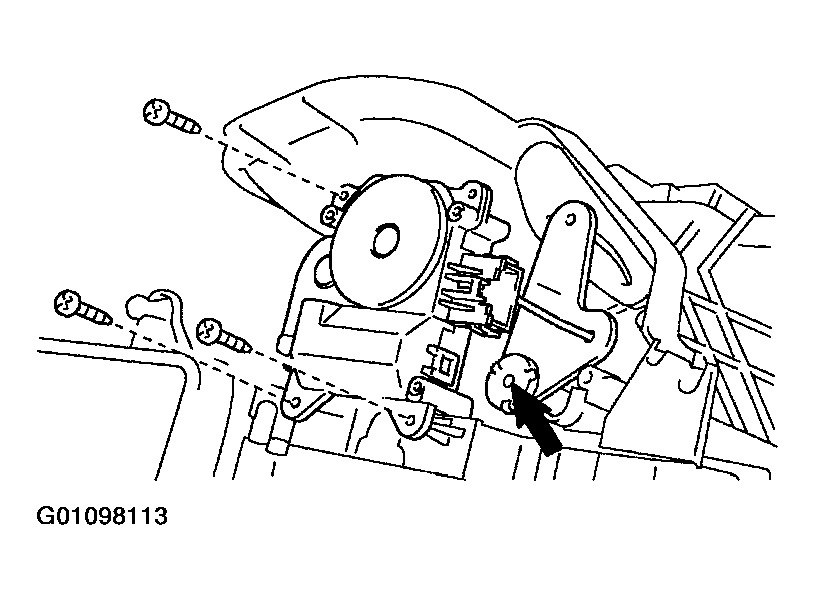

    Fig 4: Reassembly (4 Of 4)
    G01098113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
