Blower Unit: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

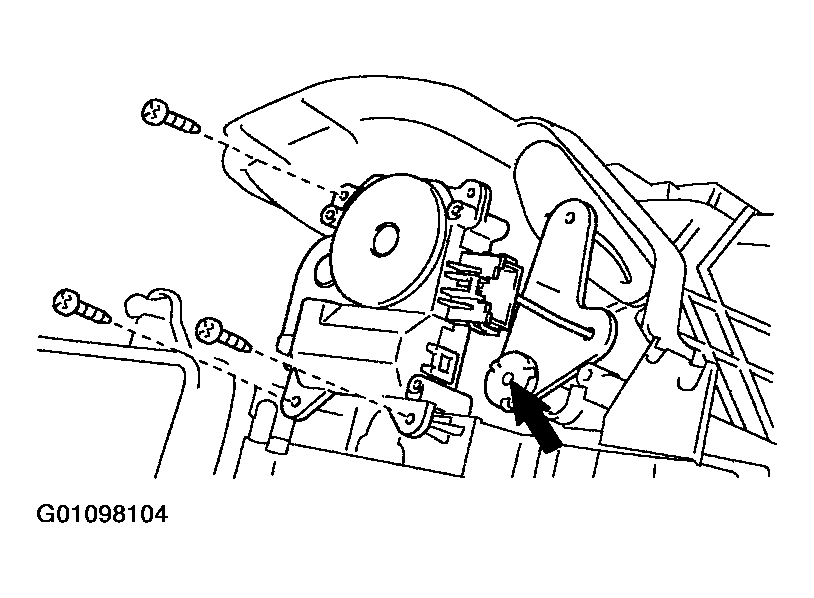

REMOVE AIR INLET SERVOMOTOR
1. Remove the 4 screws and servomotor with link.

  Fig 1: Disassembly (1 Of 5)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the claw and remove the link.
HINT:

Tape the screwdriver tip before use.

Fig 2: Disassembly (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

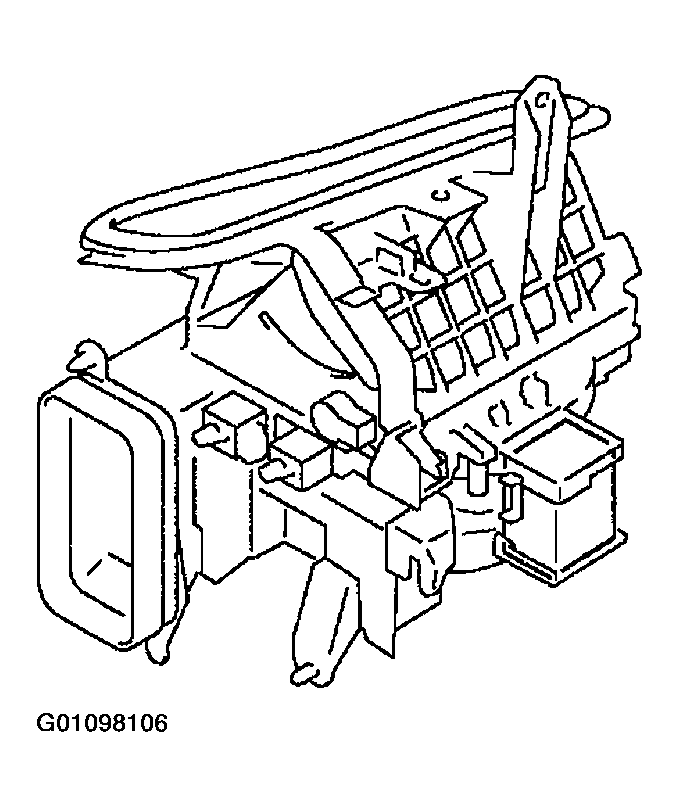

1MZ-FE MANUAL A/C ONLY: REMOVE A/C AMPLIFIER

Fig 3: Disassembly (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

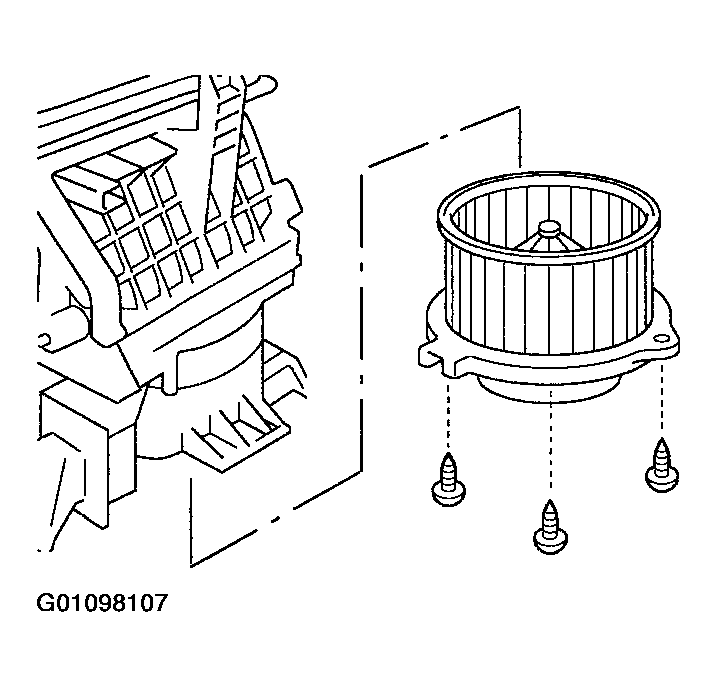

REMOVE BLOWER MOTOR
Remove the 3 screws and blower motor.

Fig 4: Disassembly (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

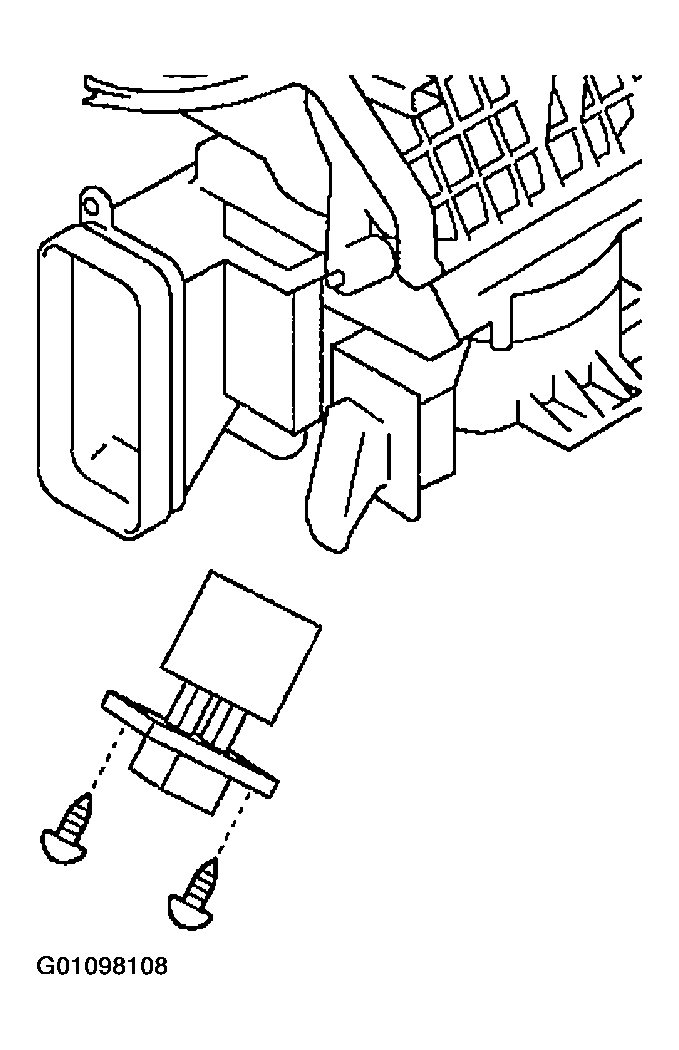

MANUAL A/C ONLY: REMOVE BLOWER RESISTOR
Remove the 2 screws and blower resistor.
AUTO A/C ONLY: REMOVE BLOWER LO-RESISTOR

Remove the 2 screws and blower lo-resistor.

Fig 5: Disassembly (5 Of 5)
