Air Conditioning Unit: Installation

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL A/C UNIT

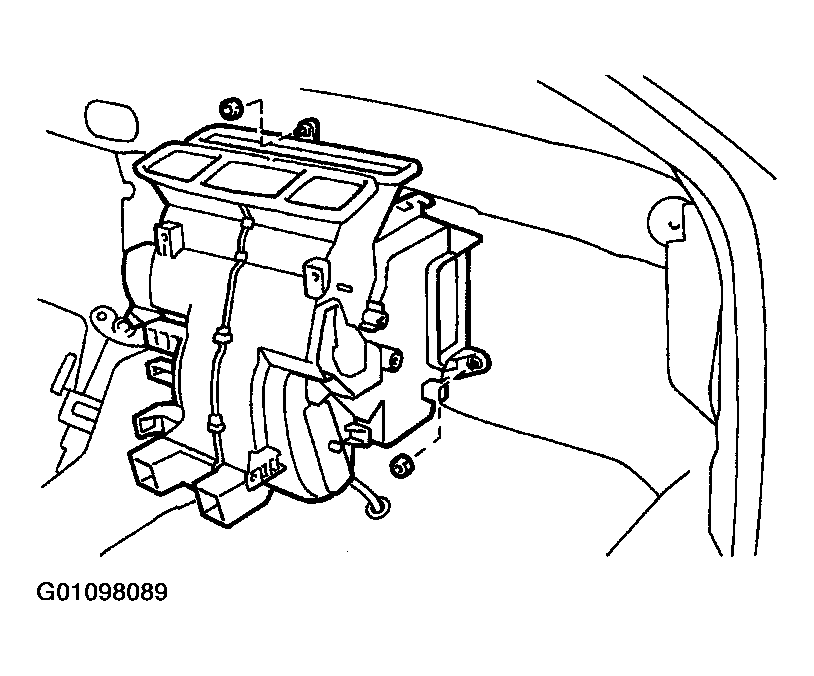

1. Install the A/C unit with the 2 nuts.

  Fig 1: Installation (1 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.

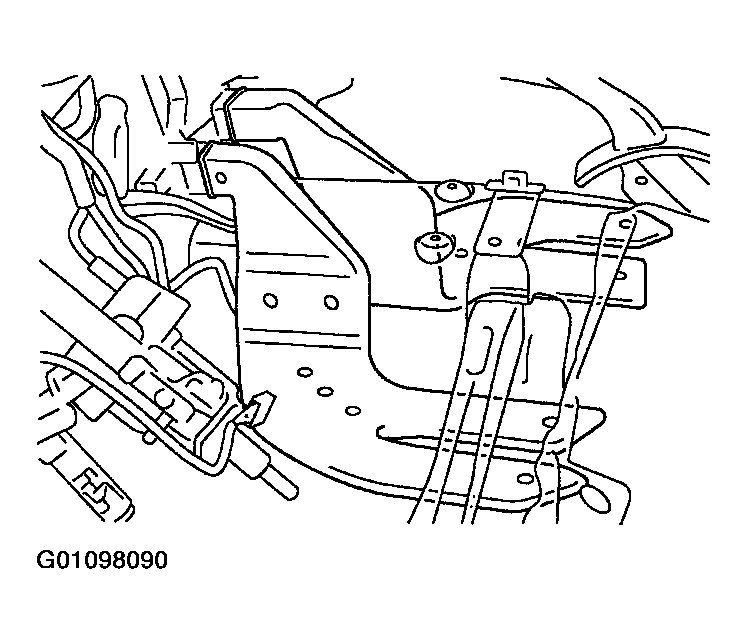

3. Install the 2 rear heater ducts.

  Fig 2: Installation (2 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the floor carpet.
INSTALL BLOWER UNIT

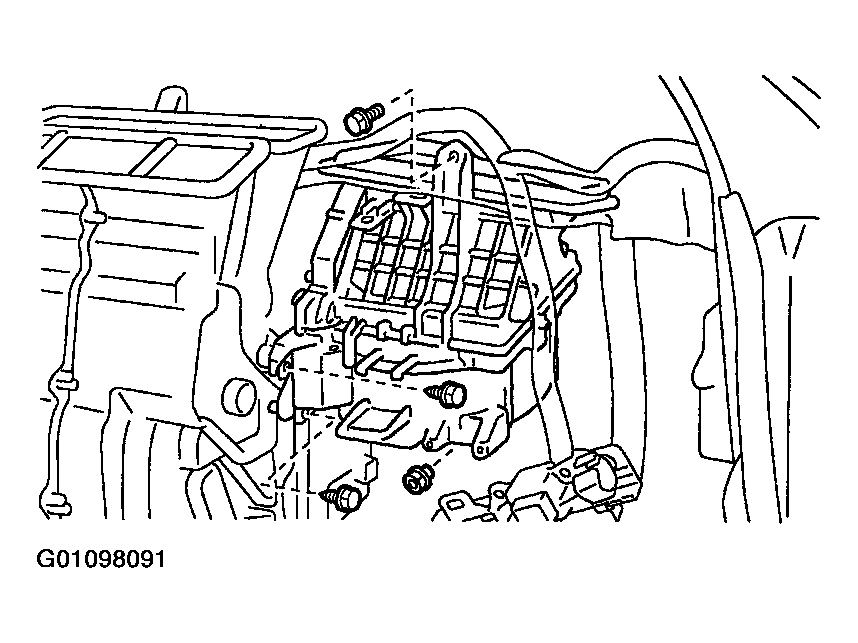

1. Install the blower unit with the bolt, nut and 2 screws.

  Fig 3: Installation (3 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the evaporator temperature sensor connector.
3. Connect the connectors.

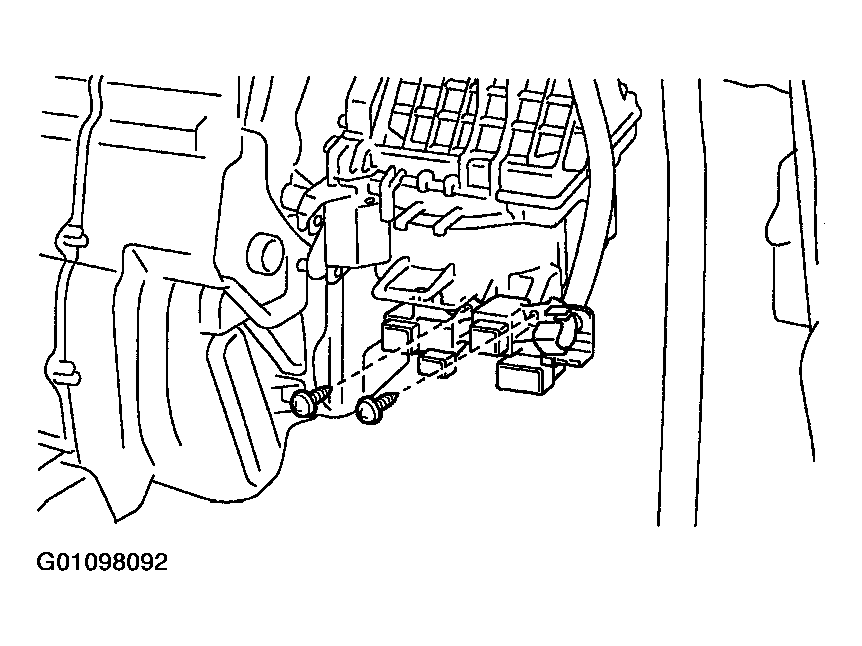

4. Install the 2 connector bracket set screws.

  Fig 4: Installation (4 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

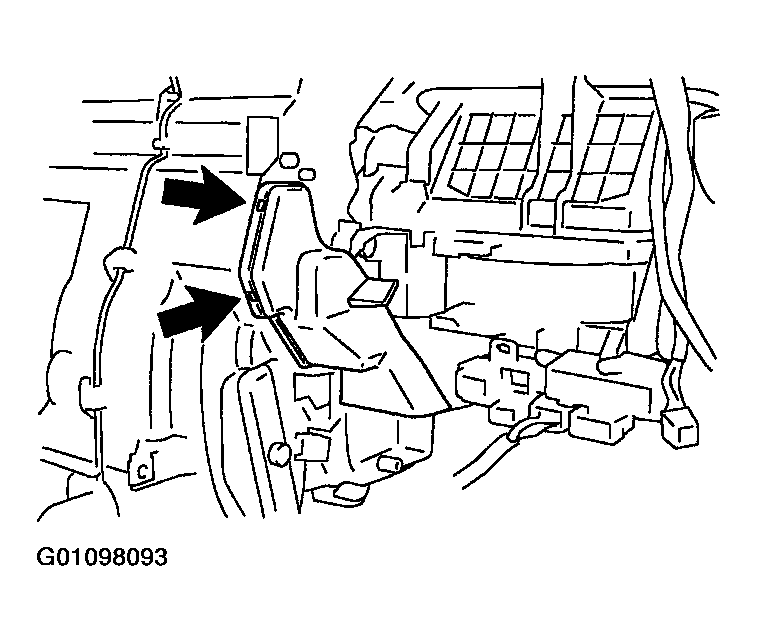

5. Install air duct RH.

  Fig 5: Installation (5 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REINFORCEMENT AND INSTRUMENT PANEL. SEE REMOVAL AND INSTALLATION .
CONNECT 2 WATER HOSES

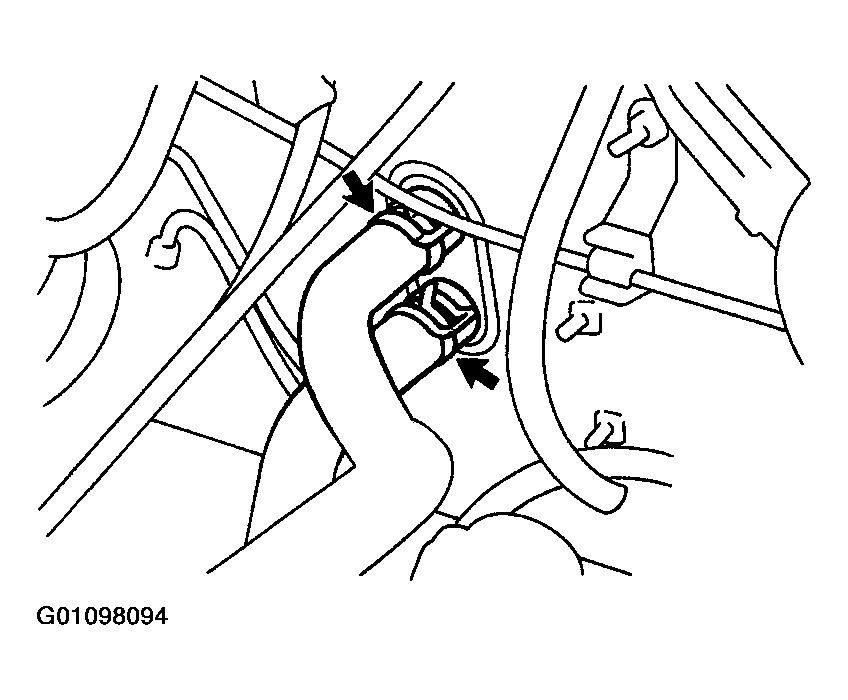

1. Push the water hose onto the heater radiator pipe as far as the second ridge on the pipe.

  Fig 6: Installation (6 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the hose clip in a position, as shown in Fig 7 .

  Fig 7: Installation (7 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT LIQUID AND SUCTION TUBES

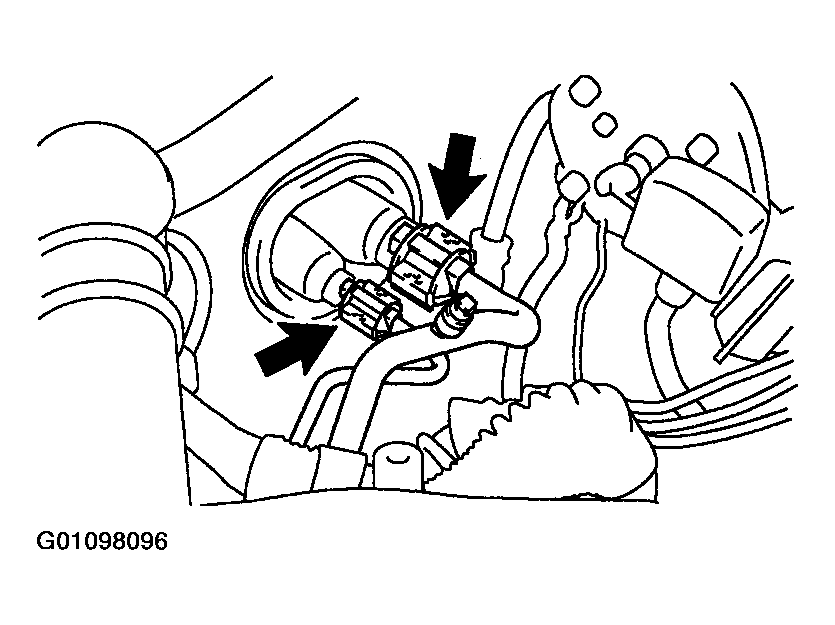

1. Lubricate 4 new O-rings with compressor oil and install them to the both tubes.
2. Connect the both tubes and install the piping clamps.

  Fig 8: Installation (8 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. After connection, check the fitting for claw of the piping clamp.

  Fig 9: Installation (9 Of 9)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL WITH ENGINE COOLANT
CHARGE SYSTEM WITH REFRIGERANT
1. Evacuate air from refrigeration system.
2. Charge system with refrigerant.
Specified amount: 800 +/- 50 g (28.22 +/- 1.76 oz.)
INSPECT FOR LEAKAGE OF REFRIGERANT

Using a gas leak detector, check for leakage of refrigerant.
