Timing Chain: Components

WARNING: This page is about a different car, the 2004 Toyota MR2, 2003 Toyota MR2, and 2002 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

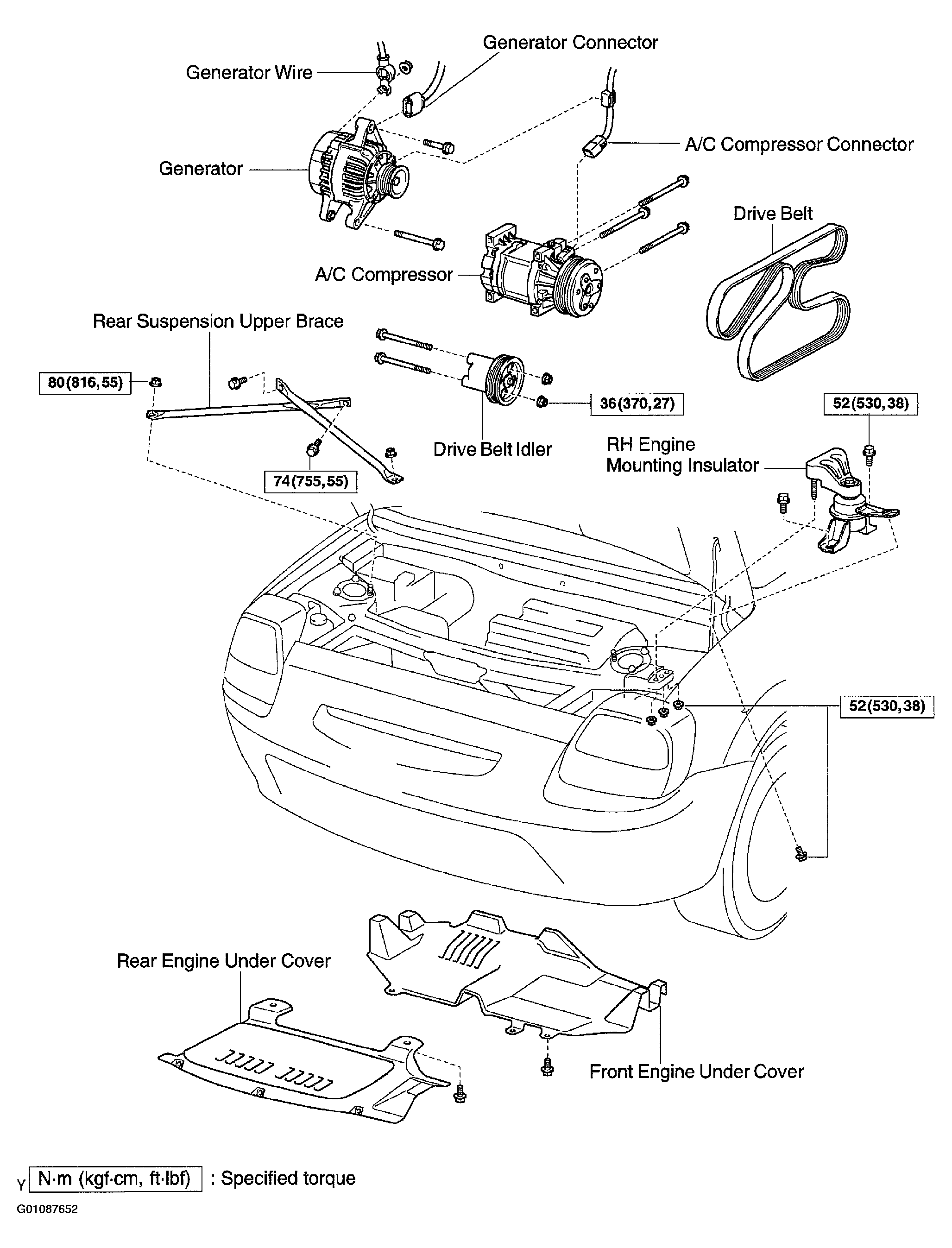

Fig 1: Identifying Engine Components To Remove (1 Of 2)
G01087652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

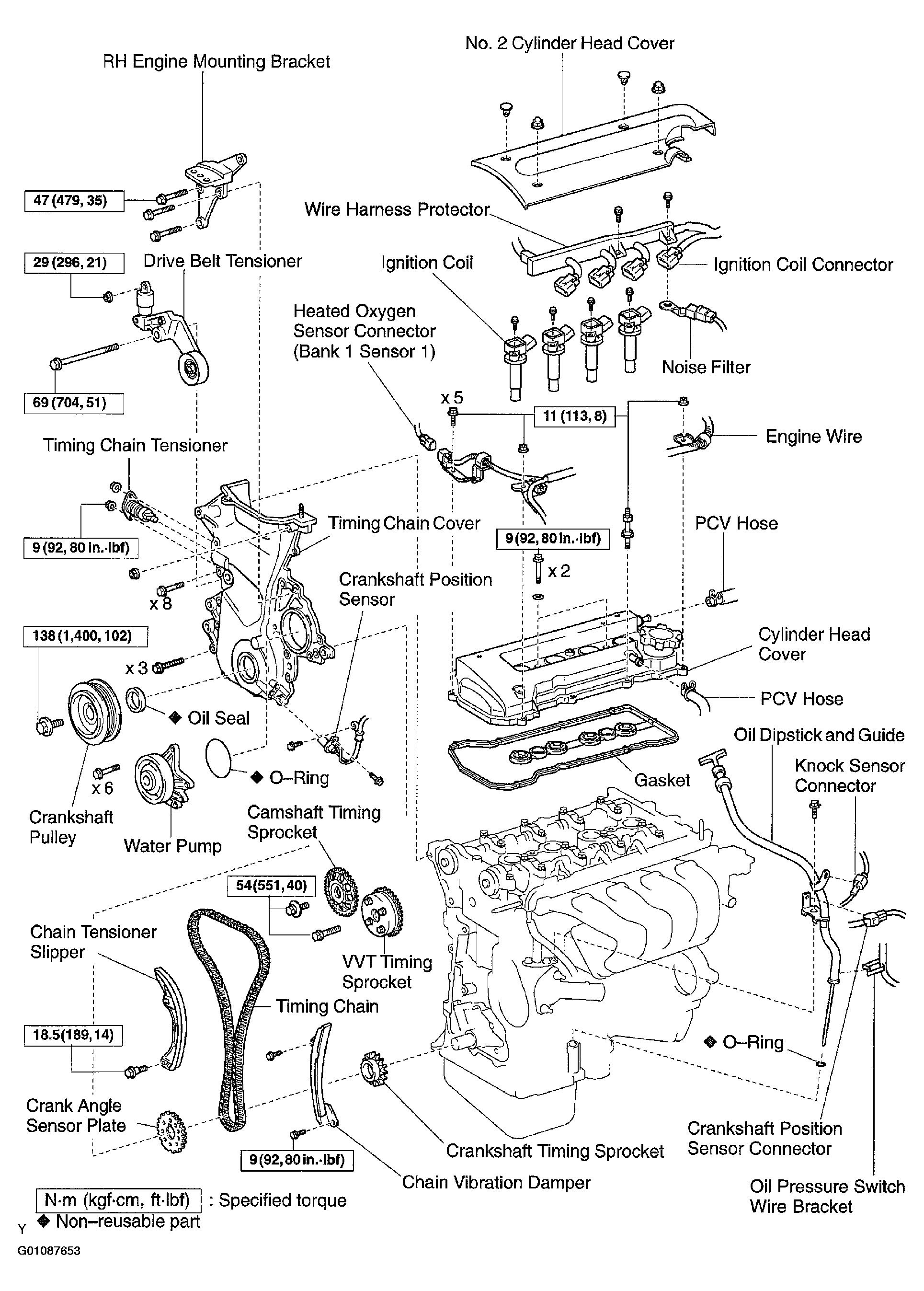

Fig 2: Identifying Engine Components To Remove (2 Of 2)
G01087653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
