Throttle Position Sensor: V6: 4Runner

Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor. Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 7.

Using ohmmeter, check resistance between terminals VC and E2 on TP sensor. See Fig 7. Replace throttle body if resistance is not 1200-3200 ohms at 68°F (20°C).

THROTTLE POSITION SENSOR RESISTANCE

Application

Throttle Position

Terminals

Ohms

Avalon ⁽¹⁾

Fully Closed

VTA & E2

200-6300

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Camry Solara ⁽¹⁾

Fully Closed

VTA & E2

200-6300

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Highlander

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5000

Sienna ⁽¹⁾

Fully Closed

VTA & E2

200-6300

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

Tacoma & Tundra ⁽¹⁾

Fully Closed

VTA & E2

200-5700

Fully Open

VTA & E2

2000-10,200

VC & E2

2500-5900

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

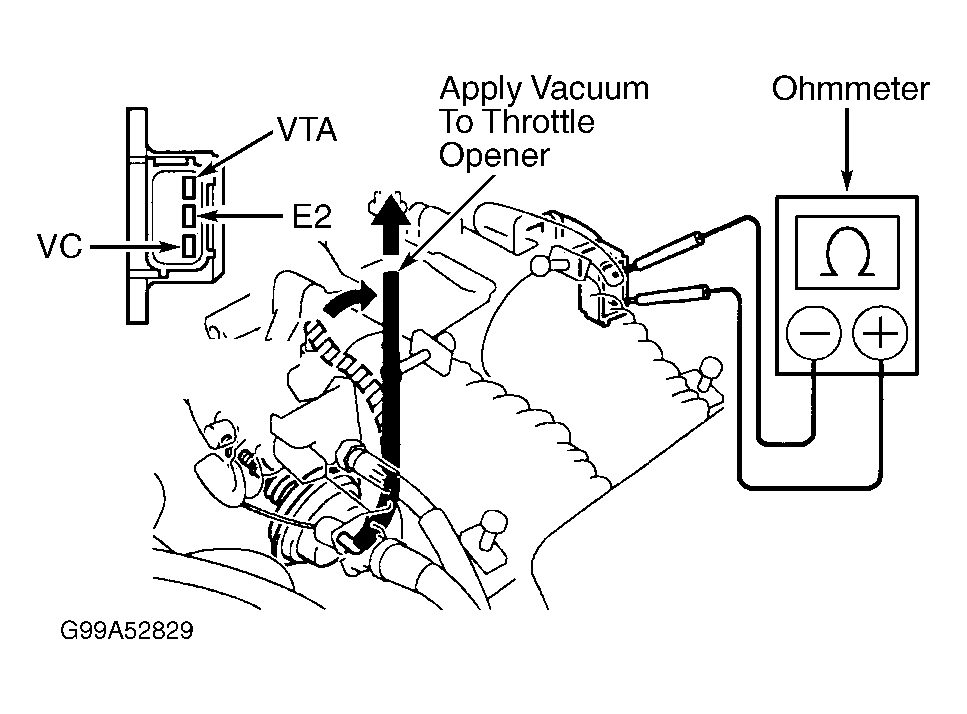

Fig 1: Identifying Throttle Position Sensor Terminals (Avalon)

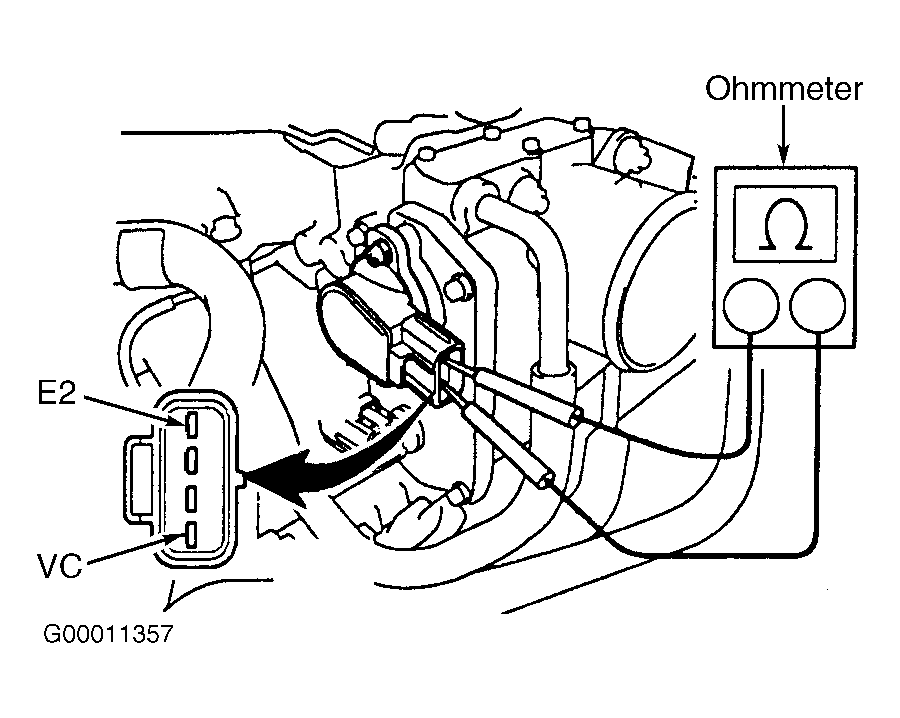

Fig 2: Identifying Throttle Position Sensor Terminals (Camry)

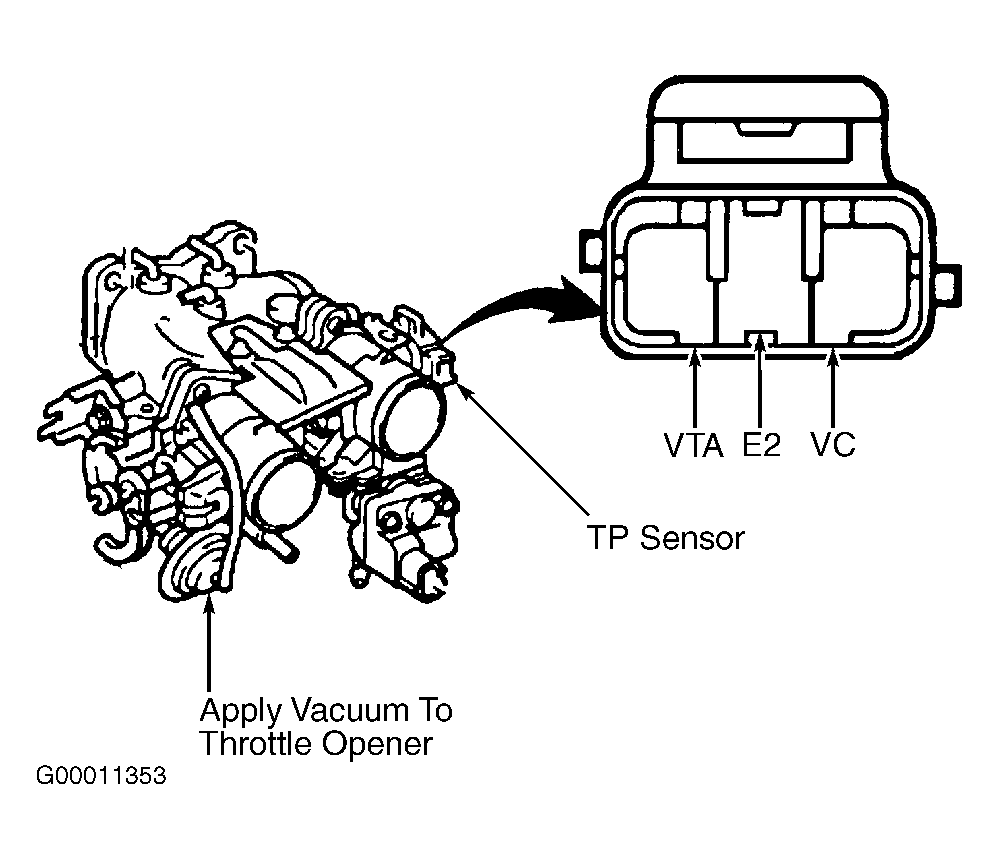

Fig 3: Identifying Throttle Position Sensor Terminals (Camry Solara)

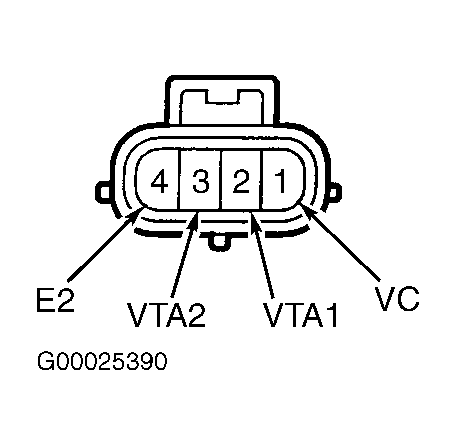

Fig 4: Identifying Throttle Position Sensor Terminals (Highlander)

Fig 5: Identifying Throttle Position Sensor Terminals (Sienna)

Fig 6: Identifying Throttle Position Sensor Terminals (Tacoma & Tundra V6)

Fig 7: Identifying Throttle Position Sensor Terminals (4Runner)
