Engine Cooling System: Thermostat: Components

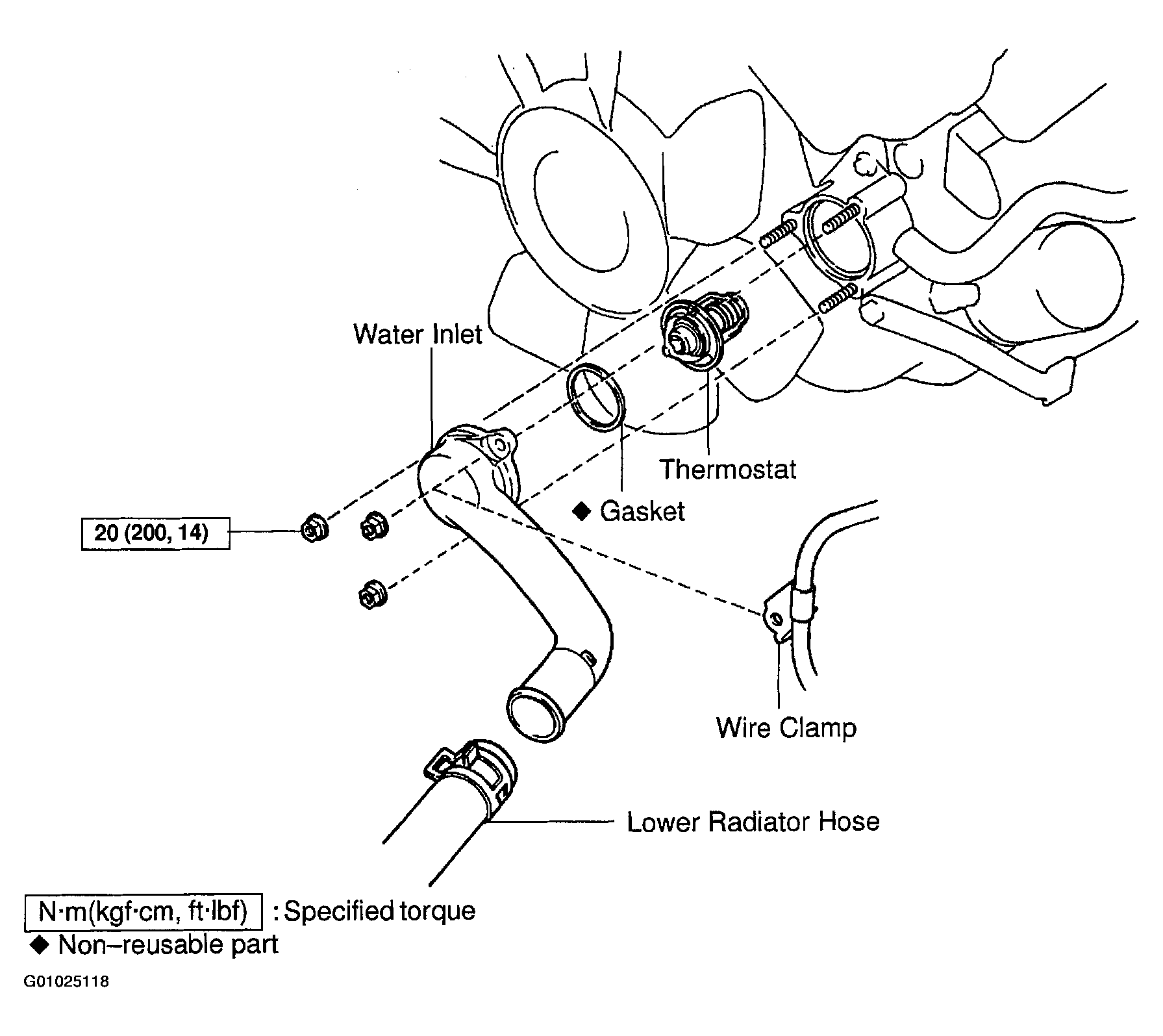

Fig 1: Identifying Thermostat Components

G01025118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
