Engine Cooling System: Radiator: Components

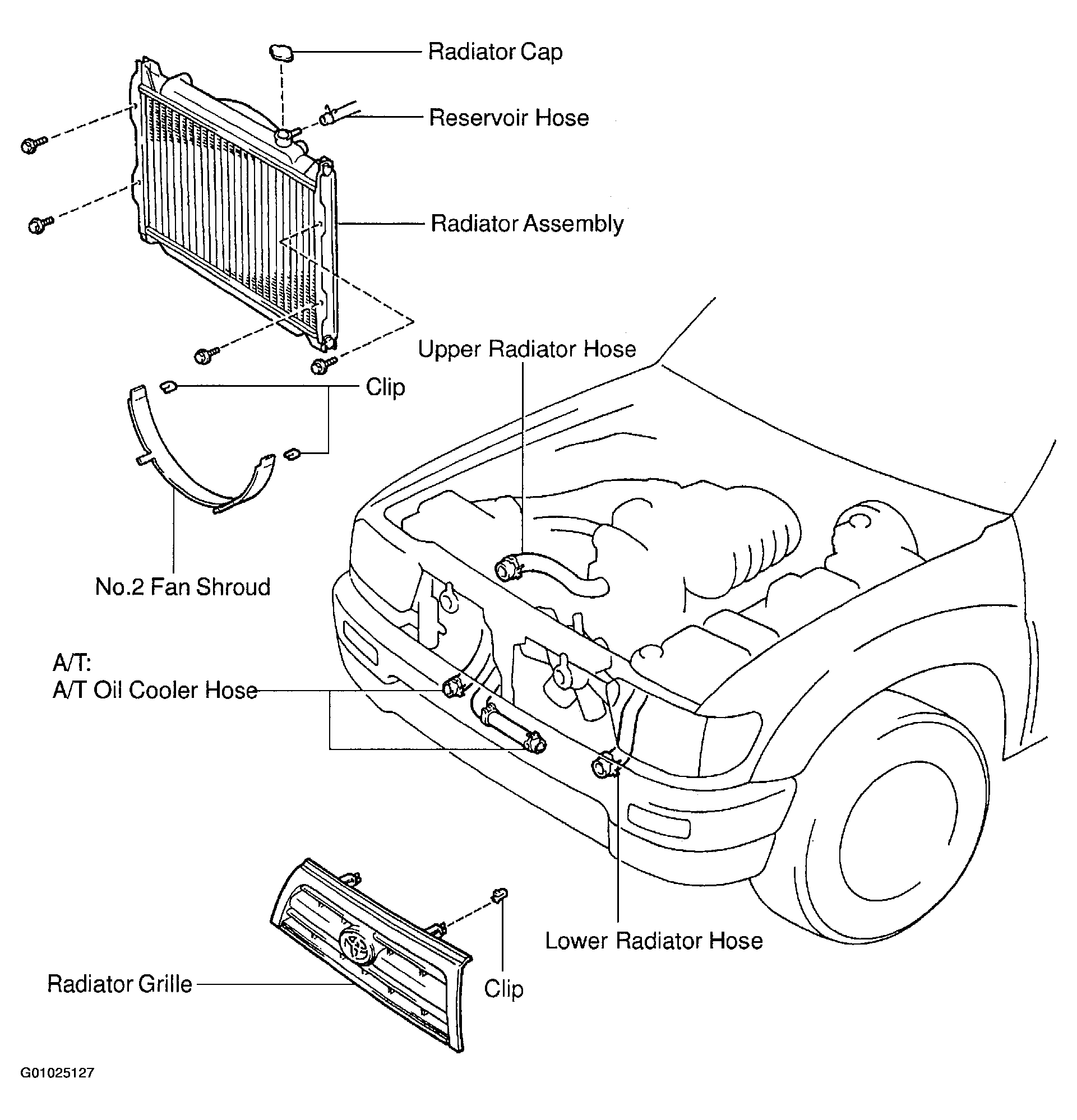

Fig 1: Identifying Components For Radiator Removal
G01025127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

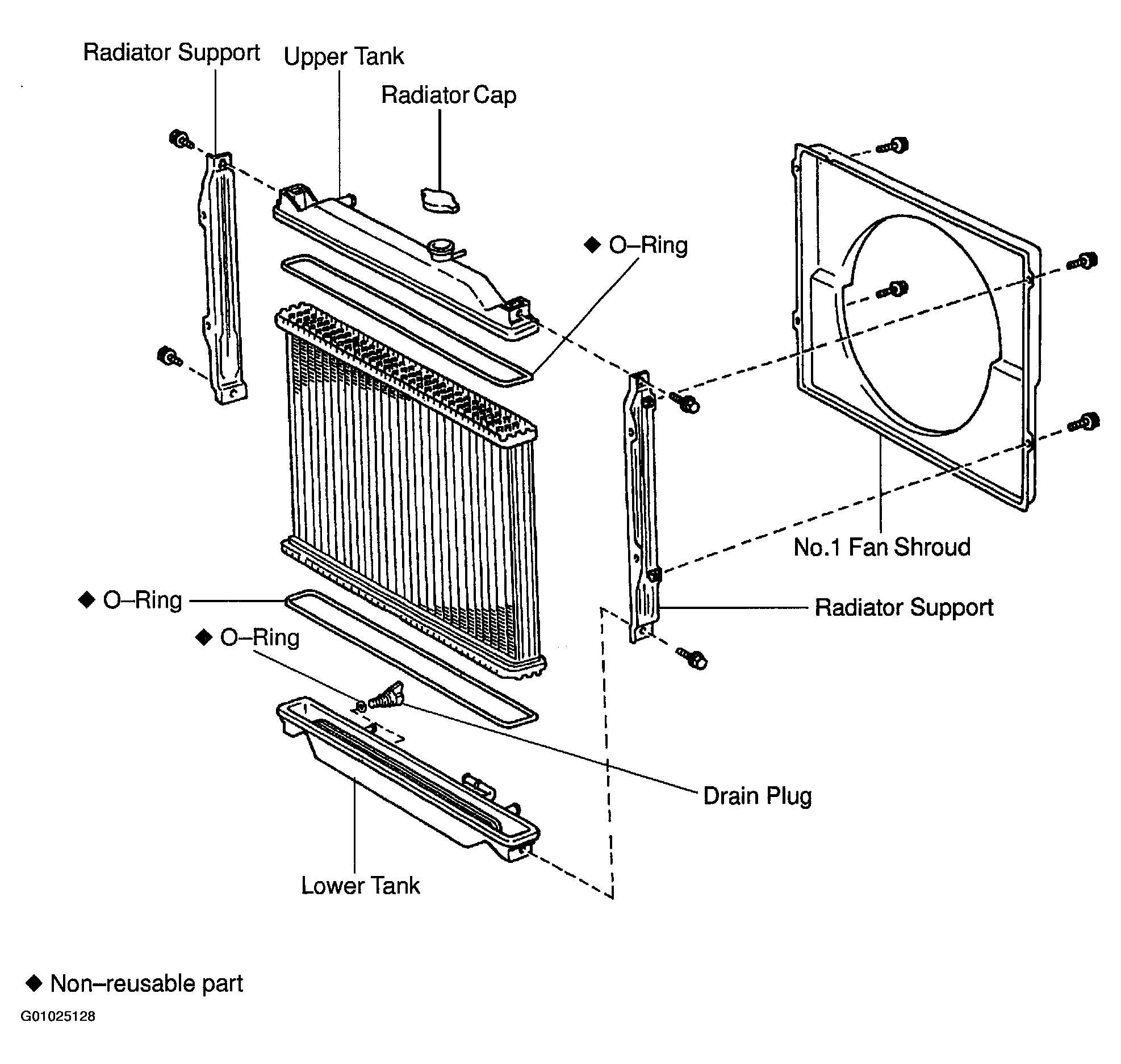

Fig 2: Disassembling Radiator
G01025128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
