Front Differential Carrier: Components

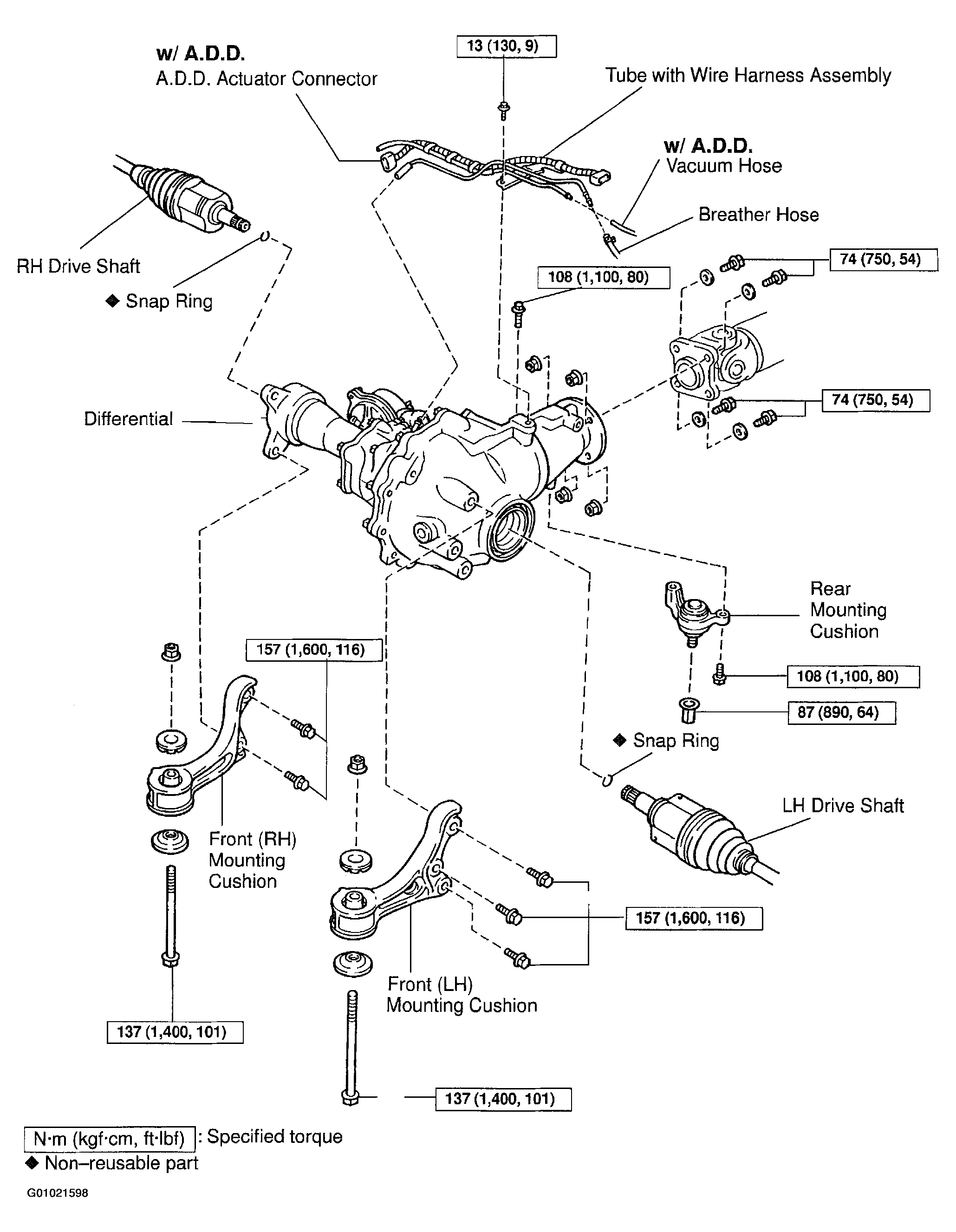

Fig 1: Identifying Front Differential Carrier Components
G01021598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

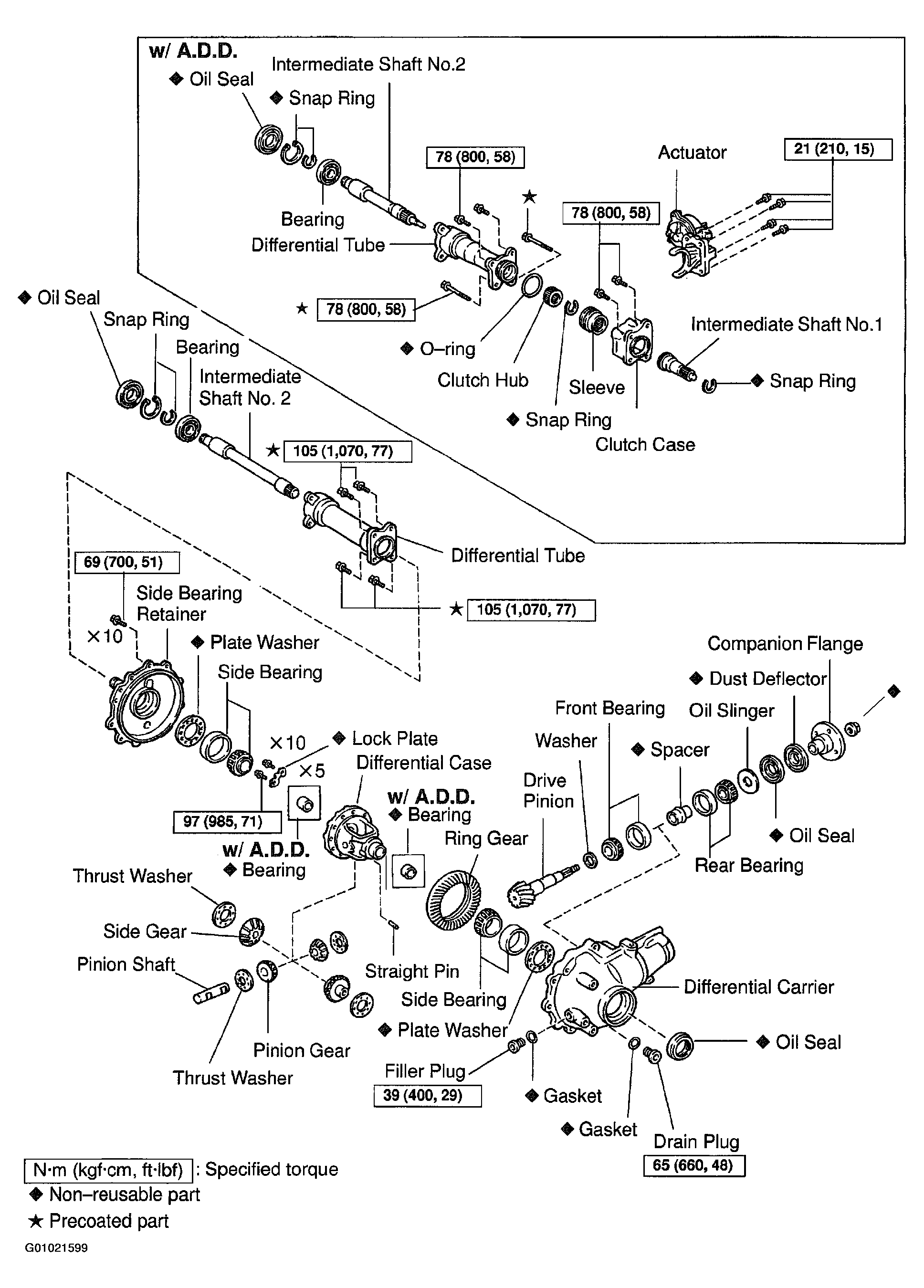

Fig 2: Exploded View Of Front Differential Carrier & Tube
G01021599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
