Wireless Door Lock Control System: Location

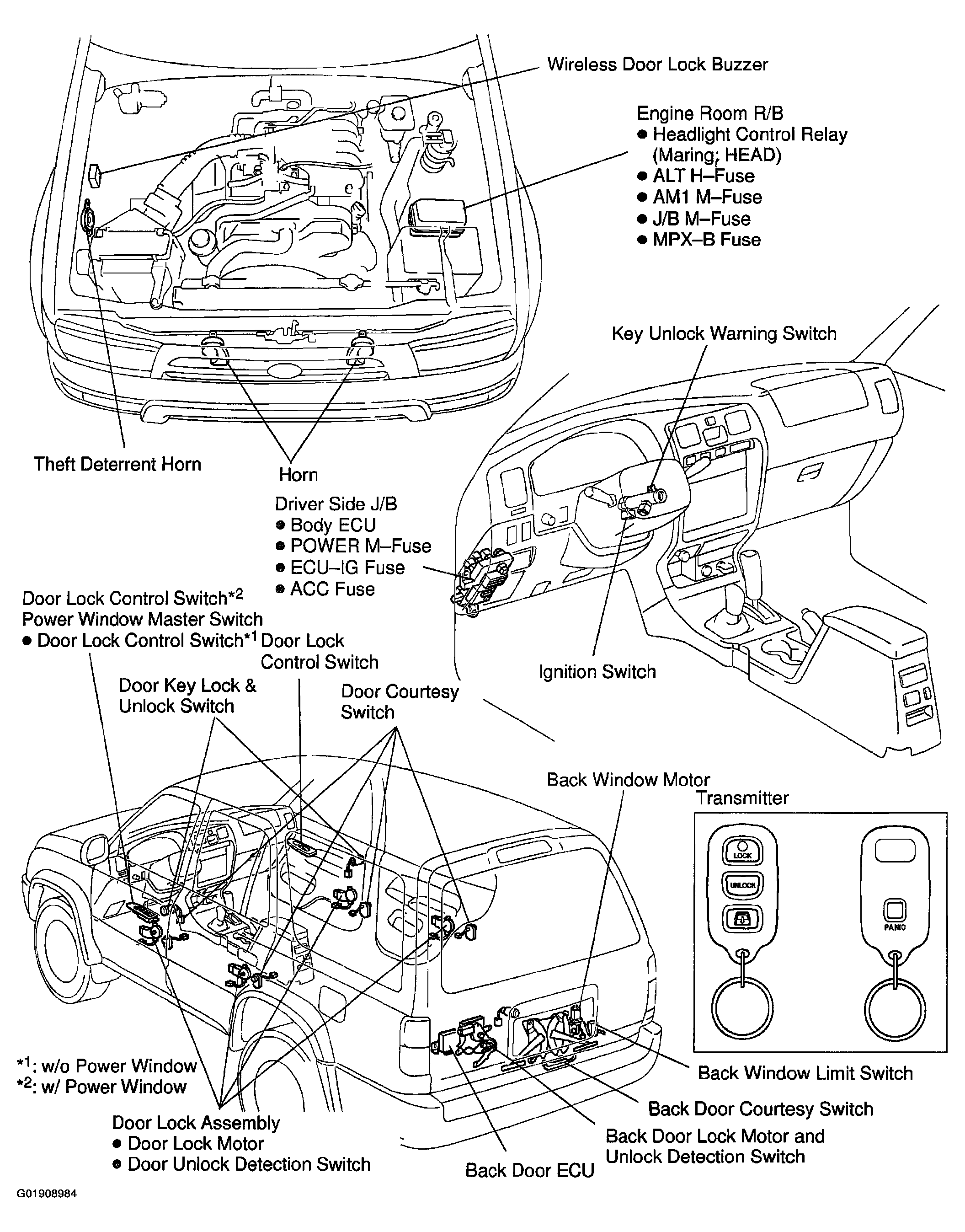

Fig 1: Locating Wireless Door Lock Control System Components

G01908984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
