Automatic Rearming

When you unlock the doors using the remote control, the RS3200 PLUS is DISARMED at the same time. However, if you do not open a door or the trunk within 30 seconds, the keyless entry system will relock the doors and the RS3200 PLUS will Rearm 30 seconds later.

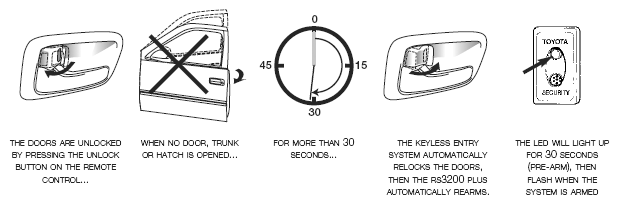

How the RS3200 PLUS automatically Rearms:

G06742998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
