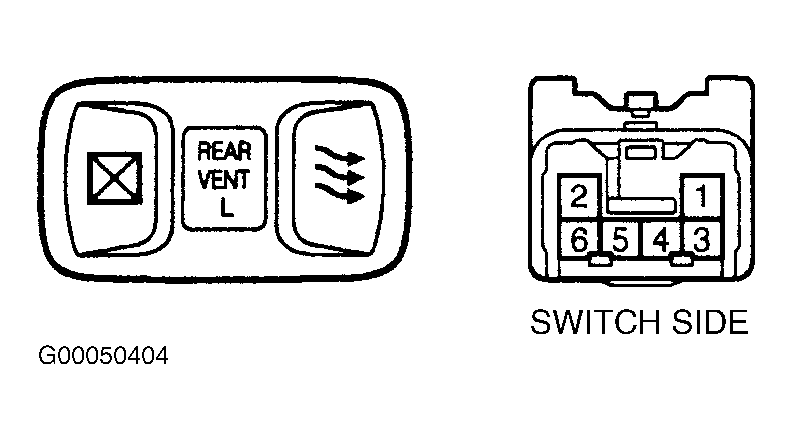

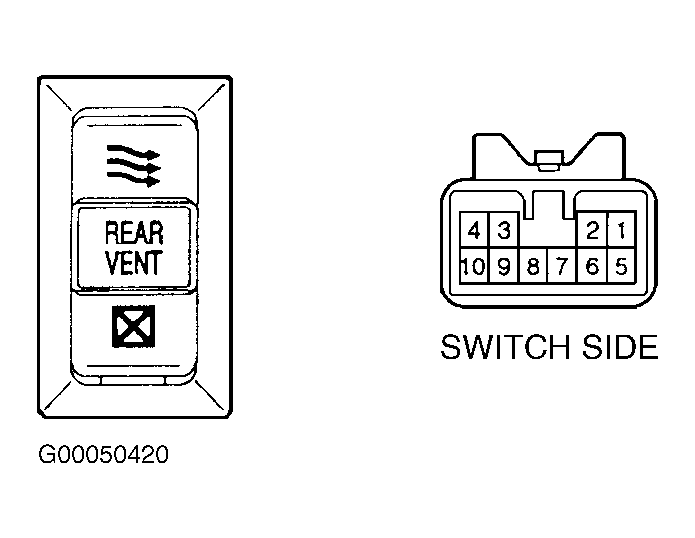

Disconnect power quarter window switch. Test switch for continuity. See POWER QUARTER WINDOW SWITCH CONTINUITY TEST . See Fig 1 and Fig 2 . Continuity should exist between specified terminals. If continuity is not as specified, replace switch.
POWER QUARTER WINDOW SWITCH CONTINUITY TEST
| Application & Switch Position | Test Between Connector Terminals No. | |
|---|---|---|
| Land Cruiser | ||
| OPEN | 3 & 4; 5 & 6 | |
| OFF | ..... | |
| CLOSED | 3 & 6; 4 & 5 | |
| Illumination Circuit | 1 & 2 | |
| Sienna | ||
| OPEN | 3 & 8; 6 & 7 | |
| OFF | 6 & 7; 8 & 9 | |
| CLOSED | 3 & 7; 8 & 9 | |
| Illumination Circuit | 1 & 5 | |
