Terminals Of Ecu
Terminals Of Ecu

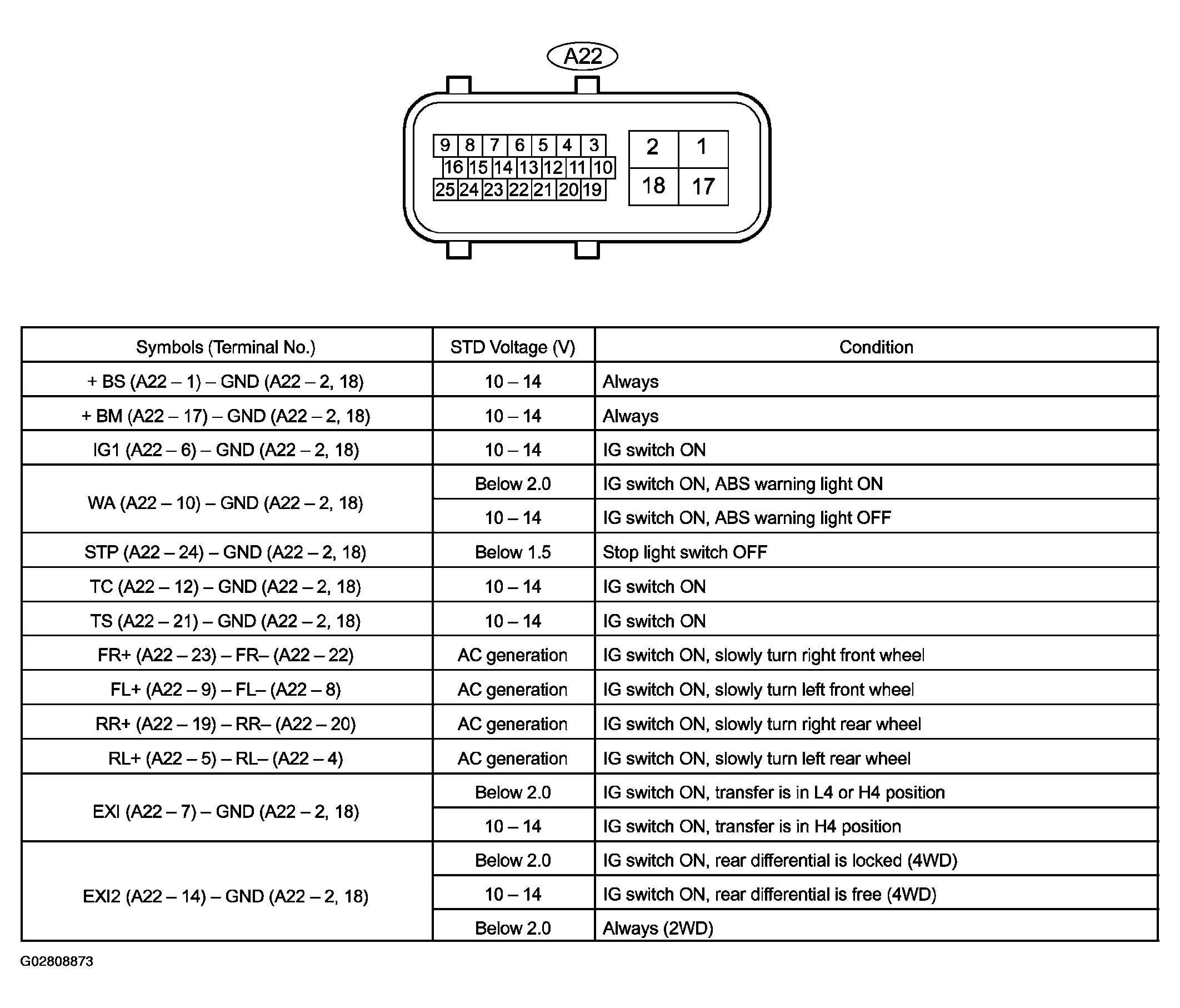

Fig 1: Identifying Connector Terminals Of ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
