Remove Speed Sensor

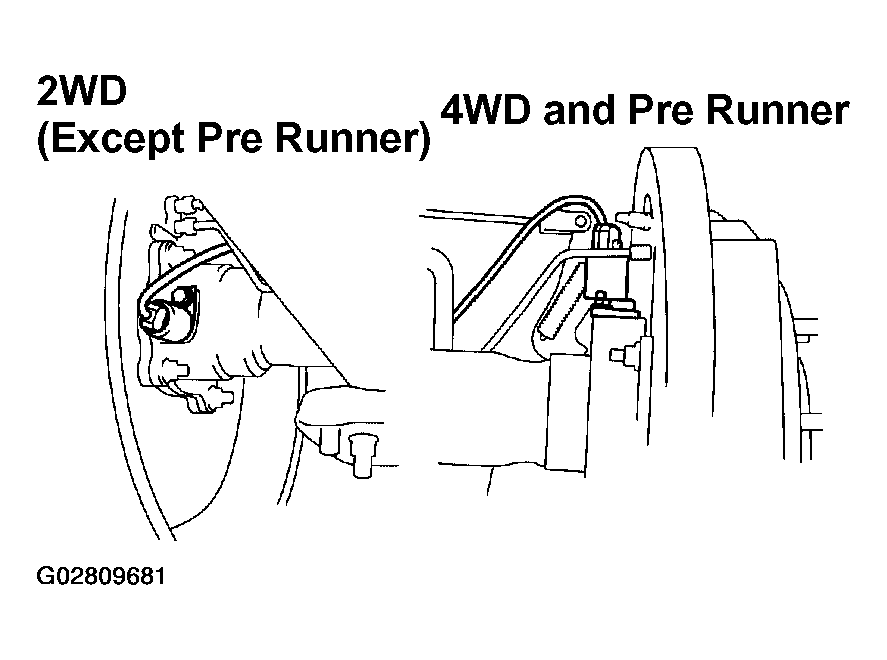

- Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.
- Remove the 5 resin clips, 2 clamp set bolts and 2 nuts holding the sensor wire harness from the side rail, fuel tank and axle housing.
Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)
- There are no objects on the sensor or the part of the axle end to which the sensor is to be installed.
- The sensor is installed flat against the axle end when you tighten the bolt.
- When installing the resin clips, use new ones.
- Remove the 2 mounting bolts and speed sensor.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
NOTE:
At the time of installation, please refer to the following items.
