Front Brake Speed Sensor: Components

NOTE:

Pre runner is the described below.

RZN191L-TRPDKAB

RZN196L-CRPDKAB

RZN196L-PRPDKAB

VZN195L-CRPDKAB

VZN195L-PRPDKAB

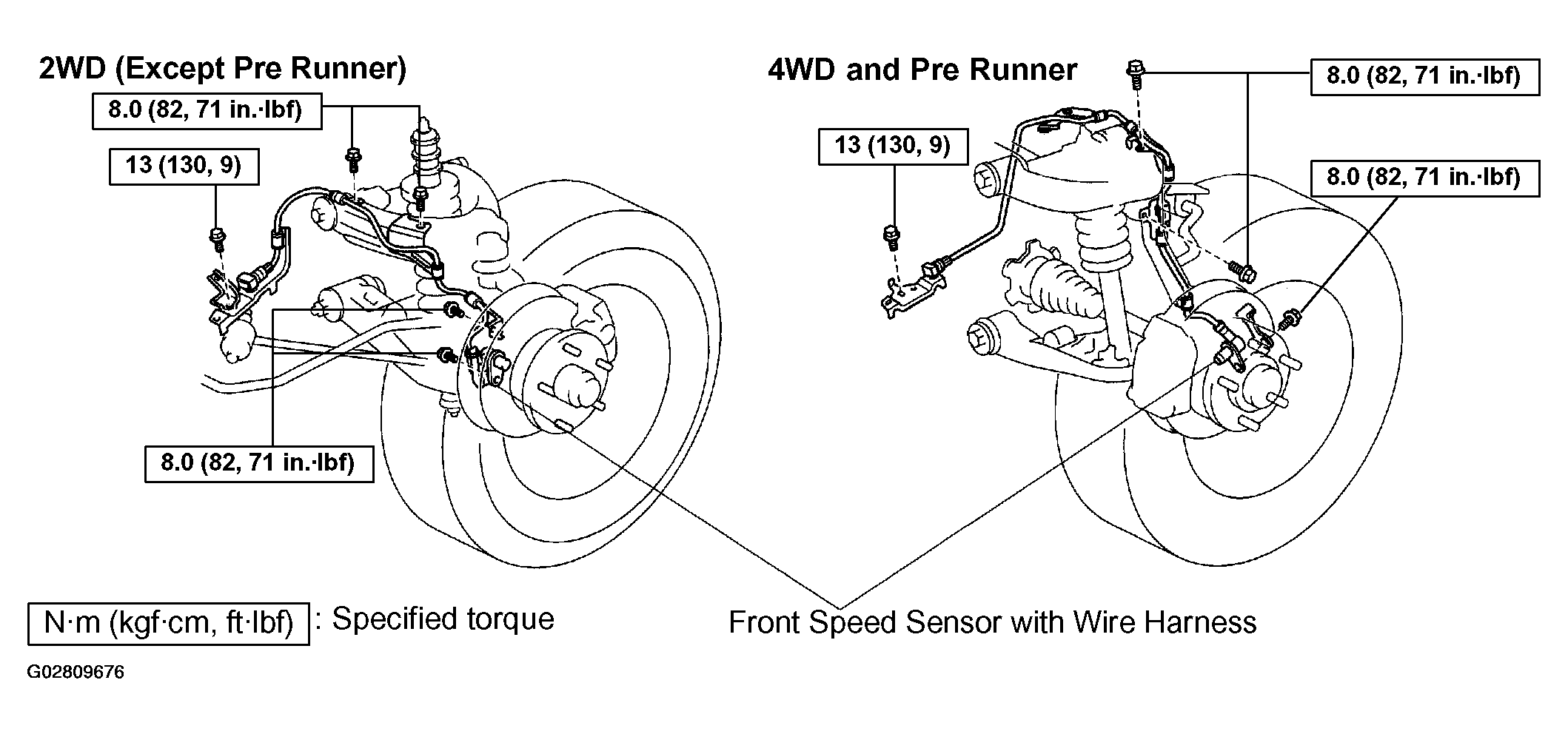

Fig 1: Locating Front Speed Sensor Components/Torque Specifications
G02809676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
