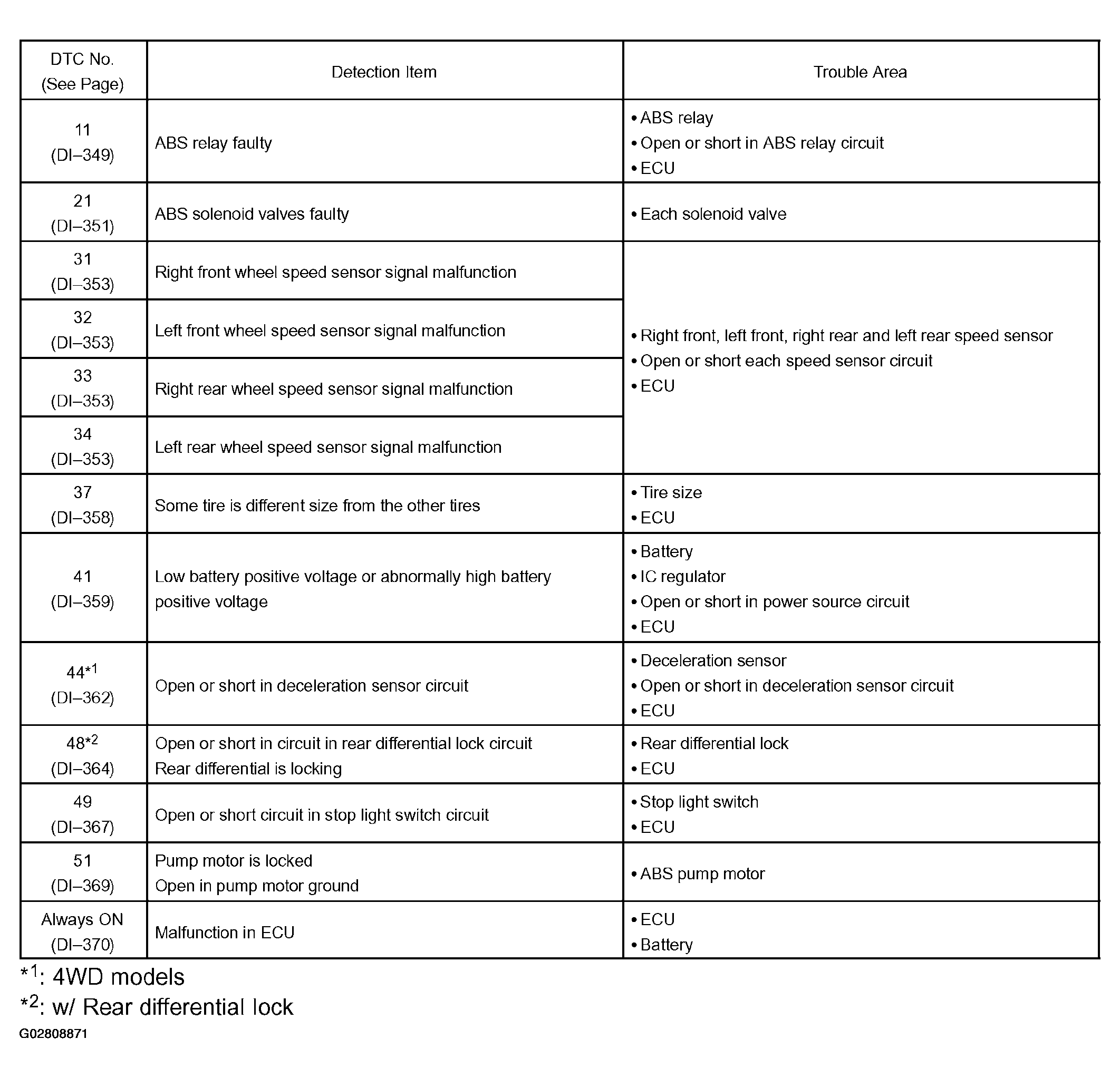

Diagnostic Trouble Code Chart
NOTE:
- Using SST 09843-18020, connect the terminals Tc and E1 .
- If a malfunction code is displayed during the DTC check, check the circuit listed that the code. For details of each code, turn to the page referred to under the "See page" for respective "DTC No." in the DTC chart.
