Abs Actuator: Components

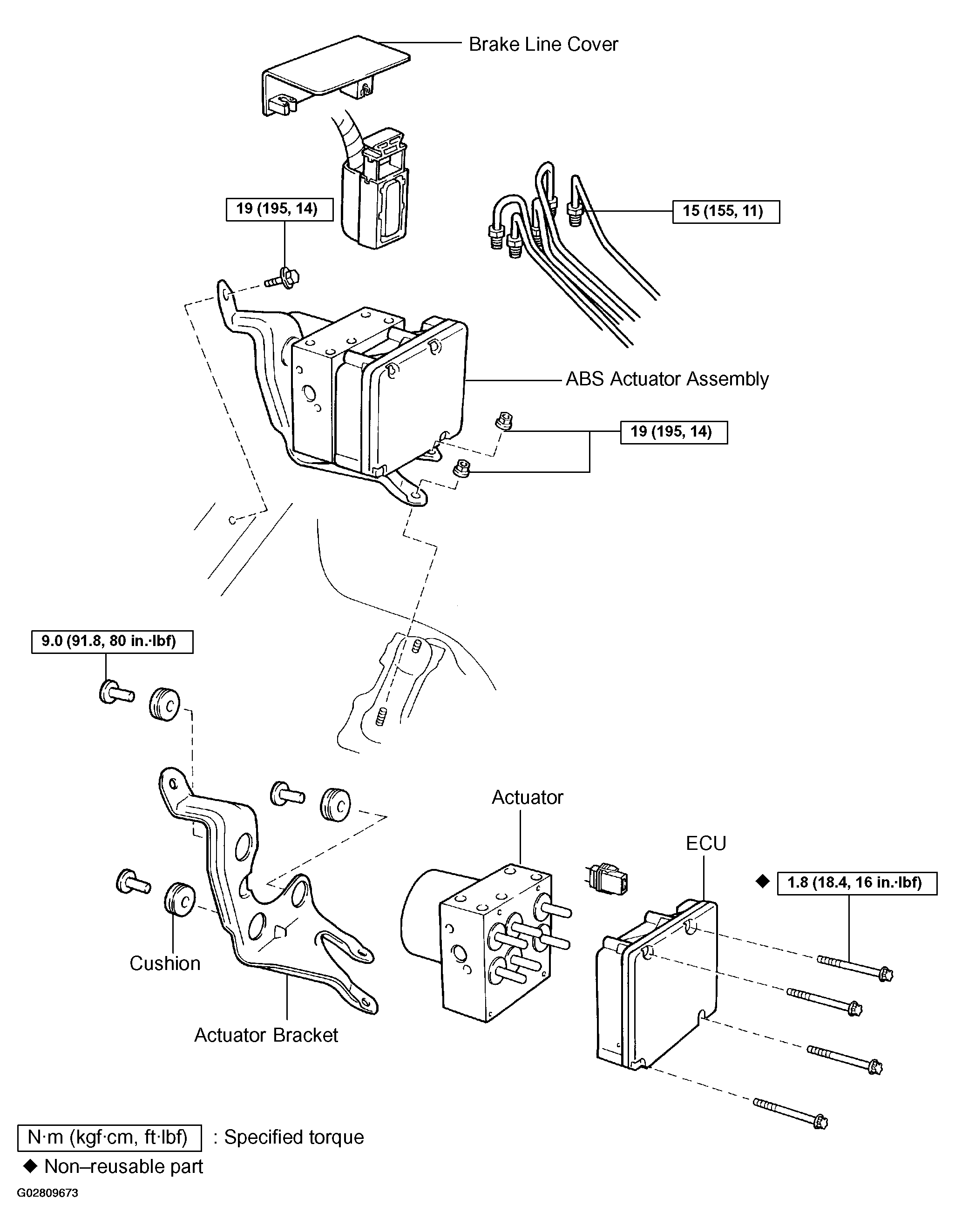

Fig 1: Exploded View Of ABS Actuator Assembly And Torque Specifications

G02809673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
