Interior Light
NOTE:
Interior light may also be referred to as dome light or room light.
- Interior light is located at rear of headliner. See Figure. Remove light assembly and disconnect electrical connector.

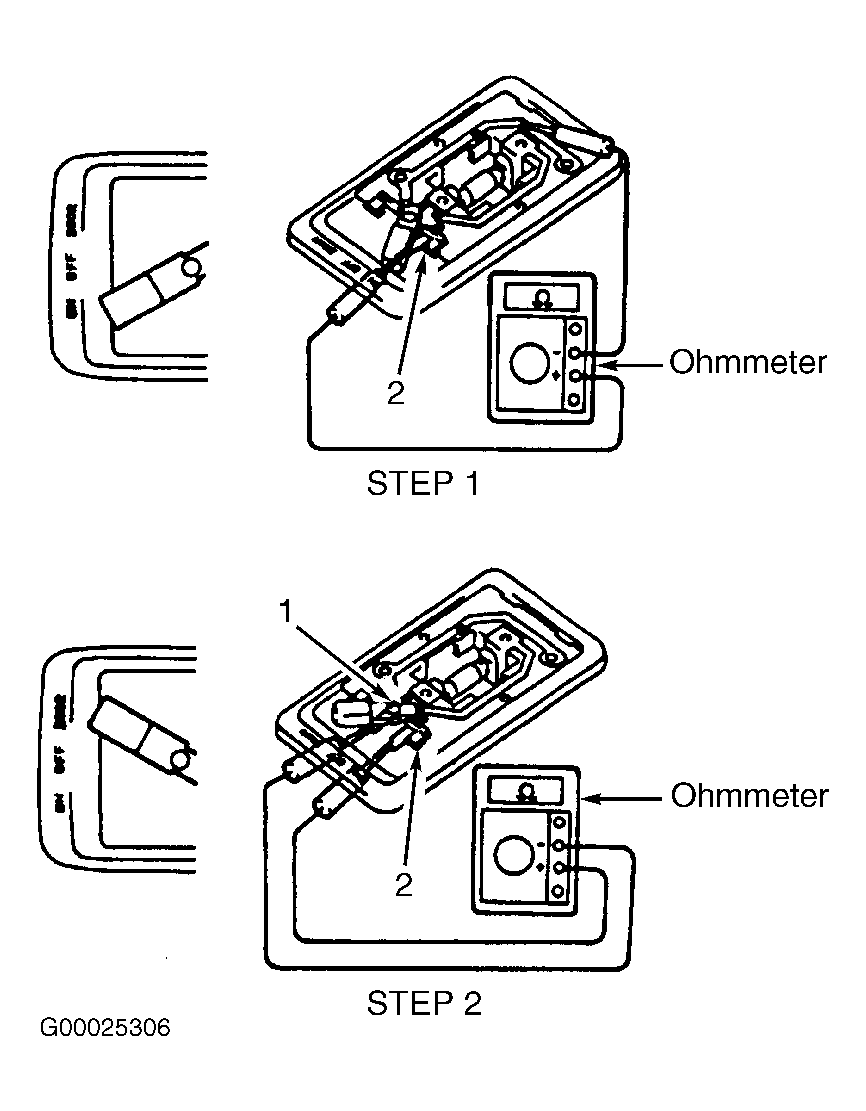

- Using ohmmeter, check that continuity exists between body ground and terminal No. 2 on light assembly with light switch in ON position. Perform STEP 1 in illustration. See Fig 1.
- Using ohmmeter, check that continuity exists between terminals No. 1 and 2 on light assembly with light switch in DOOR position. Perform STEP 2 in illustration. See Fig 1. Replace switch if continuity does not exist.
