Steering Cable Angle Sensor Calibration (ST002-01)

WARNING: This page is about the Sienna CE, which is a different variant/trim than selected.
Publication date: 2001-06-15
Reference number: ST002-01

STEERING CABLE ANGLE SENSOR CALIBRATION

STEERING CABLE ANGLE SENSOR CALIBRATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): ST002-01, Date of Issue:  June 15, 2001
TOYOTA: 2001 Sienna (with VSC)
COPYRIGHT: © 2018 Toyota, USA License Agreement TMS1002

STEERING CABLE ANGLE SENSOR CALIBRATION

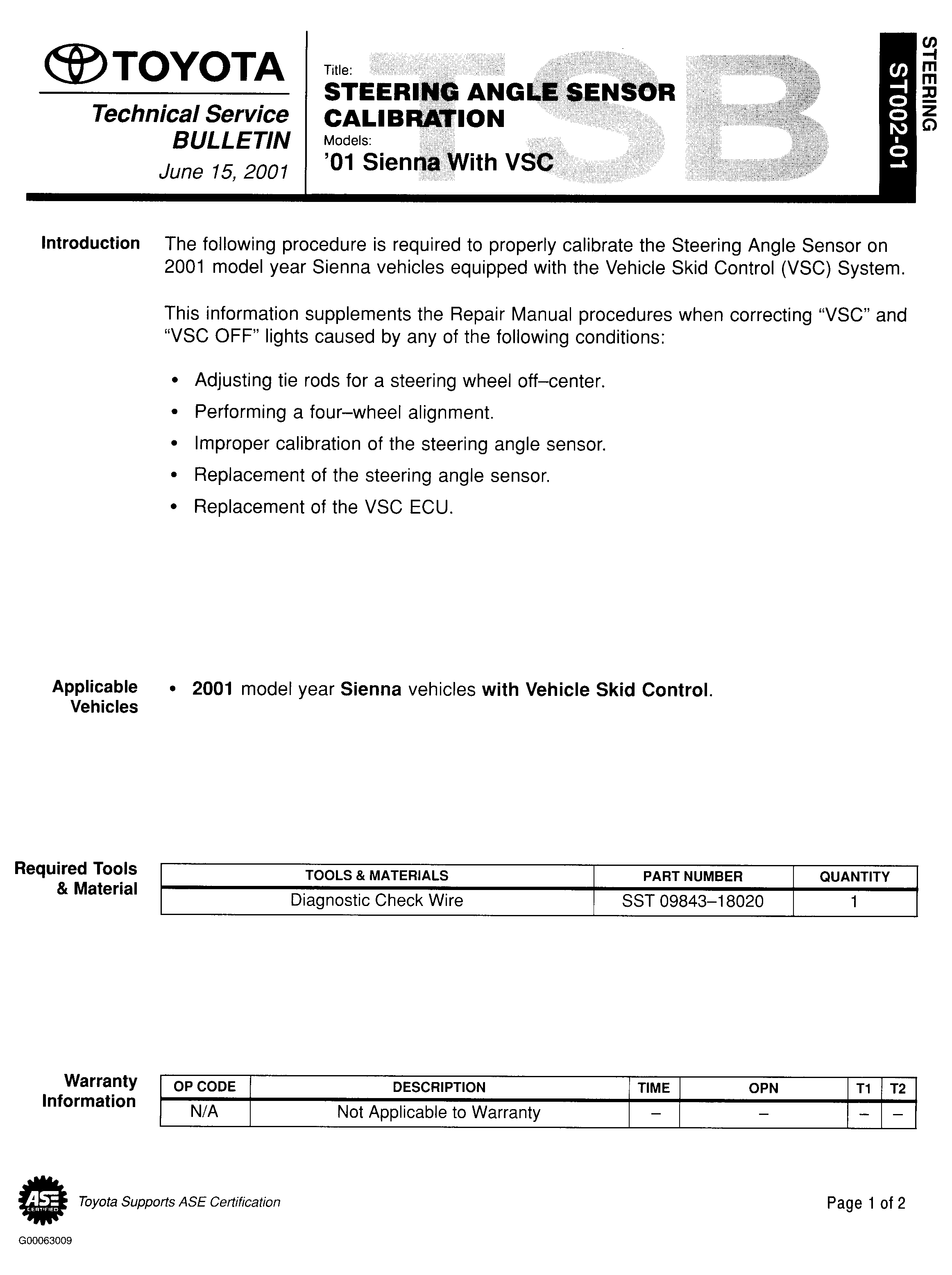

Fig 1: Page 1 of Bulletin
G00063009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

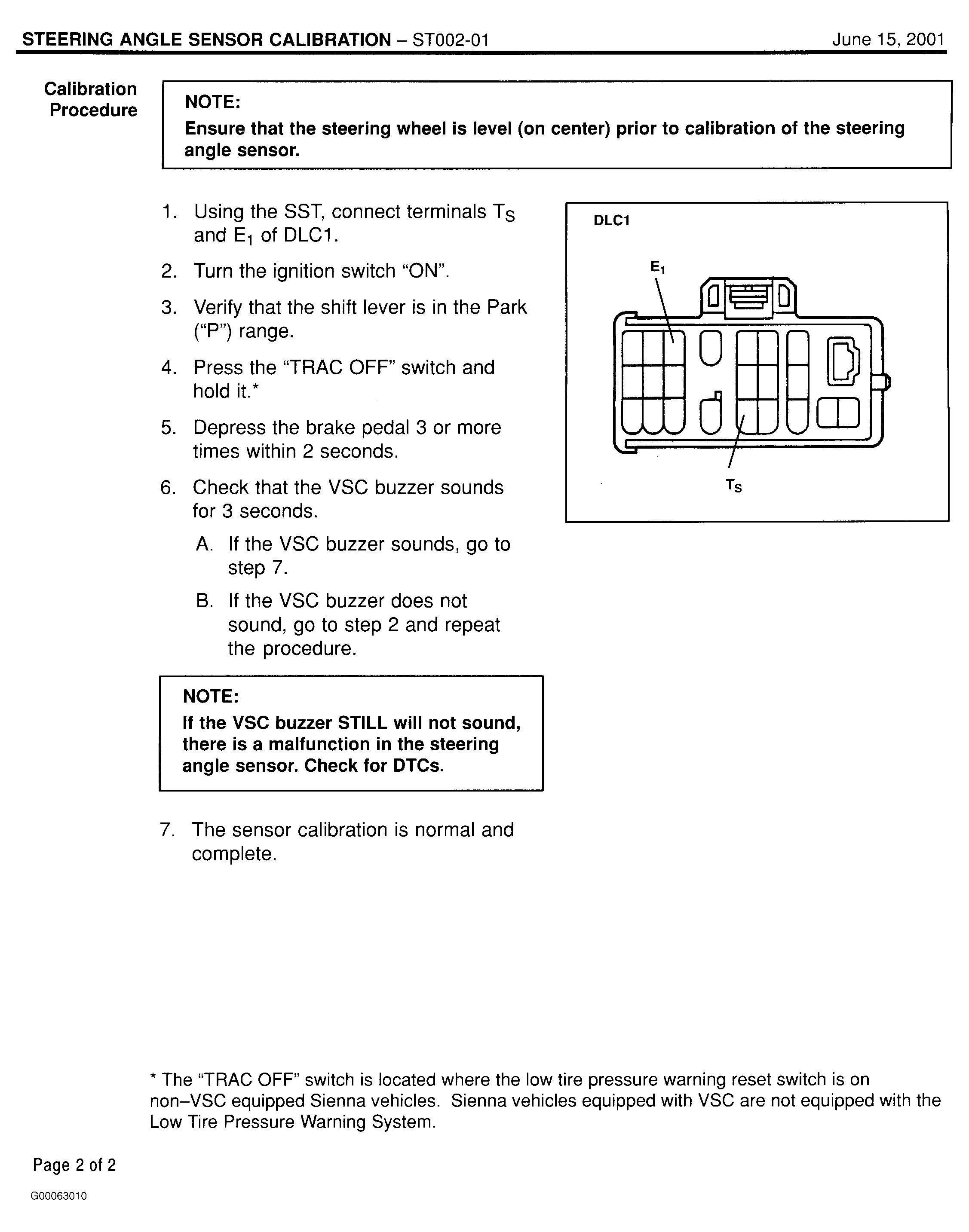

Fig 2: Page 2 of Bulletin
G00063010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
