Trouble Shooting: 4RUNNER

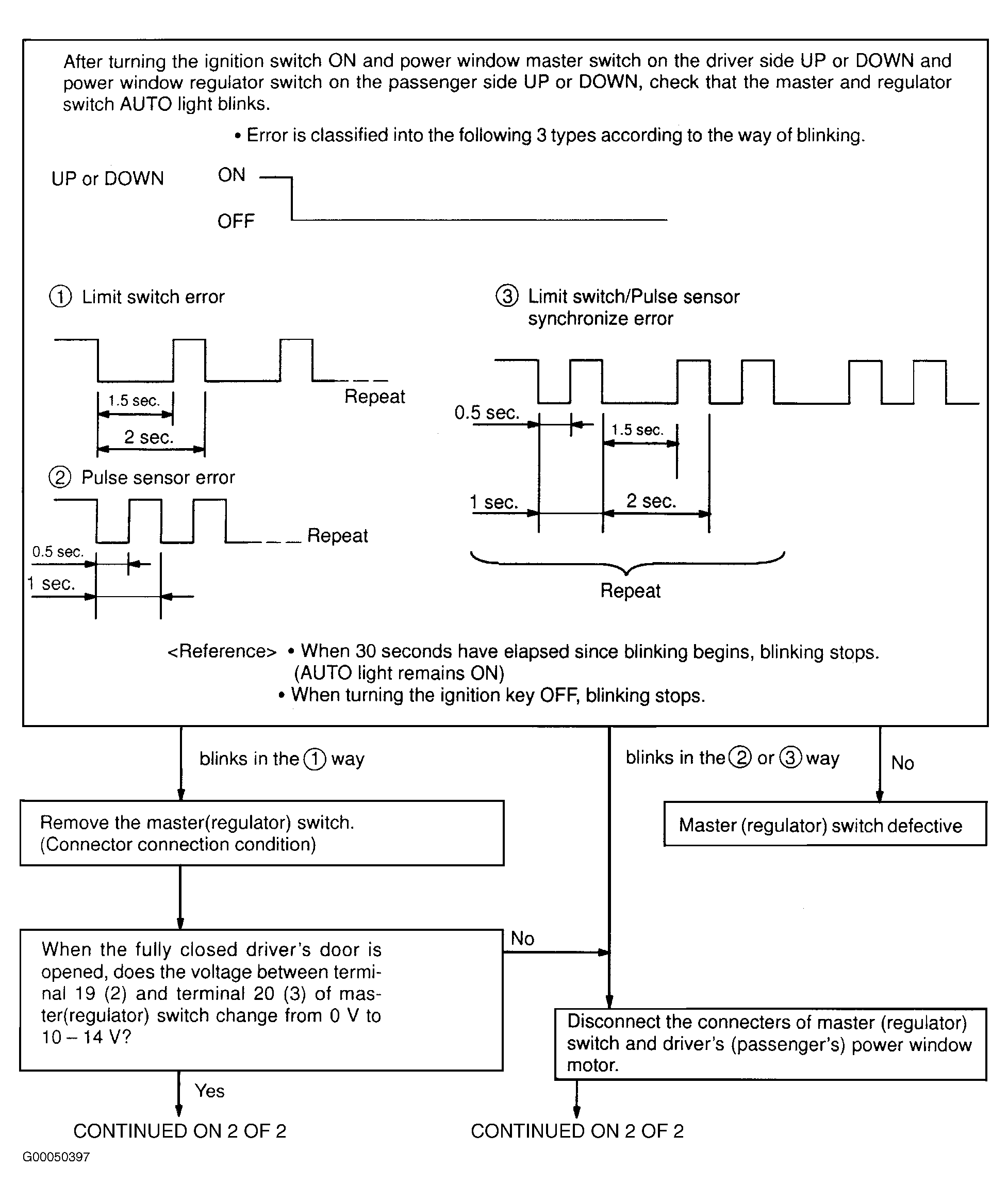

Fig 1: Test 1: One Touch Power Window Does Not Move Up & Down (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

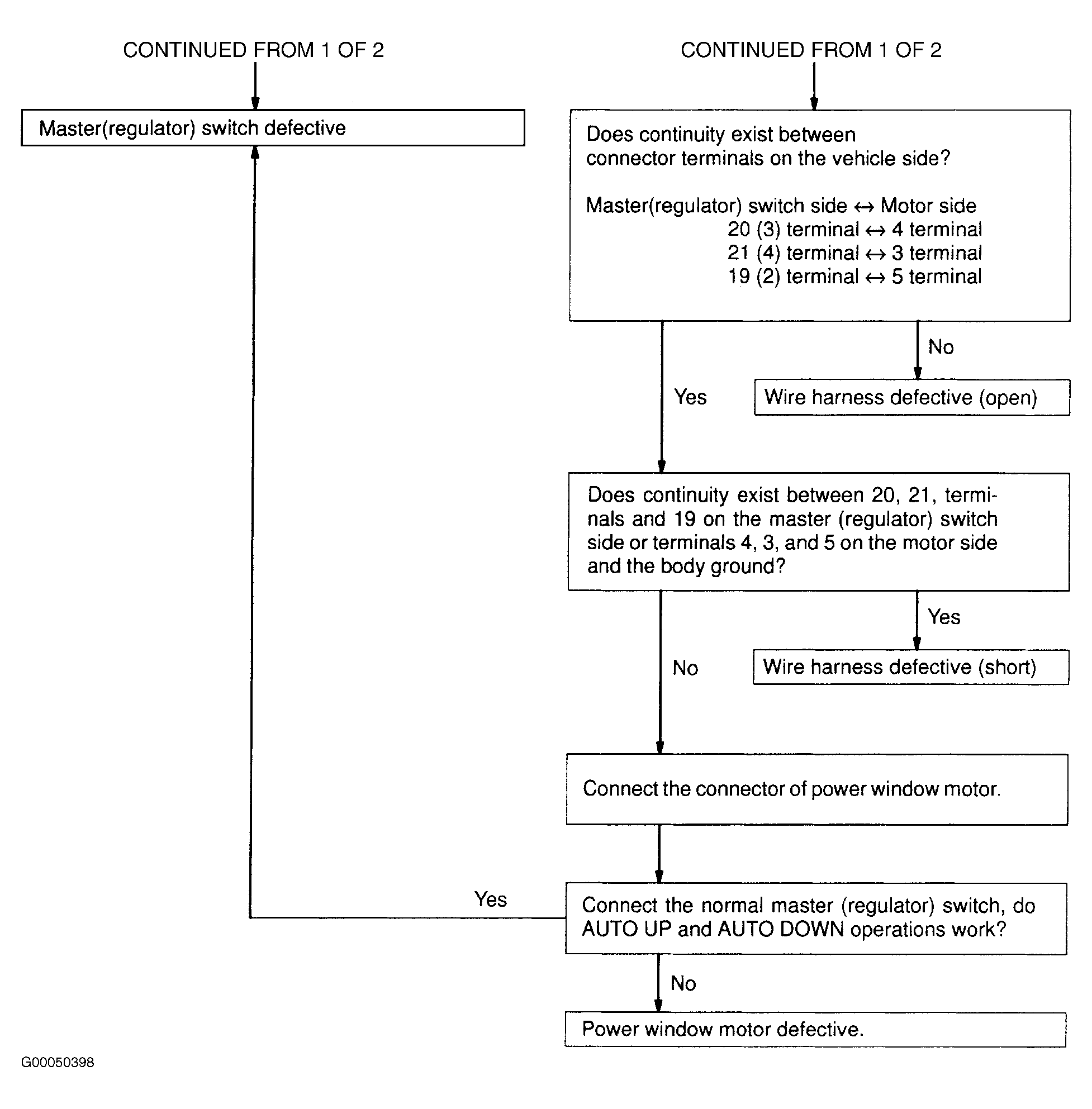

Fig 2: Test 1: One Touch Power Window Does Not Move Up & Down (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

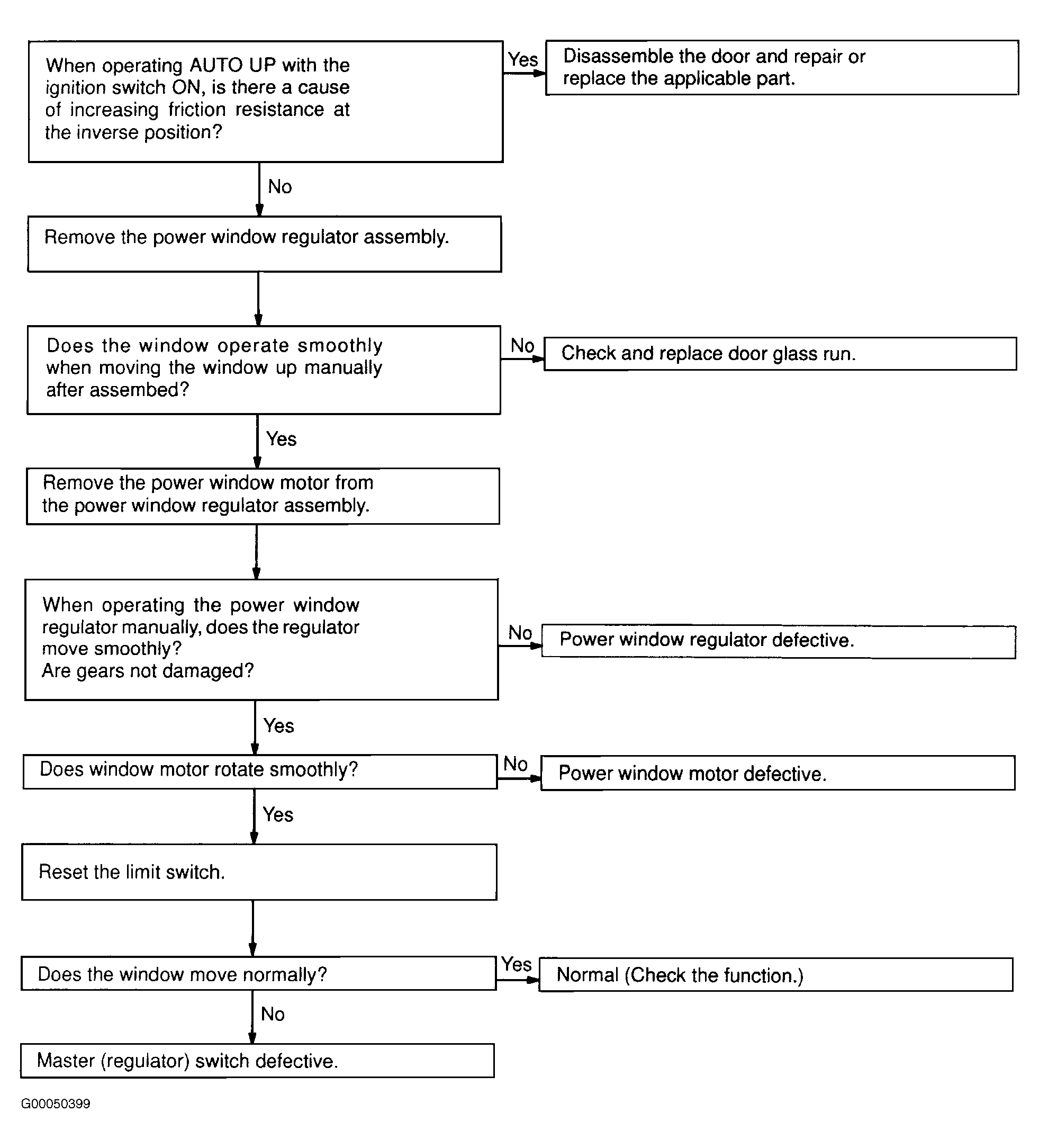

Fig 3: Test 2: Power Window Moves Down During AUTO UP Operation

Fig 4: Test 3: DOWN Operation Does Not Function With Object Caught In Window
