Rear Washer Motor

Rear washer motor is located on bottom of washer fluid reservoir at passenger's side front corner of engine compartment. See Fig 1. Disconnect electrical connector at rear washer motor.
Using jumper wires, connect positive battery terminal to terminal No. 2 and negative battery terminal to terminal No. 1 on rear washer motor. See Fig 2. DO NOT connect jumper wires for more than 20 seconds or rear washer motor may be damaged. Check that rear washer motor operates. Disconnect jumper wires. Replace rear washer motor if motor does not operate.

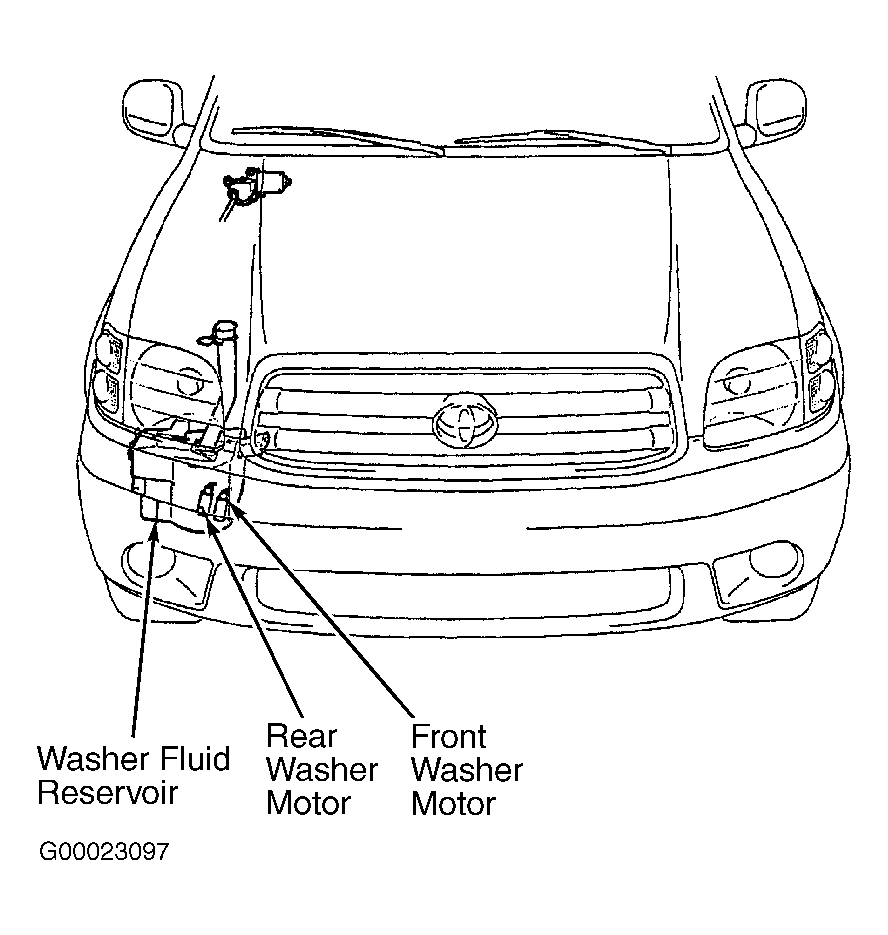

Fig 1: Locating Rear Washer Motor & Washer Fluid Reservoir
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Rear Washer Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
