Luggage Compartment Light

  1. Luggage compartment light is located on inside of back (rear liftgate) door. See Figure. Remove lens from luggage compartment light.
  2. Place switch on luggage compartment light in ON position. Using ohmmeter, check that continuity exists between body ground and terminal No. 2. Perform STEP 1 in illustration. See Fig 1.
  3. Place switch on luggage compartment light in DOOR position. Using ohmmeter, check that continuity exists between body terminals No. 1 and 2. Perform STEP 2 in illustration. See Fig 1. Replace luggage compartment light if continuity is not as specified.

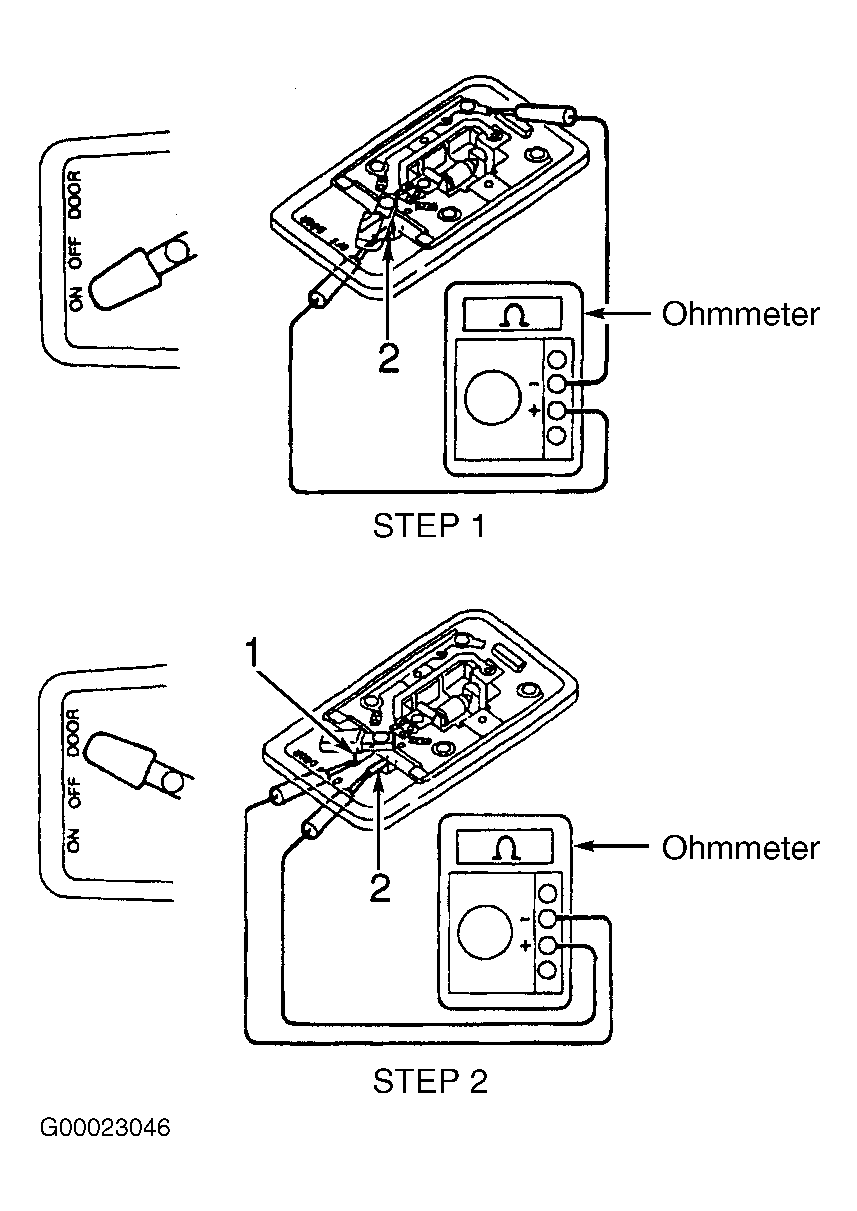

    Fig 1: Testing Luggage Compartment Light
    G00023046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
